To mount the camera on an eyepiece and connect the video cable to a high-definition monitor.

Requires connector code 29601. Camera sensor: 1/3 CCD
Resolution: 480 lines
Head dimensions: 38 x 40 x 70 mm
Power supply: 230 V 5060 Hz
Composite video RCA output, cable 3 m

It allows the GIMA colposcope to be connected to a C-mount camera.

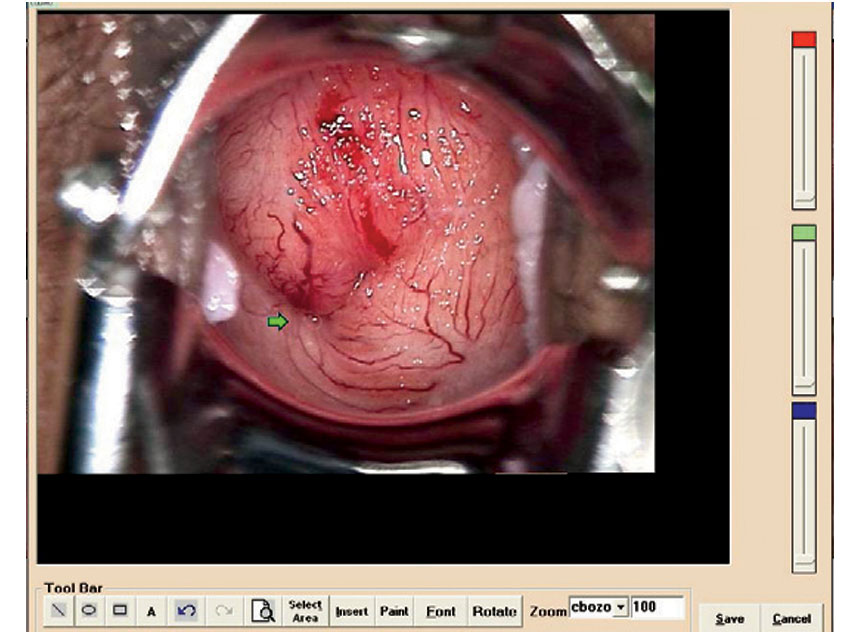

Powerful tool for gynaecologists to manage not only videos, images, clinical data and patient details, but also to provide them with an opportunity to store, edit, burn data onto CDs or DVDs, print detailed reports and build graphs for presentations at conferences, seminars, etc.
Foot control for capturing and saving images. Multilingual software (GB, ES, IT, DE, FR, PT).

Compatible with Windows 7 (64bit) / XP / Vista Operating Systems.
Easy installation and maintenance.
Password-protected login to ensure privacy.
The software features high-level live recording and captures high-definition images simultaneously with one click.
The software allows you to perform various types of video-olposcopy producing clippings, films and images that can be used for reports and teaching material.
The software allows the printing of reports with their results and details, useful for future patient follow-up.
Comparison mode with linked images.
Forensic examination and sexual abuse.
Cryosurgery report.
Representation of statistical data by means of graphs.
Diagostic report with multi-format images 1234.
Hammond graph (biopsy graph).
Marking and highlighting.

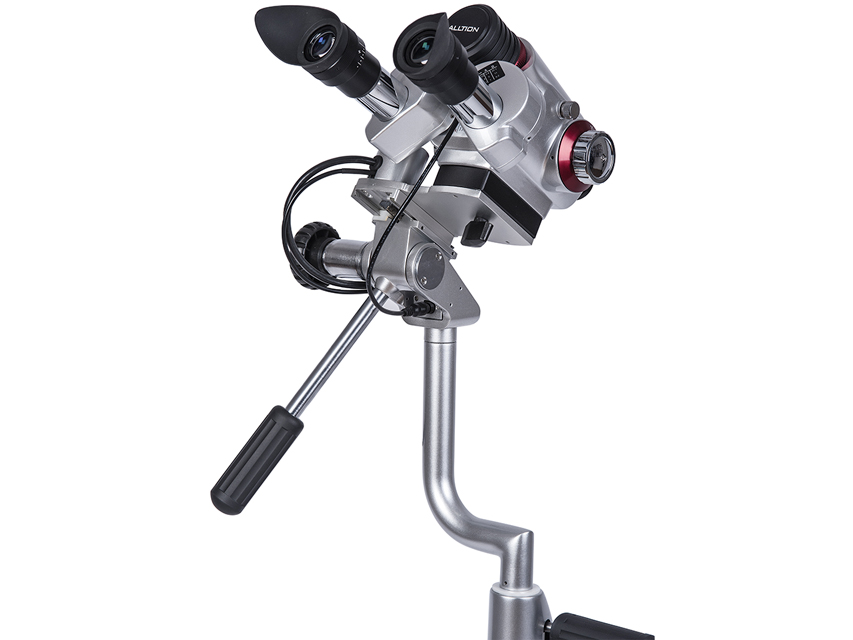

AC2311DA L-ARM LED COLPOSCOPE WITH CAMERA

Top-level optical features
1 high resolution and excellent contrast
2 faithful image reproduction in 3 dimensions
3 large depth of field
4 wide field of view

The apochromatic optics effectively corrects the chromatic aberration of three types of coloured light.
It ensures the reduction and saturation of the image colour and improves the resolution, contrast and depth of the image.

3 magnifications (3.75X 7.5X 15X)
Provides a wide range of magnifications and a wide selection from an overview down to the smallest details, for precise examinations and treatments.

Two optical circles provide rapid size or tissue measurement

Integrated green filter
Can help recognise blood vessels

LED illumination
The coaxial LED illuminator provides white light similar to sunlight to reveal true colours. Bulb life of over 10,000 hours/10 years for long-lasting effectiveness. Saves on bulbs and electricity.

Built-in camera
Images from the built-in camera can be transferred directly to a monitor, TV set or computer with a USB socket, or stored on a hard disk.

Full HD HDMI output (1920x1080 p)

Ergonomic design ensures durable, precise and convenient operation

Supplied fully assembled and ready to use, with manual in GB, FR, IT. Total magnification: 3.75X, 7.5X, 15X, focal length 300 mm
Field of view: Ø 79 mm, 39 mm, 19 mm
Depth of field: 4.5 mm, 1.13 mm, 0.76 mm
Light intensity: >25,000 LUX
Working height in mm: 950 to 1150
Single adjustable eyepieces

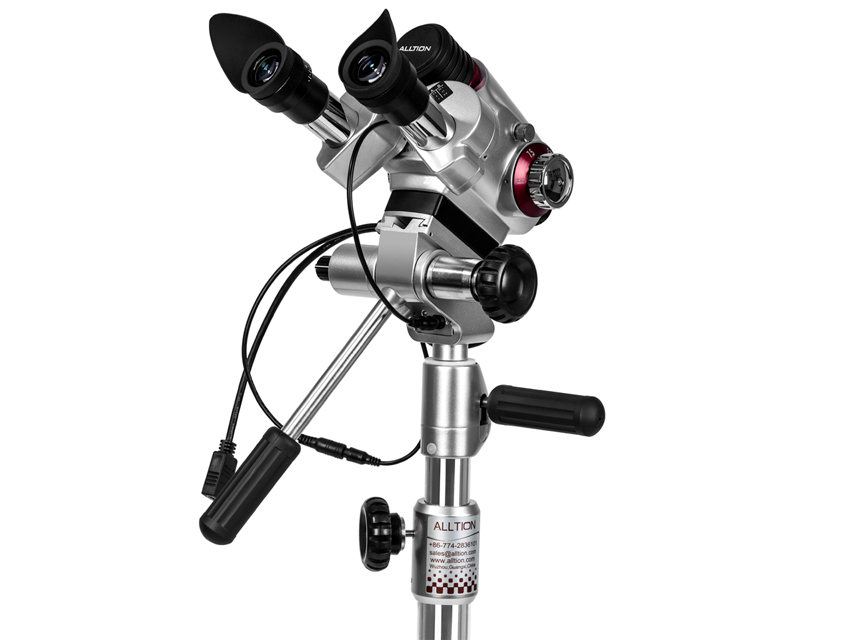

AC2311 LED COLPOSCOPE WITH VIDEO CAMERA

Top-level optical features
1 high resolution and excellent contrast
2 faithful image reproduction in 3 dimensions
3 large depth of field
4 wide field of view

The apochromatic optics effectively corrects the chromatic aberration of three types of coloured light.
It ensures the reduction and saturation of the image colour and improves the resolution, contrast and depth of the image.

3 magnifications (3.75X 7.5X 15X)
Provides a wide range of magnifications and a wide selection from an overview down to the smallest details, for precise examinations and treatments.

Two optical circles provide rapid size or tissue measurement

Integrated green filter
Can help recognise blood vessels

LED illumination
The coaxial LED illuminator provides white light similar to sunlight to reveal true colours. Bulb life of over 10,000 hours/10 years for long-lasting effectiveness. Saves on bulbs and electricity.

Built-in camera
Images from the built-in camera can be transferred directly to a monitor, TV set or computer with a USB socket, or stored on a hard disk.

Full HD HDMI output (1920x1080 p)

Ergonomic design ensures durable, precise and convenient operation

Supplied fully assembled and ready to use, with manual in GB, FR, IT. Total magnification: 3.75X, 7.5X, 15X, focal length 300 mm
Field of view: Ø 79 mm, 39 mm, 19 mm
Depth of field: 4.5 mm, 1.13 mm, 0.76 mm
Light intensity: >25,000 LUX
Working height in mm: 950 to 1250
Single adjustable eyepieces

SMART OXYGEN CONCENTRATOR 5 l

Compact and ultra-quiet oxygen concentrators for home use.
They provide a high concentration of oxygen through the nasal cannula.
Continuous operation.
Class II, Type BF.

Supplied with filter and humidifier bottle. Flow range: 0.5 ~ 5 l/min
Oxygen concentration: 95,5 87 %.
Output pressure: 40 ~ 70 kPa
Input power: 350 W
Noise level (whole unit front): =48 =52 dBA
Weight dimensions: 39x24xh 50 cm 16 kg
Operating voltage: 2

Replacement bottle for humidifiers.

SMART OXYGEN CONCENTRATOR 3 l

Compact and ultra-quiet oxygen concentrators for home use.
They provide a high concentration of oxygen through the nasal cannula.
Continuous operation.
Class II, Type BF.

Supplied with filter and humidifier bottle. Flow range: 0.5 ~ 3 l/min
Oxygen concentration: 93% ± 3%.
Output pressure: 20 ~ 50 kPa
Input power: 230 W
Noise level (whole unit front): 42 46 dBA
Weight dimensions: 39x24.5xh 50 cm 11.8 kg
Operating voltage: 23

RESPIRATE OXYGEN CONCENTRATOR 5 l

Compact, portable oxygen concentrator consisting of air compressor, molecular sieve adsorption tower, sensor and flow regulator.
The unit uses Pressure Swing Adsorption (PSA) technology to directly concentrate highly concentrated medical oxygen from the air.
Lightweight, easy to use and safe.
Stable performance and low noise.
Wide application in clinics, hospitals, oxygen bars, gyms, etc.
Supplied with humidifier bottle, power cord, nasal cannula and user manual (GB, FR*, IT, ES*, DE*) *only at www.gimaitaly.com

Dimensions: 508x260x h 530 mm.
Weight: 21 kg Max. flow rate: 5l/min
Flow range: 0.5~5 l/min
Oxygen concentration: 93% ±3%.
Output pressure: 20kPa~50kPa
Input power: 450VA
Noise level: =55dB(A)
Operating voltage: 220VCA ± 10%, 50Hz ±1 Hz
Protection type: Class II, Type

Humidifier bottle.
