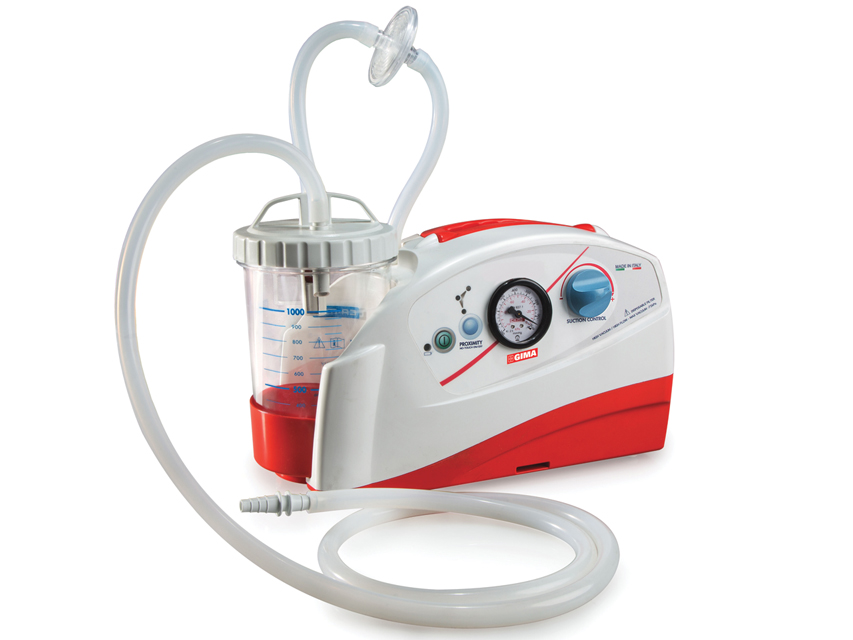

SUPERVEGA 118 CORDLESS VACUUM CLEANER

Supervega 118 and Supervega Evo are portable electric medical devices for suctioning nasal, oral and tracheal fluids in adults or children.
Two or three modes of operation: 100240 V power supply (28183 and 28241 only), 12 V car adapter or internal rechargeable battery.

Equipped with a long-life brushless motor that eliminates all odours and carbon residue.

PROXIMITY function: THE DEVICE TURNS ON/OFF WITHOUT TOUCHING IT
This function prevents and avoids the risk of cross-contamination between patients.

Different vessel types
Standard Makrolon® in autoclavable polycarbonate (121°C), optional disposable FLOVAC® or APEC® in autoclavable polycarbonate (143°C).

Compliant with EN 60601111 for use in home care, degree of protection IP22. - Motor: oil-free, maintenance-free piston pump
- Power supply:
Internal rechargeable lithium battery (14.8 V 5.2 A) Autonomy 70 min
AC adapter (12 V 4 A)
AC/DC adapter 110240 V, 5060 Hz
- Max. vacuum (regulation Polycarbonate jar 1,000 ml with overflow valve
Anti-bacterial filter
Suction catheter
Silicone tubing set with conical connector
Universal adapter (100240V 50/60 Hz)
12V car adapter
User manual GB, FR, IT, DE, ES

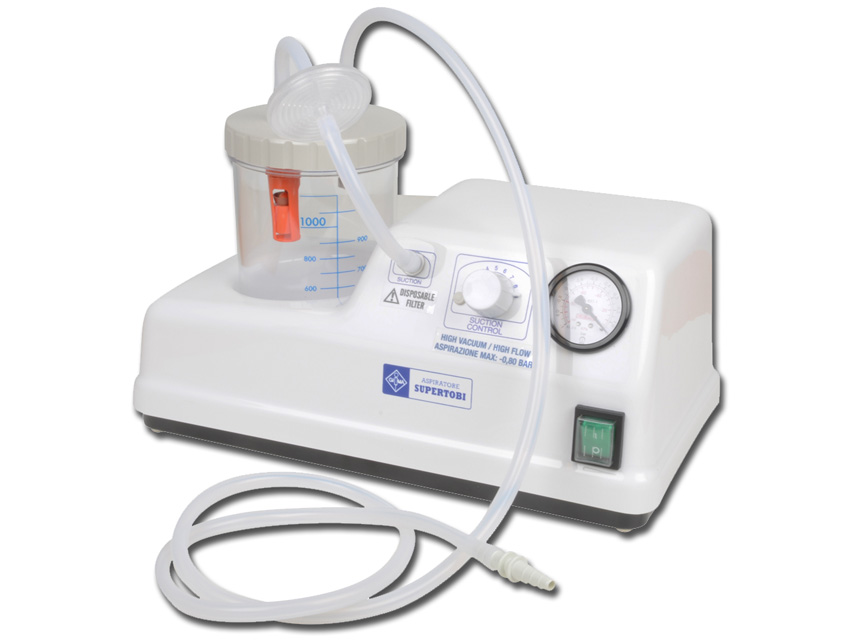

SUPER TOBI VACUUM CLEANER

Portable, particularly suitable for tracheotomies and minor surgery.
Continuously adjustable vacuum with inhaler.
Equipped with 1 litre unbreakable jar (2 litres optional), autoclavable at 120°C, with overflow valve.
Silicone connection tube.
ABS plastic box.
Italian production. - Power supply: 220230 V 50/60 Hz
- Absorption: 106 W
- Jar ml: 1000 ml
- Flow rate: 40 l/min
- Max. vacuum: 0.80 bar (600 mmHg)
- Operation (minutes): 120 ON / 60 OFF
- Dimensions (cm): 37 x 22 x h 21 cm
- Weight: 5.25 kg
- Standards: IEC 6011 - 1 litre jar with lid
- Antibacterial filter
- Suction catheter
- Silicone tubing set
- User manual GB, FR, IT, DE, ES

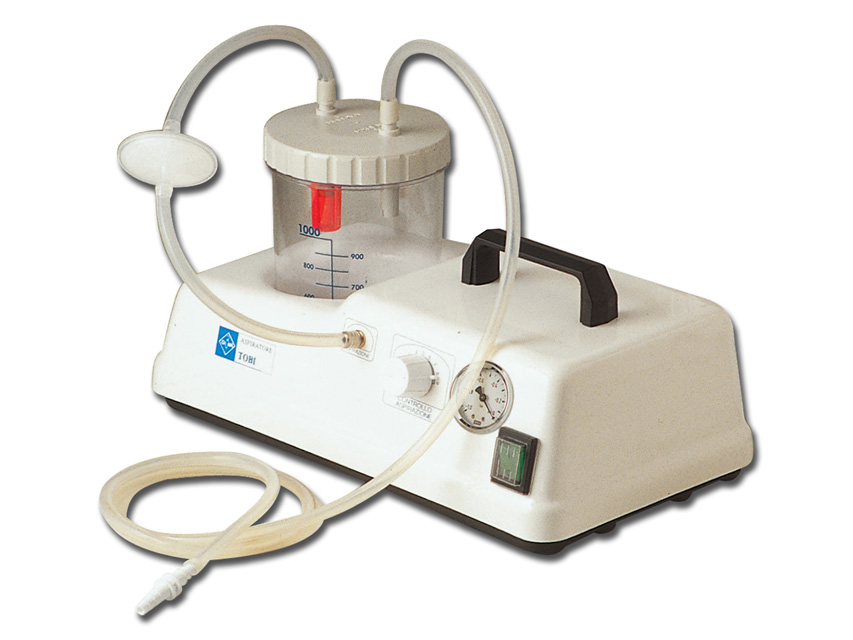

TOBI VACUUM CLEANER

Portable, particularly suitable for tracheotomies and minor surgery.
Continuously adjustable vacuum with inhaler.
Equipped with 1 litre unbreakable jar (2 litres optional), autoclavable at 120°C, with overflow valve.
Silicone connection tube.
ABS plastic box.
Italian production. - Power supply: 220230 V 50/60 Hz
- Power consumption: 184 W
- Jar ml: 1000 ml
- Flow rate: 18 l/min
- Max. vacuum: 0.75 bar (563 mmHg)
- Operation (minutes): 20 ON / 40 OFF
- Dimensions (cm): 37 x 22 x h 21 cm
- Weight: 3.5 kg
- Standards: IEC 6011 - 1 litre jar with lid
- Antibacterial filter
- Suction catheter
- Silicone tubing set
- User manual GB, FR, IT, DE, ES

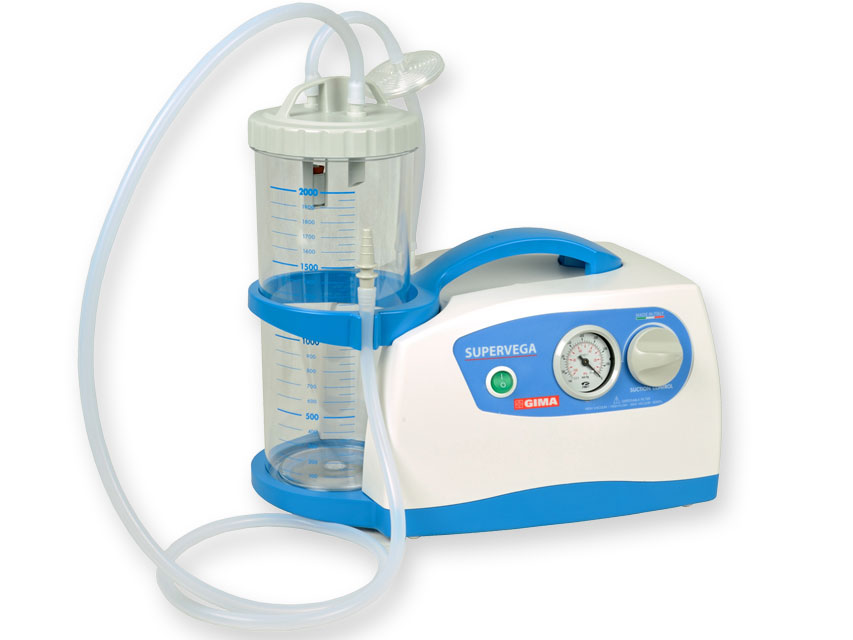

SUPER VEGA ASPIRATOR 2 l

Flow: 40 l/minute

A line of compact and reliable suction units created in style for minor surgery.
The quiet, maintenance-free high-flow pumps guarantee long life and robustness.
Recommended for nasal, oral or tracheal suction of liquids (mucus, phlegm, blood) in adults or children.
Equipped with instant adjustment of suction intensity, an unbreakable 1 l or 2 l Makrolon® container, autoclavable at 121°C, with a valve for safe control of the liquid level inside the container to prevent overflow.
Optional APEC® jar autoclavable at 143°C.
Electrical and thermal parts of the product are insulated.
Flovac® autoclavable and disposable collection systems: in addition to the ordinary autoclavable containers, a disposable collection system is now available consisting of a reusable rigid container and a hermetically sealed polyethylene disposable bag with a bacterial backflow preventer filter, functioning as an overflow valve. - Power supply:
220230 V / 5060 Hz
110127 V 60 Hz (on request)
- Power consumption: 110 VA
- Tank capacity: 2000 ml
- Flow rate: 40 l/minute
- Max. vacuum: 0.80 bar (600 mmHg)
- Operating cycle: continuous
- Noise level: 60.5 dBA
- Measurements: - Autoclavable vessel with overflow valve
- Anti-bacterial and hydrophobic filter
- Silicone tubing 6 x 10 mm
- Conical connector for catheters
- User manual in 6 languages (GB, FR, DE, IT, ES, PT)

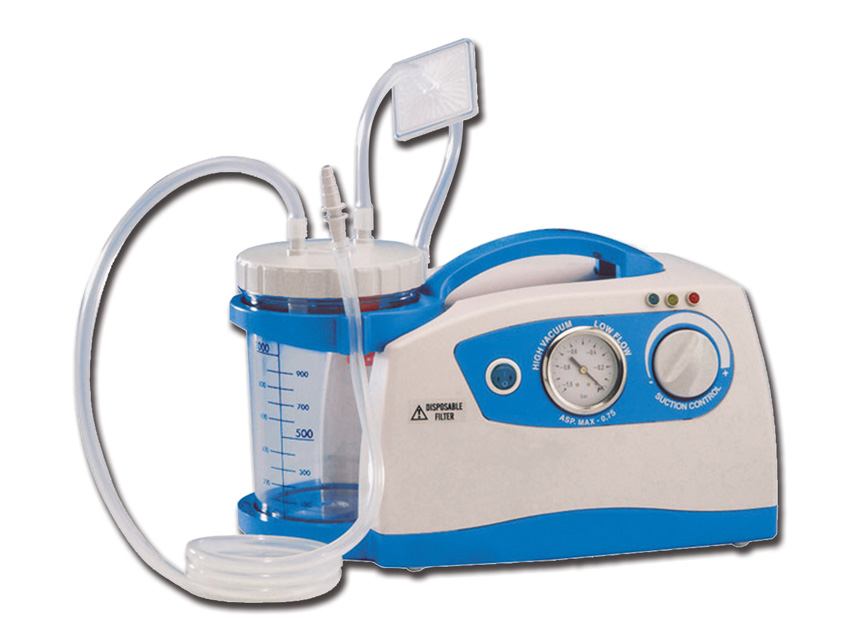

SUPER VEGA ASPIRATOR 1 l 110 V VERSION

Flow: 40 l/minute

Line of compact and reliable suction units created in style for minor surgery.
The quiet, maintenance-free high-flow pumps guarantee long life and robustness.
Recommended for nasal, oral or tracheal suction of liquids (mucus, phlegm, blood) in adults or children.
Equipped with instant adjustment of suction intensity, an unbreakable 1 l or 2 l Makrolon® container, autoclavable at 121°C, with a valve for safe control of the liquid level inside the container to prevent overflow.
Optional APEC® jar autoclavable at 143°C.
Electrical and thermal parts of the product are insulated.
Flovac® autoclavable and disposable collection systems: in addition to the standard autoclavable containers, a disposable collection system is now available consisting of a reusable rigid container and a hermetically sealed polyethylene disposable bag with a bacterial backflow preventer filter, functioning as an overflow valve. - Power supply: 110V 60 Hz
- Absorption: 110 VA
- Jar capacity: 1000 ml
- Flow rate: 40 l/minute
- Max. vacuum: 0.80 bar (600 mmHg)
- Operating cycle: continuous
- Noise level: 60.5 dBA
- Dimensions: 35 x 21 x 18 cm
- Weight: 3.6 kg
- Standards: 93/42/EC - autoclavable vessel with overflow valve
- Anti-bacterial and hydrophobic filter
- Silicone tubing 6 x 10 mm
- Conical connector for catheters
- User manual in 6 languages (GB, FR, DE, IT, ES, PT)

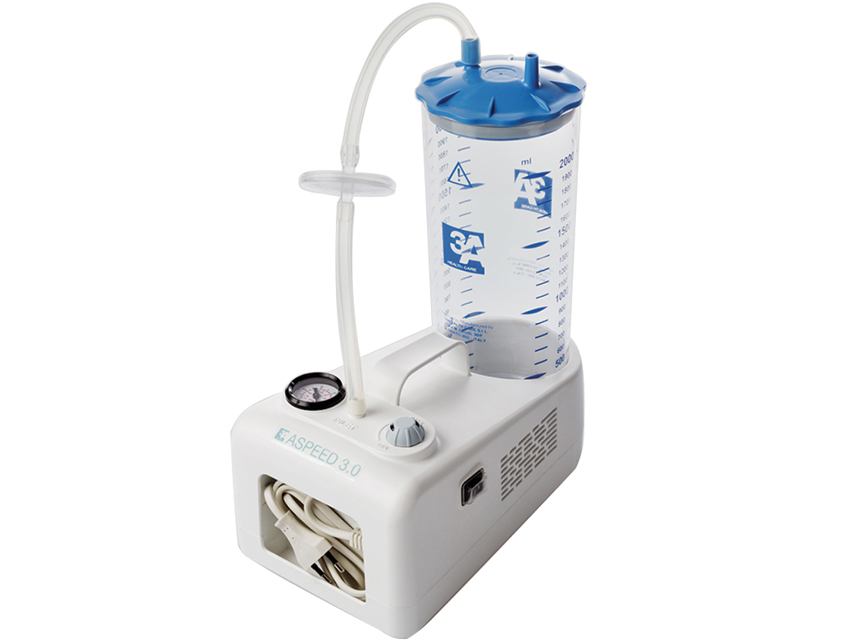

ASPIRATOR ASPEED 3.0 16 l/min 2 l

Portable, compact, reliable aspirator, ideal for minor surgery.
Electric piston medical device with continuous cycle.
High vacuum, low flow.
Neither maintenance nor lubrication required.
Italian manufacture. Operating voltage: 230 V 50 Hz
Power consumption: max. 150 VA
Jar capacity: 1 l (28279) or 2 l (28319)
High vacuum: low flow
Air flow: 16 l/min
Adjustable vacuum level: 0÷ 0.65 bar (0÷ 65 kPa)
Dimensions: 300x170xh 260 mm
1,000 cc or 2,000 cc autoclavable polycarbonate jar with safety valve (28258 or 28294)
Disposable bag 1 l (28259) only for 28258
Hydrophobic antibacterial filter
Sterile disposable cannula
Sterile manual flow regulator
Tubing set i

Durable, high-performance, continuous-cycle electric piston vacuum cleaners.
Equipped with a thermal safety protector, they require no maintenance or lubrication.
An anti-reflux valve prevents liquids or aspirated secretions from reaching the suction pump and damaging it.
Ideal for outpatient use.
Made in Italy.

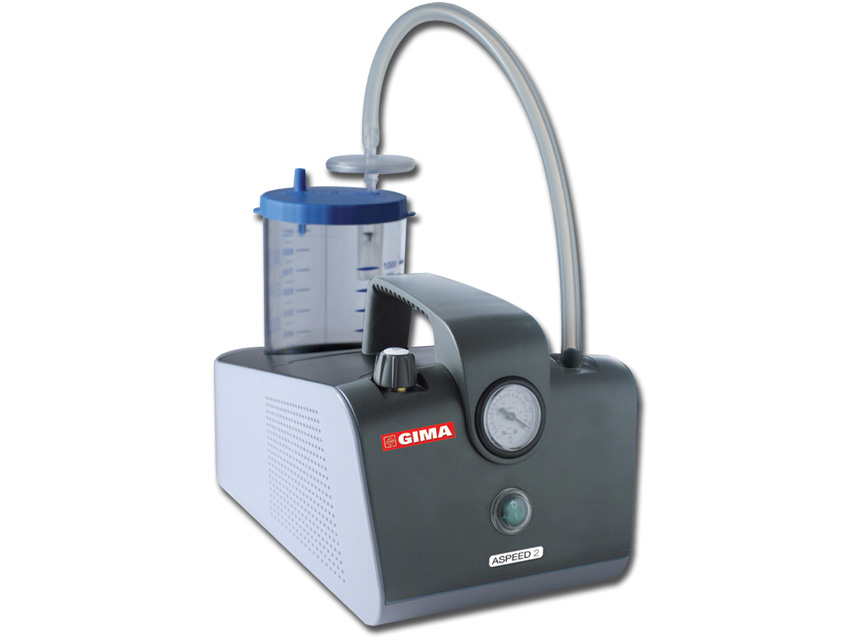

- Aspeed 2 15 l
- Power supply: 230 V
- Pump: single
- Construction: plastic Operating voltage: 230 V50 Hz
Jar capacity: 1 l
High vacuum: Low flow
Air flow: 15 l/min
Adjustable vacuum level: 0÷ 0.85 bar (0÷ 85 kPa)
Weight: 2.7 kg
Structure material: plastic
Noise level: 63 dBA Autoclavable 1,000 cc polycarbonate jar with anti-reflux safety valve
Disposable bag 1 l
Hydrophobic antibacterial filter
Sterile disposable cannula
Sterile manual flow regulator
Non-toxic, sterilisable silicone tubing set
Ca

Durable, high-performance, continuous-cycle electric piston vacuum cleaners.
Equipped with a thermal safety protector, they require no maintenance or lubrication.
An anti-reflux valve prevents liquids or aspirated secretions from reaching the suction pump and damaging it.
Ideal for outpatient use.
Made in Italy.

- Aspeed 2 22 l
- Power supply: 230 V
- Pump: double
- Construction: plastic Operating voltage: 230 V50 Hz
Jar capacity: 1 l
High vacuum: Strong flow
Air flow: 22 l/min
Adjustable vacuum level: 0÷ 0.85 bar (0÷ 85 kPa)
Weight: 3.4 kg
Structure material: plastic
Noise level: 63 dBA Autoclavable 1,000 cc polycarbonate jar with anti-reflux safety valve
Disposable bag 1 l
Hydrophobic antibacterial filter
Sterile disposable cannula
Sterile manual flow regulator
Non-toxic, sterilisable silicone tubing set
Ca

Durable, high-performance, continuous-cycle electric piston vacuum cleaners.
Equipped with a thermal safety protector, they require no maintenance or lubrication.
An anti-reflux valve prevents liquids or aspirated secretions from reaching the suction pump and damaging it.
Ideal for outpatient use.
Made in Italy.

- Aspeed 22 l
- Power supply: 230 V
- Pump: double
- Structure: metal Operating voltage: 230 V50 Hz
Jar capacity: 1 l
High vacuum: Low flow
Air flow: 22 l/min
Adjustable vacuum level: 0÷ 0.85 bar (0÷ 85 kPa)
Weight: 4.2 kg
Structure material: metal
Noise level: 63 dBA 1,000 cc autoclavable polycarbonate jar with anti-reflux safety valve
Disposable bag 1 l
Hydrophobic antibacterial filter
Sterile disposable cannula
Sterile manual flow regulator
Non-toxic, sterilisable silicone tubing set
Ca

Durable, high-performance, continuous-cycle electric piston vacuum cleaners.
Equipped with a thermal safety protector, they require no maintenance or lubrication.
An anti-reflux valve prevents liquids or aspirated secretions from reaching the suction pump and damaging it.
Ideal for outpatient use.
Made in Italy.

- Aspeed 15 l
- Power supply: 230 V
- Pump: single
- Structure: metal Operating voltage: 230 V50 Hz
Jar capacity: 1 l
High vacuum: Strong flow
Air flow: 15 l/min
Adjustable vacuum level: 0÷ 0.85 bar (0÷ 85 kPa)
Weight: 3.5 kg
Structure material: metal
Noise level: 53 dBA 1,000 cc autoclavable polycarbonate jar with anti-reflux safety valve
Disposable bag 1 l
Hydrophobic antibacterial filter
Sterile disposable cannula
Sterile manual flow regulator
Non-toxic, sterilisable silicone tubing set
Ca
