HOSPI PLUS Basic
- Autoclavable vessels: 2x4 l
- Foot pedal: NO
- Flow direction regulator (directs aspirated liquids towards one of the two vessels): NO

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overfill protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 90 l/min
Power supply: 385 VA
Noise level: 46.4 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC
Autoclavable jar 121°C with overflow valve: 2x4 l
Rings for adapting 5 l jars: NO
Safety container (220 ml): NO
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Connector with

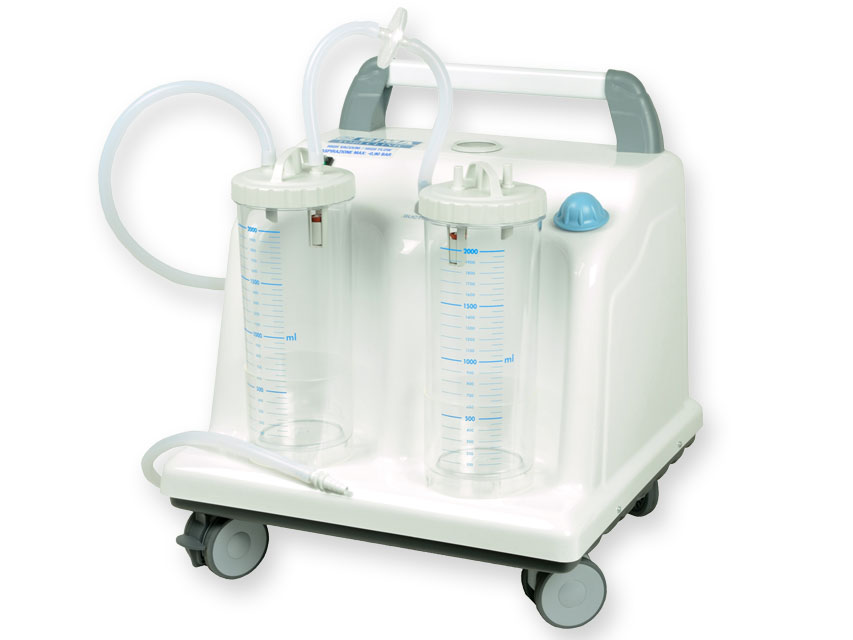

TOBI CLINIC surgical aspirator

- Jars: 2 x 2 l
- Power supply: 220230 V
- Model with foot pedal: no

Ideal for hospital use, they are made of ABS.
Four antistatic castors, two of which are locking, allow perfect mobility.
Equipped with vacuum indicator for suction control (1 bar), and 2 or 4 litre jars made from autoclavable makrolon, graduated to 200/400 ml,
each jar contains a double safety valve.
The piston pumps require no lubrication or maintenance. Equipped with antibacterial filter.
Model available with foot pedal and different power supply (110 V).

User manual in GB, FR, DE, IT, ES.
Italian manufacture. - Dimensions: 46 x 42 x h 60 cm
- Weight: 13 kg
- Power supply: 220230 V 5060 Hz
- Max. vacuum: 0.90 bar (675 mmHg)
- Operating cycle: continuous
- Flow rate: 60 l/min
- Standards: CEI 625 (IEC 6011) 93/42 EEC

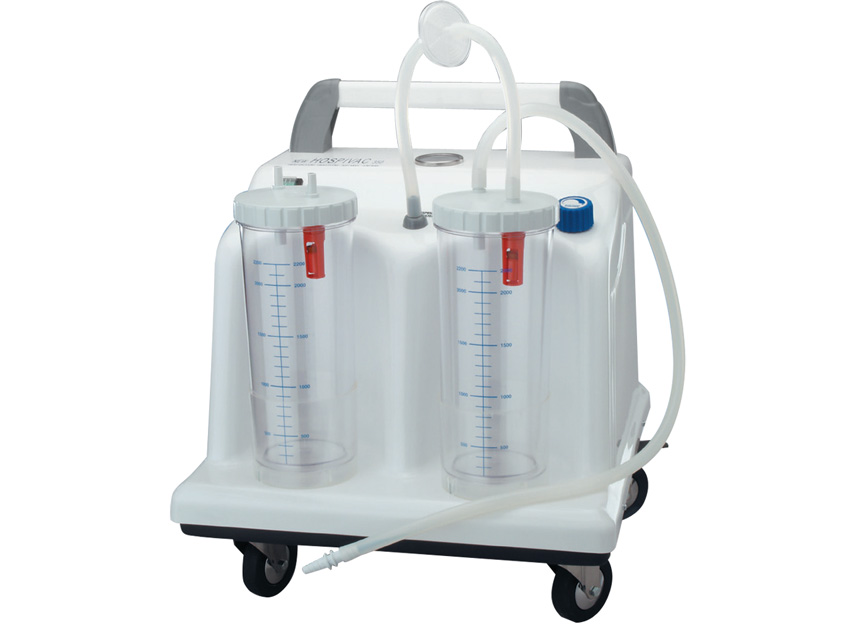

TOBI CLINIC surgical aspirator

- Jars: 2 x 4 l
- Power supply: 220230 V
- Model with foot pedal: yes

Ideal for hospital use, they are made of ABS.
Four antistatic castors, two of which are locking, allow perfect mobility.
Equipped with vacuum indicator for suction control (1 bar), and 2 or 4 litre jars made from autoclavable makrolon, graduated to 200/400 ml,
each jar contains a double safety valve.
The piston pumps require no lubrication or maintenance. Equipped with antibacterial filter.
Model available with foot pedal and different power supply (110 V).

User manual in GB, FR, DE, IT, ES.
Italian manufacture. - Dimensions: 46 x 42 x h 60 cm
- Weight: 13 kg
- Power supply: 220230 V 5060 Hz
- Max. vacuum: 0.90 bar (675 mmHg)
- Operating cycle: continuous
- Flow rate: 60 l/min
- Standards: CEI 625 (IEC 6011) 93/42 EEC
- Foot pedal

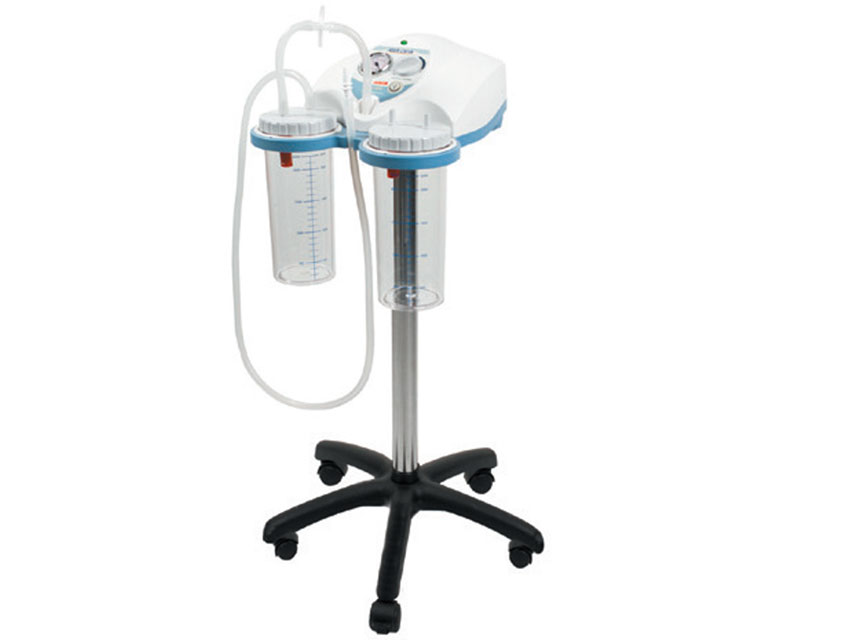

SUPERVEGA BATTERY ASPIRATOR on trolley 2 l pots

Portable suction unit for suction of body, oral, nasal and tracheal fluids in adults and children.
For professional use, it has a suction power of max. 36 l/min.
It comes with double collection vessels and on a base with five wheels for easy transport.
The two operating options (AC/DC adapter and rechargeable battery) make it a versatile vacuum cleaner, approved for CONTINUOUS operation without overheating.
Visual and audible alarm to indicate low battery level, vacuum gauge (bar & kPa) and vacuum regulator.

Manual: GB, FR, DE, IT, ES.
Made in Italy. Operating voltage: 100240 V 50/60 Hz
Internal rechargeable Pb battery: 12V 4A
Battery autonomy: 60 min
Recharge time: 240 min
Duty cycle: continuous with AC/DC
Flow rate: 36 litres of air/minute
Noise level: 65.5 dBA
Dimensions Weight: 32x30

CLINIC PLUS Full
- Autoclavable vessels: 2x2 l
- Foot pedal: YES
- Flow direction regulator (directs aspirated liquids towards one of the two vessels) SI

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overfill protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 60 l/min
Power supply: 230 VA
Noise level: 51.7 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC Autoclavable bowl 121°C with overflow valve: 2x2 l
Rings for adapting 5 l jars: NO
Safety container (220 ml): NO
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Connector with

CLINIC PLUS Basic
- Autoclavable vessels: 2x2 l
- Foot pedal: NO
- Flow direction regulator (directs aspirated liquids towards one of the two vessels): NO

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overfill protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 60 l/min
Power supply: 230 VA
Noise level: 51.7 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC Autoclavable bowl 121°C with overflow valve: 2x2 l
Rings for adapting 5 l jars: NO
Safety container (220 ml): NO
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Connector with

HOSPI PLUS Basic
- Autoclavable vessels: 2x2 l
- Foot pedal: NO
- Flow direction regulator (directs aspirated liquids to one of the two vessels): NO

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overfill protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 90 l/min
Power supply: 385 VA
Noise level: 46.4 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC Autoclavable bowl 121°C with overflow valve: 2x2 l
Rings for adapting 5 l jars: NO
Safety container (220 ml): NO
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Connector with

CLINIC PLUS Full
- Autoclavable vessels: 2x4 l
- Foot pedal: YES
- Flow direction regulator (directs aspirated liquids towards one of the two vessels) SI

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overfill protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 60 l/min
Power supply: 230 VA
Noise level: 51.7 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC Autoclavable bowl 121°C with overflow valve: 2x4 l
Rings for adapting 5 l jars: NO
Safety container (220 ml): NO
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Connector with

HOSPI PLUS Full
- Autoclavable vessels: 2x4 l
- Foot pedal: YES
- Flow direction regulator (directs aspirated liquids towards one of the two vessels): SI

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overfill protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 90 l/min
Power supply: 385 VA
Noise level: 46.4 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC Autoclavable bowl 121°C with overflow valve: 2x4 l
Rings for adapting 5 l jars: NO
Safety container (220 ml): NO
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Connector with

CLINIC PLUS Full MPR
- Autoclavable vessels: 2x5 l
- Foot pedal: YES
- Flow direction regulator (directs aspirated liquids towards one of the two vessels) SI

Designed for professional suction of body fluids, tissues or bones of patients during or after surgery.
Piston pumps requiring no lubrication or maintenance provide high performance. Excellent suction and maximum vacuum in seconds.
Available with vacuum gauge and autoclavable makrolon jars with 200 ml (2 l jar) or 500 ml (4 or 5 l jars) scale and 23 litre Flovac jars with disposable bags.

Wide range of versions with different functions
flow rates of 60 l/m (Clinic Plus) or 90 l/m (Hospi Plus)
2, 4 or 5 l pots
MPR multifunctional rail system for greater versatility
foot pedal and directional flow regulator

High safety standard of the overflow protection system
Double safety valve integrated in the vessel and hydrophobic filter (all models), safety container (MPR models only)

MPR (Multi Purpose Rail) Models
This system increases versatility by allowing the easy and quick exchange of various accessories, without tools.

Five connectors for different diameter rings for different sizes and types of vessels (2l, 3l, 5l), cannula holder and safety container.

MAIN APPLICATIONS: FIRST AID, GENERAL SURGERY, GYNAECOLOGY, NEUROSURGERY, OBSTETRICS, OPERATING THEATRE, DENTAL PRACTICE

Dimensions: 460 x 850 x 420 mm
Weight: 20 kg
Made in Italy. Operating voltage: 230 V 50/60 Hz
Max suction: 0.90 bar (675 mmHg)
Operating cycle: continuous
Flow rate: 60 l/min
Power supply: 230 VA
Noise level: 51.7 dBA
Standards: CEI 625 (IEC 6011) 93/42 EEC Autoclavable jar 121°C with overflow valve: 2x5 l
Rings for adapting 5 l jars: 2
Safety container (220 ml): 2
Hydrophobic antibacterial filter (disposable): 1
Autoclavable silicone tubing Ø 8x14 mm length 150 cm: 1
Conic connector
