MAXI ASPEED SURGICAL ASPIRATORS

- Maxi Aspeed 90 l
- Vessel: 2x2 l
- Power supply: 230 V
- Foot pedal: YES
- Flow direction regulator (directs sucked liquids towards one of the two containers) YES

Surgical suction units for sucking up body secretions in operating theatres and hospitals.

Easy to handle
Equipped with 4 antistatic wheels with brakes and telescopic handle.

Designed for continuous movement
Made of highly heat-resistant and electrically insulated plastic in accordance with the latest European safety standards.

Vacuum regulator with BAR/PSI vacuum gauge and automatic flow direction for easy switching between vessels.

Supplied with 2 autoclavable polycarbonate vessels with safety valve (overflow protection), set of sterilisable non-toxic silicone tubes, hydrophobic antibacterial filters (2) and multilingual user manual (GB, FR, IT, DE, ES).

Made in Italy. Supply voltage: 230 V 50/60 Hz
Noise level: 5060 dBA
Air flow: 90 l/min
Operating cycle: continuous
Adjustable vacuum level: 00.90 bar (090 kPa)
Dimensions: 470x580x560 mm
Weight: 17 kg

MAXI ASPEED SURGICAL ASPIRATORS

- Maxi Aspeed 60 l
- Vessel: 2x4 l
- Power supply: 230 V
- Foot pedal: YES
- Flow direction regulator (directs sucked liquids towards one of the two containers) YES

Surgical suction units for sucking up body secretions in operating theatres and hospitals.

Easy to handle
Equipped with 4 antistatic wheels with brakes and telescopic handle.

Designed for continuous movement
Made of highly heat-resistant and electrically insulated plastic in accordance with the latest European safety standards.

Vacuum regulator with BAR/PSI vacuum gauge and automatic flow direction for easy switching between vessels.

Supplied with 2 autoclavable polycarbonate vessels with safety valve (overflow protection), set of sterilisable non-toxic silicone tubes, hydrophobic antibacterial filters (2) and multilingual user manual (GB, FR, IT, DE, ES).

Made in Italy. - Operating voltage: 230 V 50/60 Hz (110 V60 Hz available on request)
- Flow rate: 60 L/min
- Duty cycle: Continuous
- Adjustable vacuum level: 00.90 bar (090 kPa)
- Dimensions: 470 x 580 x h 560 mm
- Weight: 15 kg - Foot switch
- Flow direction regulator

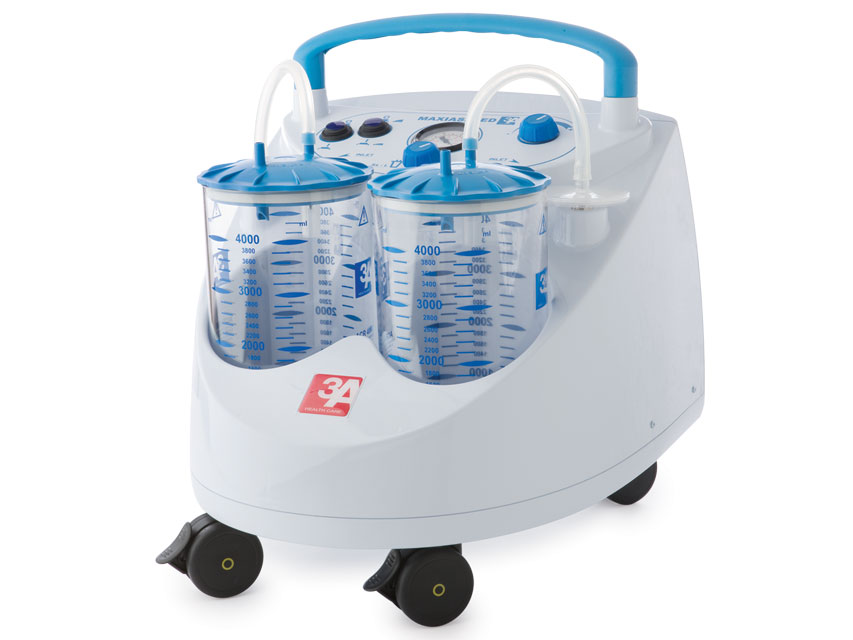

MAXI ASPEED SURGICAL ASPIRATORS

- Maxi Aspeed 90 l
- Vessel: 2x4 l
- Power supply: 230 V
- Foot pedal: NO
- Flow direction regulator (directs sucked liquids towards one of the two containers) YES

Surgical suction units for sucking up body secretions in operating theatres and hospitals.

Easy to handle
Equipped with 4 antistatic wheels with brakes and telescopic handle.

Designed for continuous movement
Made of highly heat-resistant and electrically insulated plastic in accordance with the latest European safety standards.

Vacuum regulator with BAR/PSI vacuum gauge and automatic flow direction for easy switching between vessels.

Supplied with 2 autoclavable polycarbonate vessels with safety valve (overflow protection), set of sterilisable non-toxic silicone tubes, hydrophobic antibacterial filters (2) and multilingual user manual (GB, FR, IT, DE, ES).

Made in Italy. Supply voltage: 230 V 50/60 Hz
Noise level: 5060 dBA
Air flow: 90 l/min
Operating cycle: continuous
Adjustable vacuum level: 00.90 bar (090 kPa)
Dimensions: 470x580x560 mm
Weight: 17 kg

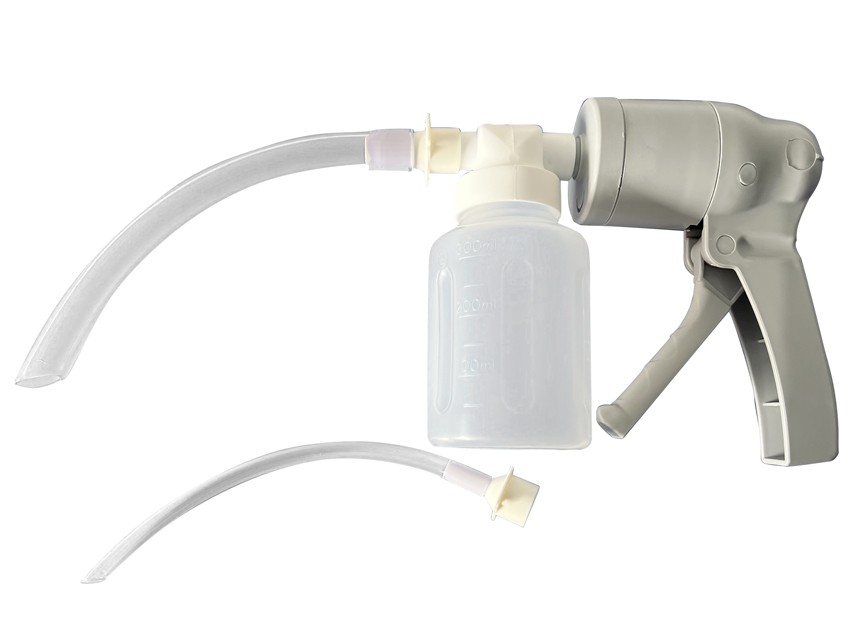

GIMA MANUAL ASPIRATOR with adult/child catheter

Lightweight and compact aspirator for removing fluids from the respiratory tract or respiratory support system.

one-handed use
reusable pump, disposable kit
integrated protection
adjustable vacuum level for adults and children
HEPA antimicrobial filter to prevent contamination of the pump

Medical device of
Class I in accordance with Regulation 2017/745/EU.

Supplied with disposable container with filter, suction tube for children and adults, adapter and multilingual manual (GB, FR, IT, ES, PT, DE, PL, GR, RO, HU, HR). Max. vacuum: 450 mmHg
Material: PE , PVC
Air flow: >20 l/min
Dimensions: 180x220x80 mm
Container capacity: 300 ml
Weight: 275 g

Paediatric replacement set, with filter, for RESQVAC aspirator (order no. 28124).

300 ml jar with 2 cannulae of different lengths for paediatric (356 mm) and neonatal (88.9 mm) use. Disposable.

Product available while stocks last.

ADULT KIT spare

Kits include; container with antimicrobial filter, adult or paediatric suction tube, adapter.

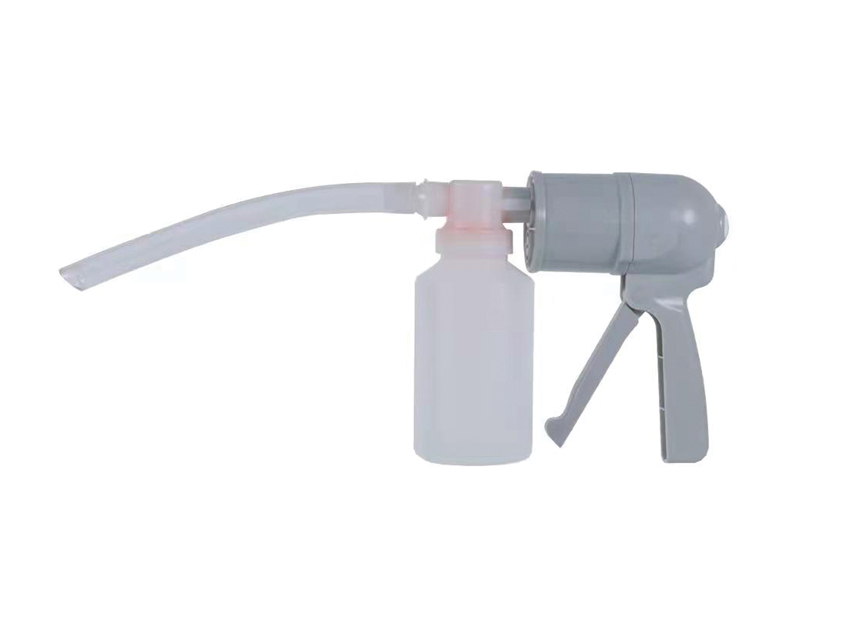

SINGLE-PATIENT MANUAL ASPIRATOR

Lightweight, hand-held aspirator for one-handed use, leaving the other hand free.
Simple operation.
Adjustable knob sets different suction pressures.

Supplied with 550 mmHg handle, 300 ml container, child and adult catheter Vacuum after 1 min at 20kPa: = 15 kPa
Vacuum after 6 aspirations: = 20 kPa
Max. vacuum: = 39.9 kPa
Disposable container volume: 300 ml
External cap: Ø 17 mm
External catheter connection: Ø 17 and 9 mm
Suction adjustment: rotation 50% or 100%
Dimensions

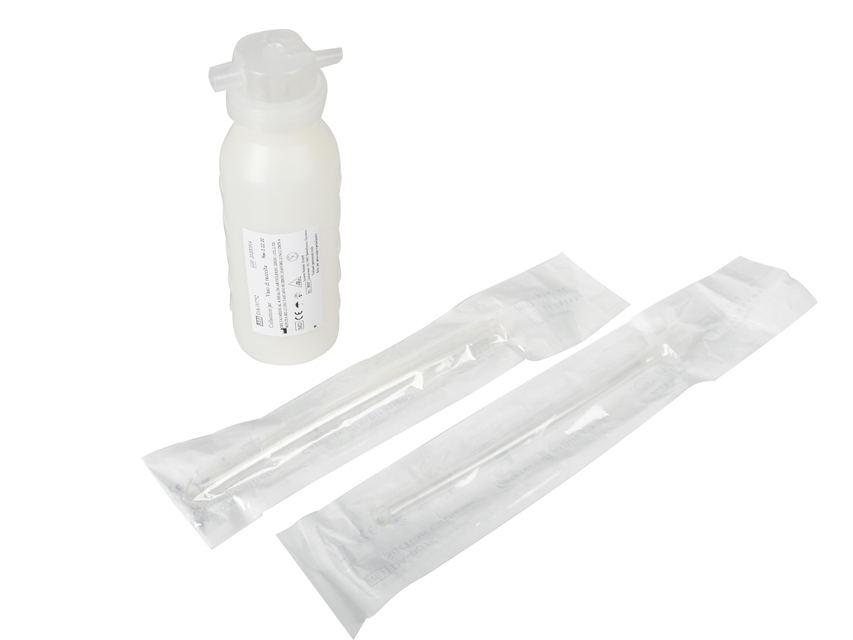

ADULT SPARE PARTS KIT for cod. 28180

Includes a 250 ml jar and 2 non-sterile adult cannulae 17 cm (Ø 6 mm) and 19 cm (Ø 10 mm) long.

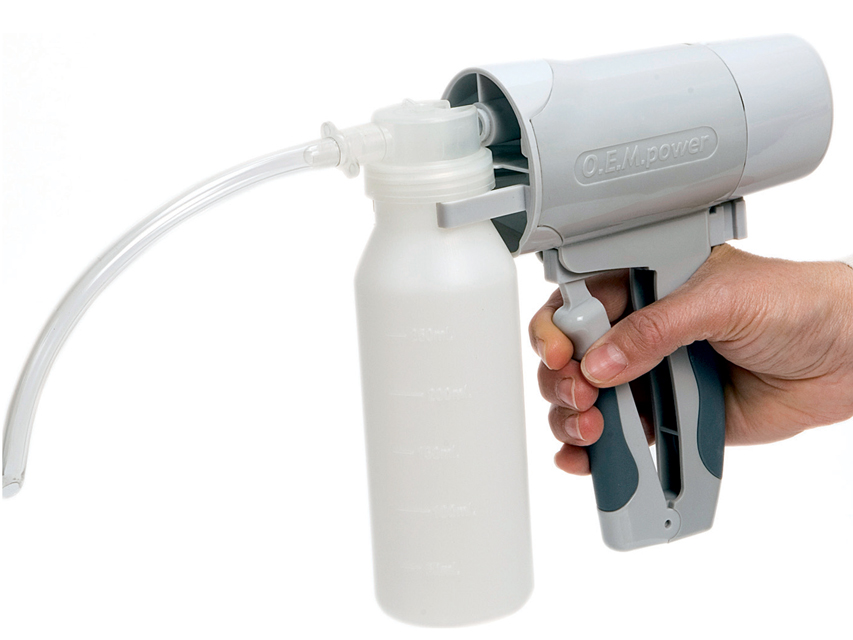

MANUAL ASPIRATOR

Designed for effective and rapid pharyngeal or tracheal suction in emergency settings.

The adjustable lever allows for different levels of suction pressure.

Supplied with 250 ml jar and 2 non-sterile adult cannulae 17 cm (Ø 6 mm) and 19 cm (Ø 10 mm) long.

Supplied with box and multilingual manual: GB, FR, IT, ES, DE, PT, PL, GR, Arabic. Maximum suction: 400 mmHg
Peak airflow: >20 l/min
Catheter connection external diameter: 10 and 6 mm
Weight: 260 g
Dimensions: 230x60x190 mm
