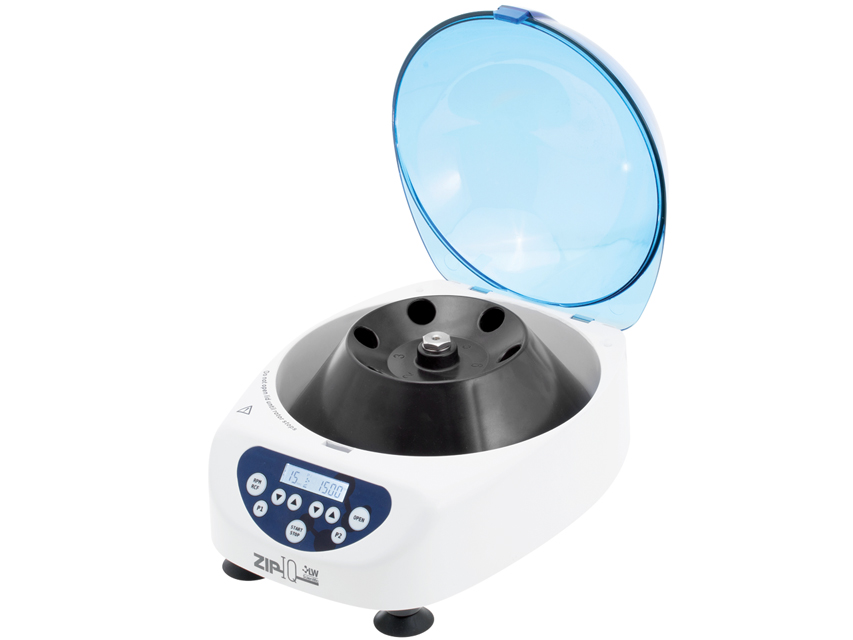

ZIP-IQ TT CENTRIFUGE
6-place centrifuge for centrifuging blood, urine and other fluids in test tubes or microtubes from 0.5 to 15 ml.
Very small and robust unit.
Speed and time can be adjusted with digital controls.
The display shows the speed and remaining time.
The maintenance-free brushless motor turns at 5,000 rpm (2,500 g), producing serum in just 5 min.Urine is centrifuged at 2,000 rpm (400 g) in 5 min.
The automatic brake stops the rotor in 10 sec. Automatic lid opening at the end of the cycle.
RECOMMENDED SPEEDS AND TIMES FOR VARIOUS FLUIDS:
- Fluid: Blood
- Test tube: Large (6-15 ml)
- Inserts: None or black
- Speed: 5,000 rpm
- Time: 5 minutes
- Fluid: Blood
- Test tube: Small (3-5 ml)
- Inserts: White
- Speed: 5,000 rpm
- Time: 6 minutes
- Fluid: Blood
- Test tube: Microtube (0.5-2.0 ml)
- Inserts: Green
- Speed: 5,000 rpm
- Time: 7 minutes
- Fluid: Urine
- Tube: Urine tubes 10-15 ml
- Inserts: none
- Speed: 2,000 rpm
- Time: 5 minutes
- Fluid: Faeces
- Test tube: Stool tubes 10-15 ml
- Inserts: none
- Speed: 1,700 rpm
- Time: 6 minutes Speed range: 300-5,000 rpm (increments of 100)
Max. RCF: 2,500 g
Max. volume: 6 x 15ml tubes
Input voltage: 100-240 V AC; 50-60 Hz
Output voltage: 24 V DC, 4 Amp
dBA: 53 ± 3 dBA at 18-24"
Timer: 15 sec - 99 min
Dimensions: 212x270xh 1 6-place angled rotor for 7-15ml test tubes
6 black inserts for 5-6ml test tubes
6 white inserts for 3-4ml test tubes
6 green inserts for 0.5-2.0ml test tubes
Hexagonal spanner for rotor nut
User manual: GB, IT
