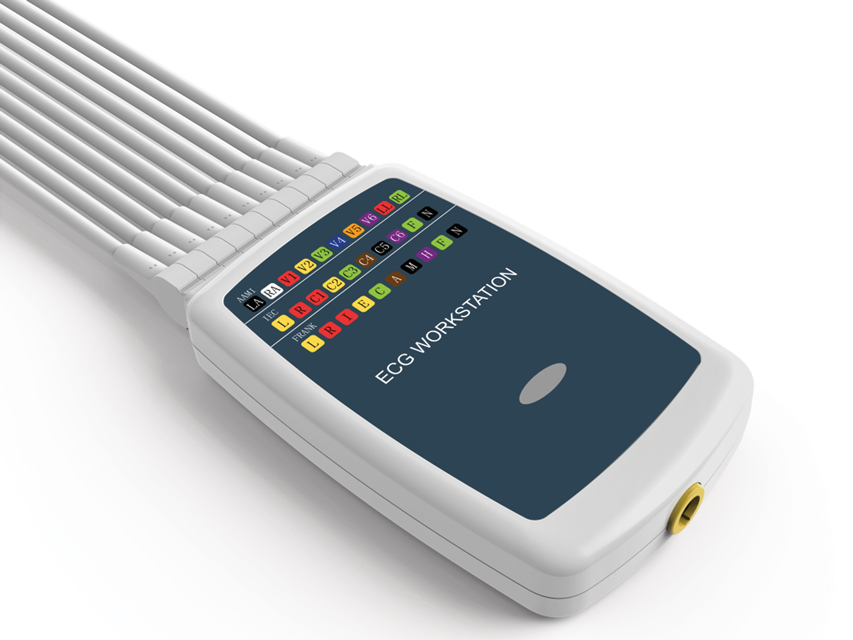

CONTEC 8000 WIRELESS ECG WORKSTATION

Compact and portable device with advanced ECG analysis algorithm that reliably detects arrhythmias.
The high sampling rate (1000Hz) ensures correct tracing, visualisation and high-frequency printing.
Includes wireless data transmission to PC for analysing, managing and storing patient reports.
Multiple functions, including: 12-lead ECG, frequency cardiogram, high-frequency ECG, internal QT dispersion analysis, heart rate variability analysis, ECGs pacing analysis, myocardial ischaemia analysis, heart rate turbulence analysis, timed vectorcardiogram and late ventricular potential analysis.
Built-in rechargeable lithium battery, continuous operation for more than 7 h. Leads: 12 standard leads
Input mode: fluctuation and defibrillation protection
CMRR: > 60dB, >100dB (add filter)
Time constant: = 3.2s
Patient leakage current: < 10 µA
Calibration voltage: 1mV
Sampling: fre 1 ECG lead
6 precordial electrodes
2 extension cables (for electrodes)
4 limb clamp electrodes
1 software on CD
2 lead cable clamps
1 user manual for ECG workstation installation: GB, IT

KONIX COSMETIC GEL FOR LASER AND CAVITATION

- Cosmetic gel
- bottle 1 l
- 18-pack

Laser and cavitation gel reduces the discomfort of hair removal and increases the longevity of the device by refreshing the head and glass.
Thanks to the special production technology, its active substances and high viscosity, it protects the probe from damage.
It is not altered by body salt during use and guarantees easy application.

Technical features: hypoallergenic, does not irritate the skin, dissolves in water and is easy to remove. Contains no oily substances, formaldehyde or salt. Non-toxic and odourless.

ECG GEL - 2 x 5 litre bags
(Includes 1 empty 250 ml bottle and 1 nozzle for easy refilling)

For use with electrodes without gel, during stress examinations. Allows easy transfer of waves to the device. Hypoallergenic, does not irritate the skin and contains no oil or oily substances. Does not contain formaldehyde or salt, and is non-toxic and odourless.

KONIX COSMETIC GEL FOR LASER AND CAVITATION

- Cosmetic gel
- bag 5 l
- pack of 2 (includes 1 empty 250 ml bottle and 1 refill nozzle)

Laser and cavitation gel reduces the discomfort of hair removal and increases the longevity of the device by refreshing the head and glass.
Thanks to the special production technology, its active substances and high viscosity, it protects the probe from damage.
It is not altered by body salt during use and guarantees easy application.

Technical features: hypoallergenic, does not irritate the skin, dissolves in water and is easy to remove. Contains no oily substances, formaldehyde or salt. Non-toxic and odourless.

PULSED DOPPLER PW for 33970, 33971 (can only be used with probes 33976, 33977) and for 33989, 33991 (can be used with all probes).

WIRELESS PORTABLE ULTRASOUND SCANNERS

Scanning:
- Linear (VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10
- Convex (POLMONIES / ABDOMEN / CARDIOLOGY / GYNECOLOGY / OSTETRICIA / UROLOGY / RENI)
- Frequency range (MHz): 3.5-5
- Cardiac (VASCULAR / CARDIOLOGY / ARTERIES)
- Frequency range (MHz): 2.5-5

Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.

Convex probe: abdominal and pelvic organ scan, FAST scan, pleural effusion scan and lung ultrasound.

Cardiac probe: Echocardiogram for ultrasound of heart, thoracic arteries and intracranial blood vessels.

Easy-to-use wireless portable ultrasound machines, allowing the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage

3-in-1 ultrasound scanner
The linear + convex + phased array (cardiac) probe allows the transition from depth to surface scanning without changing probes.
Very broad frequency and scanning depth allow examination of the entire body. Very sharp images and very long standby time (=12h) with very large 4200 mAh. 3.7V lithium battery.
Integrated independent Wi-Fi module, which realises instant image transmission without external network, reduces data transmission delay and improves image clarity.

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.

All models have GB, IT manual. Probe type: Linear / Convex / Cardiac
Frequency range: 7.5-10 MHz / 3.5-5 MHz / 2.5-5 MHz
Scanning depth: 20~80 mm / 90~305 mm / 90~160 mm
Head width: 60 mm
Doppler: B/BM/Colour/PDI/PW
Battery life: 3 hours
Recharge time Wireless charging support
USB cable
Charger adapter
Carrying bag
