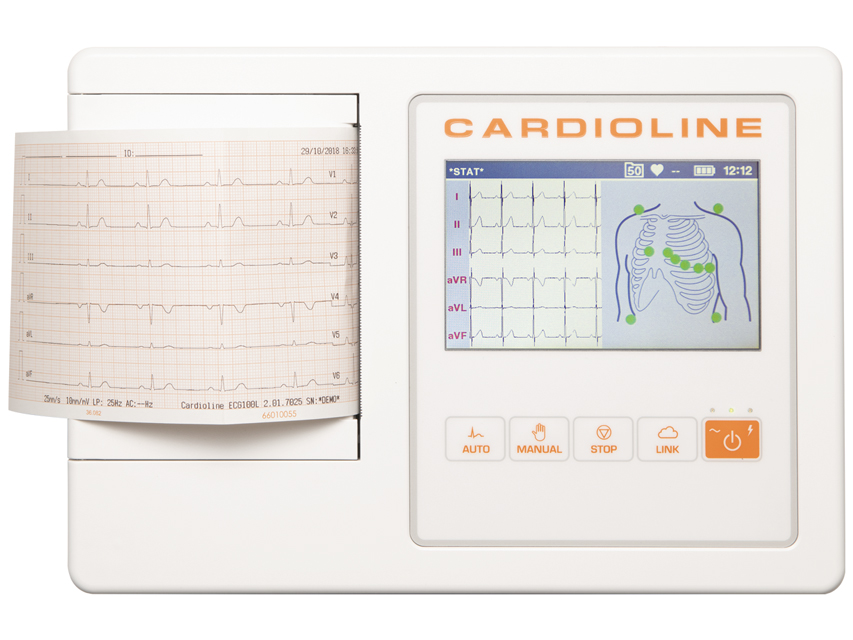

CARDIOLINE 100L BASIC ECG - 5" screen

Cardioline ECGs are designed to quickly and easily acquire a 12-lead resting ECG in a doctor's office.
Particular attention has been paid to ease of use with a bright colour 5" (54200-2) or 7" (54204-5) touch screen and dedicated keys for quick operation.
The user is guided step-by-step through ECG acquisition, from electrode positioning to quality control, acquisition, printing and storage.
At the touch of a button, ECGs can be acquired in Automatic, Manual, Stat or Rhythm mode.
The new ECG Rhythm function allows rhythm analysis of 3 minutes of ECG, including trend and heart rate variability.
ECG files can be stored in the device or exported via a USB connection to a PC or memory stick.

Support of most print formats
Standard or cabrera 3, 3+1, 3+3, 6 or 12 (12 only 54204-5) channels printing in automatic mode and 3, 6 or 12 channels printing in continuous mode as well as rhythm strip printing.

Switchable internal multilingual software in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.

Glasgow algorithm for paediatric and adult interpretation (54201 - 54205 only)
The algorithm can diagnose any abnormality usually recognisable by ECG: myocardial infarction, including IMA, ventricular hypertrophy, ST-T abnormalities and common rhythm abnormalities. The programme also detects disorders such as conduction delay and QT interval lengthening.

ECG EasyApp to manage patient ECGs (supplied with 54202, 54205, optional for 54200-1, 54204)
With this App, ECG acquisitions can be received in SCP format on a PC (via USB) and printed. Patient data and automatic interpretations provided by the ECG, including examination results, are editable. The operator can also customise the rhythm strip pattern with specific commands (speed, gain, filter, etc.). ECG acquisition
- ECG channels: 12 leads (I, II, III, aVR-L-F, V1-6)
- Patient cable: Standard 15D, 10-wire
- CMRR: >100 dB
- Input impedance: 100 MOhm
- Input stage sampling rate: 32000 samples/second/channel
- ECG resolution: 5µV/LSB; 500 s/s
- Dynamic range: ± 325 mV
- Bandwidth: 0.05-150 Hz equivalent performance
- Pacemaker recognition: Hardware recognition coupled with digital convolution filter
- Filters: Linear phase digital diagnostic high-pass filter (according to 60601-2-25 2nd ed.). Digital adaptive 50/60 Hz AC interference filter. Digital low-pass filter 25/40 Hz, for display and printing only
- Defibrillation protection: AAMI/IEC standard
- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
- Acquisition modes: Automatic (12 leads), Manual (3/6 leads), Stat (12 leads), Rhythm (1/3 lead)
- Configuration: Standard or Cabrera
- Lead failure detection: Independent on all leads
- Heart Rate Measurement: 30-300 bpm
- ECG Measurements: All leads, average, corrected; HR; average RR; PR interval; QRS duration; QT and QTc interval, with Hodges, Bazzet and Fridericia formula, max R[V5] or [V6] and S[V1]; Sokolow-Lyon index; P, R, T axes
- ECG memory: 50 ECGs
- Export format: SCP-PDF

Screen
- Type: 5" backlit colour TFT LCD with capacitive touch panel
- Resolution: 800 x 480
- Data displayed: 3/6/12 leads in real time

Printer
- Thermal head: 108 mm
- Resolution: 8 dots/mm

Physical characteristics
- Dimensions/weight: 270x190x60 mm - 1.48 kg

Electrical characteristics
- Power supply: 100-240V, 50/60 Hz
- Power supply degree of protection: IP20
- Battery type: NiMH
- Battery life: more than 500 ECGs, more than 6 hours
- Charging time: 4 hours up to 85% of total capacity

Standards and safety
- DDM 93/42/EEC Class IIa
- IEC 60601-1-2 (electromagnetic compatibility): Group 1 - Class B
- IEC 60601-1 (electrical safety)
- Protection against electric shock IP (internal power supply), Class I (on external AC/DC power supply)
- Protection against water: IXP 0 Patient cable
2 paper rolls
Battery
Power supply cable
Snap connector adapter 4 mm (pack of 10)
Disposable tab electrodes (package of 100)
Manual on CD (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)

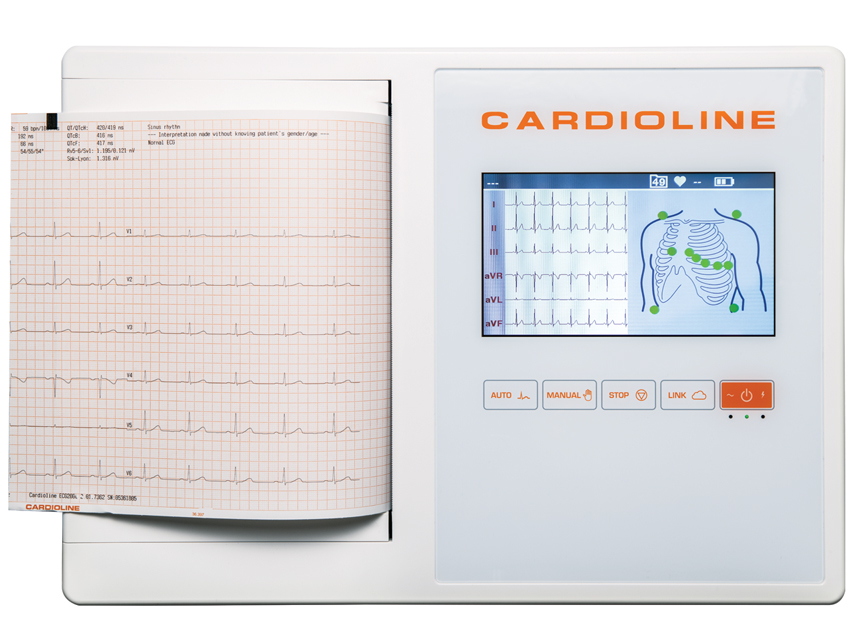

CARDIOLINE ECG 200L FULL (Glasgow + EasyApp) - 7" screen

Cardioline ECGs are designed to quickly and easily acquire a 12-lead resting ECG in a doctor's office.
Particular attention has been paid to ease of use, with a bright colour 5" (54200-2) or 7" (54204-5) touch screen and dedicated buttons for quick operation.
The user is guided step-by-step through ECG acquisition, from electrode positioning to quality control, acquisition, printing and storage.
At the touch of a button, ECGs can be acquired in Automatic, Manual, Stat or Rhythm mode.
The new ECG Rhythm function allows rhythm analysis of 3 minutes of ECG, including trend and heart rate variability.
ECG files can be stored in the device or exported via a USB connection to a PC or memory stick.

Support of most print formats
Standard or cabrera 3, 3+1, 3+3, 6 or 12 (12 only 54204-5) channels printing in automatic mode and 3, 6 or 12 channels printing in continuous mode as well as rhythm strip printing.

Switchable internal multilingual software in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.

Glasgow algorithm for paediatric and adult interpretation (54201 - 54205 only)
The algorithm can diagnose any abnormality usually recognisable by ECG: myocardial infarction, including IMA, ventricular hypertrophy, ST-T abnormalities and common rhythm abnormalities. The programme also detects disorders such as conduction delay and QT interval lengthening.

ECG EasyApp to manage patient ECGs (supplied with 54202, 54205, optional for 54200-1, 54204)
With this App, ECG acquisitions can be received in SCP format on a PC (via USB) and printed. Patient data and automatic interpretations provided by the ECG, including examination results, are editable. The operator can also customise the rhythm strip pattern with specific commands (speed, gain, filter, etc.). ECG acquisition
- ECG channels: 12 leads (I, II, III, aVR-L-F, V1-6)
- Patient cable: Standard 15D, 10-wire
- CMRR: >100 dB
- Input impedance: 100 MOhm
- Input stage sampling rate: 32000 samples/second/channel
- ECG resolution: 5µV/LSB; 500 s/s
- Dynamic range: ± 325 mV
- Bandwidth: 0.05-150 Hz equivalent performance
- Pacemaker recognition: Hardware recognition coupled with digital convolution filter
- Filters: Linear phase digital diagnostic high-pass filter (according to 60601-2-25 2nd ed.). Digital adaptive 50/60 Hz AC interference filter. Digital low-pass filter 25/40 Hz, for display and printing only
- Defibrillation protection: AAMI/IEC standard
- Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
- Acquisition modes: Automatic (12 leads), Manual (3/6/12 leads), Stat (12 leads), Rhythm (1/3 lead)
- Configuration: Standard or Cabrera
- Lead failure detection: Independent on all leads
- Heart Rate Measurement: 30-300 bpm
- ECG Measurements: All leads, average, corrected; HR; average RR; PR interval; QRS duration; QT and QTc interval, using Hodges, Bazzet and Fridericia formula, max R[V5] or [V6] and S[V1]; Sokolow-Lyon index; P, R, T axes
- ECG interpretation: Glasgow Analysis Programme for adult, paediatric, STEMI patients
- ECG memory: 50 ECGs
- Export format: SCP-PDF
- PC-ECG "Easy App": PC ECG management application

Screen
- Type: 7" backlit colour TFT LCD with capacitive touch panel
- Resolution: 800 x 480
- Data displayed: 3/6/12 leads in real time

Printer
- Thermal head: 216 mm
- Resolution: 8 dots/mm

Physical characteristics
- Dimensions/weight: 413x295x80 mm - 4.17 kg

Electrical characteristics
- Power supply: 100-240V, 50/60 Hz
- Power supply degree of protection: IP20
- Battery type: NiMH
- Battery life: more than 500 ECGs, more than 6 hours
- Recharge time: 4 hours up to 85% of total capacity

Standards and safety
- DDM 93/42/EEC Class IIa
- IEC 60601-1-2 (electromagnetic compatibility): Group 1 - Class B
- IEC 60601-1 (electrical safety)
- Protection against electric shock IP (internal power supply), Class I (on external AC/DC power supply)
- Protection against water: IXP 0 Patient cable
Battery
1 pack of 180 sheets
Power supply cable
Snap connector adapter 4 mm (pack of 10)
Interpretation Glasgow
Disposable tab electrodes (pack of 100)
Manual on CD (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)

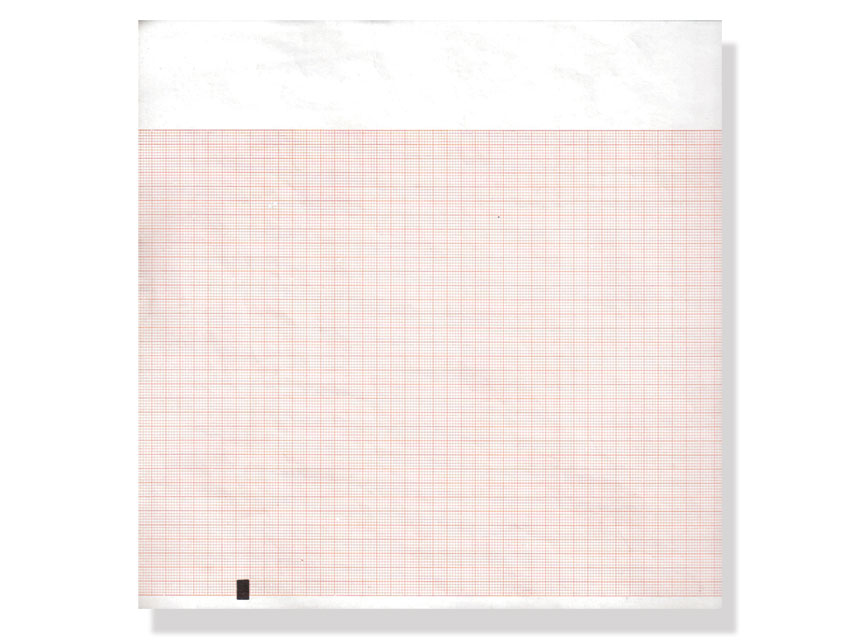

GIMA ECG TEMPERATURE CARDS - FOR DIFFERENT ECG BRANDS

ECG manufacturer and model: Mindray D60
Type: roll
Width mm: 112
Length m: 20
Sheets: -
Indicator: no
Grid: orange

Compatible with the following ECG models:

ECG manufacturer: TRISMED
Model: Cardipia 400, 406RS

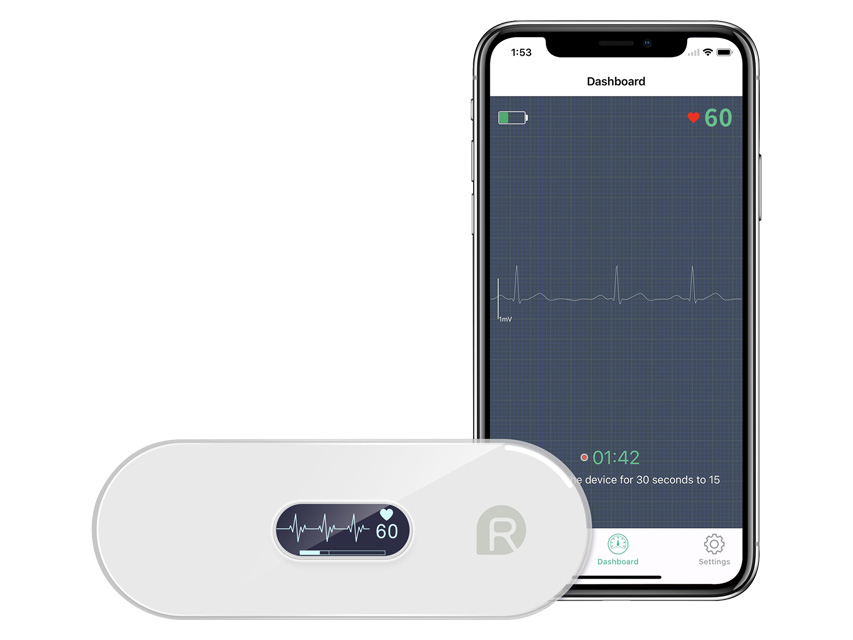

DuoEK™ S PORTABLE ECG MONITOR

Portable ECG monitor for instant measurements and analysis. Compact and lightweight, it easily performs professional ECG checks anytime and anywhere.
3 leads: hand-arm, hand-leg and chest.
- oLEd screen for clear ECG images
- one-button measurement
- 500 measurements on a single charge

Suitable for people with high stress, irregular hours, heart disease and cardiac disorders (palpitations, panic, dizziness, chest tightness, etc.)
Free ViHealth app on iOS and Android
You can automatically upload data and share the report in PdF format with your doctor.

Supplied with charger and multilingual manual (GB, FR , IT, ES, DE). ECG length: recording from 30 seconds to 5 minutes
Heart rate range: 30 - 250 bpm
Power supply: rechargeable lithium polymer battery (500 measurements)
Recharge time: 2-3 hours
Screen: 0.96" oLEd screen
Connection: micro-USb connector
Wireless: bluetooth 4.0 bLE
Built-in memory:
- 10 sessions per ECG < 1 minute
- 4 sessions per ECG of 5 minutes
Memory on App: unlimited
Dimensions - weight: 92x32x8.2 mm - 26.8 g

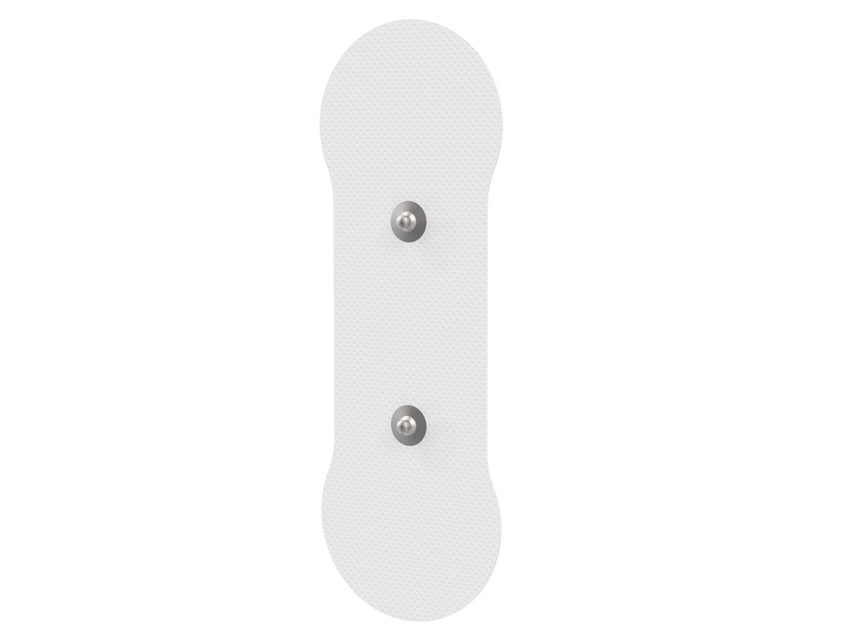

REUSABLE ECG READER CARDIODOT 13x4,5 cm for Cardionics - pack of 5

Each electrode can be applied about 30 times.

SUNLIGHT MINIOMNI™ ULTRASOUND DENSITOMETER FOR OSTEOPOROSIS EVALUATION with CM probe + MINIOMNI software

The Sunlight MiniOmni™ bone sonography system is an exceptionally cost-effective professional solution for the early diagnosis of osteoporosis, enabling reliable, accurate, non-invasive and safe assessment of bone density. Ultra-compact and ultra-light, easy and intuitive to use, practical USB port for connection to PCs and laptops running Windows™ 10 and higher. Suitable for use in any doctor's office, clinic, pharmacy, annual check-up centre or other point of sale.

Proven accuracy
MiniOmni™ is based on Omnipath™ quantitative ultrasound technology, which detects the speed of ultrasonic waves along the axis of maximum bone force, eliminating soft tissue effects and allowing for accurate results proven in thousands of facilities worldwide.

Proven safety
Non-invasive and radiation-free

Fast results
- no warm-up and calibration required
- immediate audio confirmation of correct measurement
- patient screening in minutes
- easy and quick to learn thanks to integrated training module

easily interpretable report in A4/letter format
- various ethnic reference databases for accurate results: Caucasian, Asian, Chinese, North and Latin American, European
- clear colour reports, easy to read and interpret
- patient data and history of findings
- gender and age (0 to 90 years) are taken into account
- T-score and Z-score compliant with WHO requirements

Very economical, quick return on investment
- no running costs, no routine maintenance, no consumables, no calibration

Optional Multi-Site licence (56805) for measurements at various skeletal sites
Allows measurement from various skeletal sites: radius, phalanx, tibia and metatarsus. The flexibility of the multi-site test improves the identification of osteoporosis points, as well as being able to test patients on whom it is difficult to assess certain skeletal sites.

- maximum convenience for the examiner, no need to bend over
- maximum convenience for the patient, no need to remove shoes
- ideal for immobile patients
- correlation of each site with osteoporosis is checked Method of measurement: ultrasonic wave speed (SOS)
Technology: Omnipath® axial ultrasound transmission
Probe frequency: 1.25 MHz
Measurement accuracy: 0.25 to 0.5%
Measurement time: approx. 1 minute per skeletal site
Power supply: 7.5V 1.5 A
Power consumption: 0.4 A
Dimensions: 140x140xh 223 mm (excluding probe holder)
Weight: 1 kg
Protection: type BF applied part, internal power supply with requirements for Class I or Class IS ultrasonic probe CM
Handrest
Radio/Tibia meter
Power supply 100-240 V and cable
Dermatological pen
USB connection cable
Ultrasound gel
MiniOmni software installation CD
System quality control dummy
User guide GB, EN

CM probe for radio and tibia - replacement

For the Tibia, licence 56805 is required

CS probe for third phalanx - optional, requires 56805

CR probe for metatarsus - optional, requires 56805
