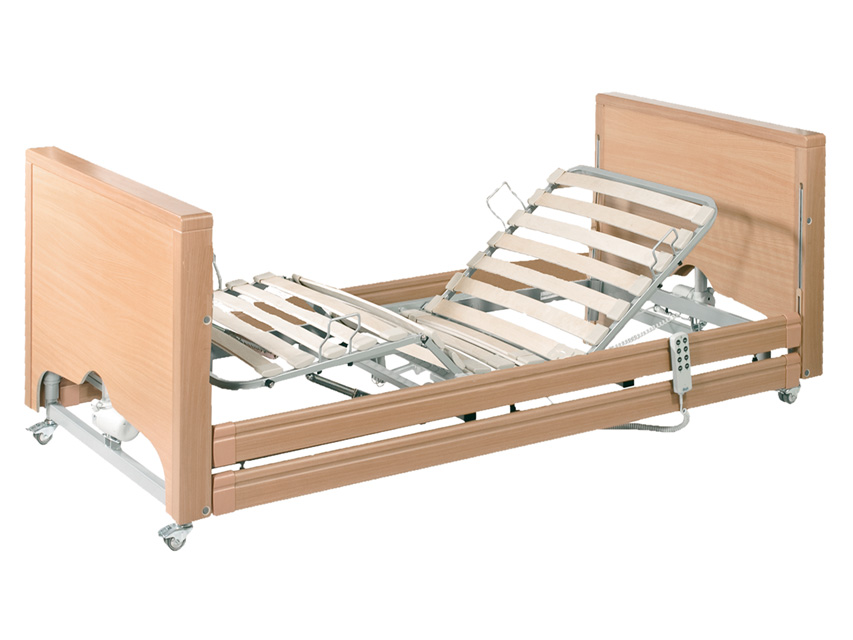

LOW SPECIALIST BED with Trendelenburg - 23-63 cm

Three-articulated, four-section bed with adjustable height from 23 to 63 cm with fully electric movements.
Entirely welded structure made of 50x25x2 mm rectangular section steel profiles.
Bed base with flexible wooden slats, complete with mattress support guides.
Backrest and leg section adjustable by means of two independent 24V DC electric motors and push-button panel.
Foot section adjustable by means of a rack.
Fixed pelvis section.
Removable headboard and footboard with solid wood edges.
Supplied complete with 2 vertical sliding bars with upper and lower locking/unlocking mechanism and lift bar.
Legs with 4 swivel castors Ø 100 mm with independent brake. Net dimensions: 900x2,000 mm
Net height: 230-630 mm
External dimensions: 1,030x2,140 mm
Maximum load capacity: 135 kg
Weight: 102 kg
Operating power: 230V - 50Hz

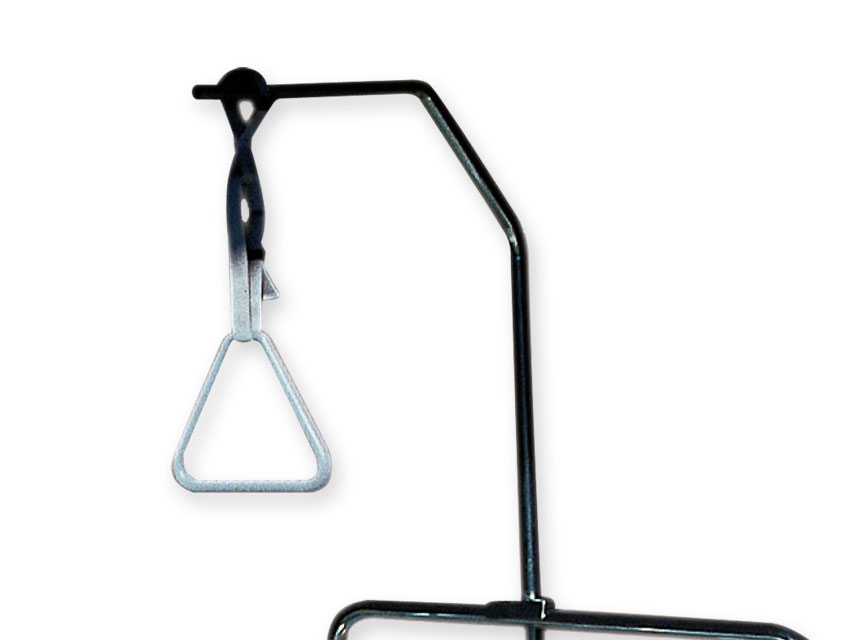

STRAPPING SYSTEM

Steel frame, coated surface.
The structure consists of 4 easily assembled parts.
Equipped with triangle.

Multilingual manual: GB, FR, IT, ES, PT, DE, GR, RO, PL, SE. Total length: 725 mm
Total width: 690 mm
Total height: 1935 mm
Triangle centre: 1520 mm
Load capacity*: 75 kg
*Lifespan takes half the patient's weight into account

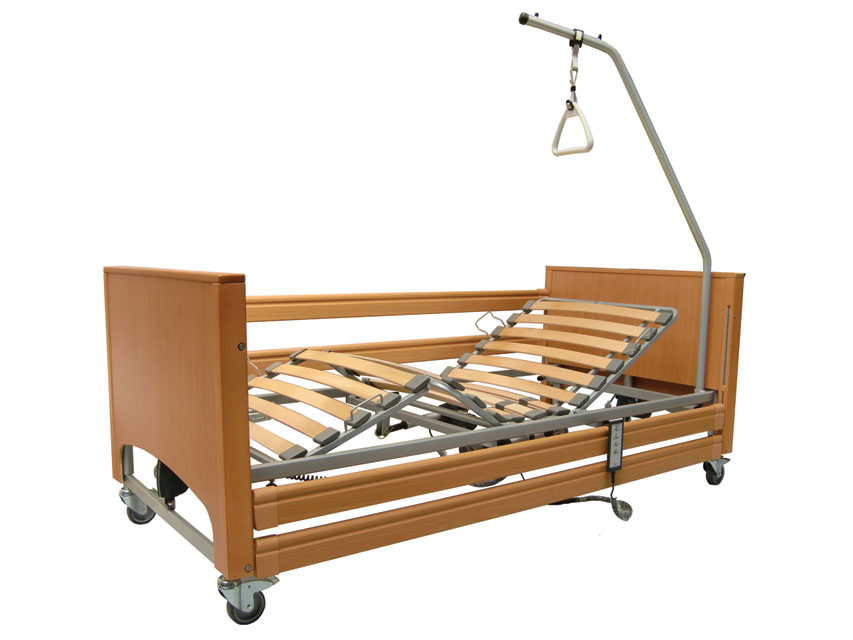

SPECIALIST BED with Trendelenburg - 40-80 cm

3-articulated bed, four sections with adjustable height from 40 to 80 cm with fully electric movements.
Entirely welded structure made of 50x25x2 mm rectangular section steel profiles.
Bed base with flexible wooden slats, complete with mattress support guides.
Backrest and leg section adjustable by means of two independent 24V DC electric motors and push-button panel.
Foot section adjustable by means of a rack.
Fixed pelvis section.
Removable headboard and footboard with solid wood edges.
Supplied complete with 2 vertical sliding bars with upper and lower locking/unlocking mechanism and lift-up bar.
Legs with 4 swivel castors Ø 100 mm with independent brake. Net dimensions: 900x2,000 mm
Net height: 400-800 mm
External dimensions: 1,030x2,140 mm
Maximum load capacity: 135 kg
Weight: 102 kg
Operating power: 230V - 50Hz

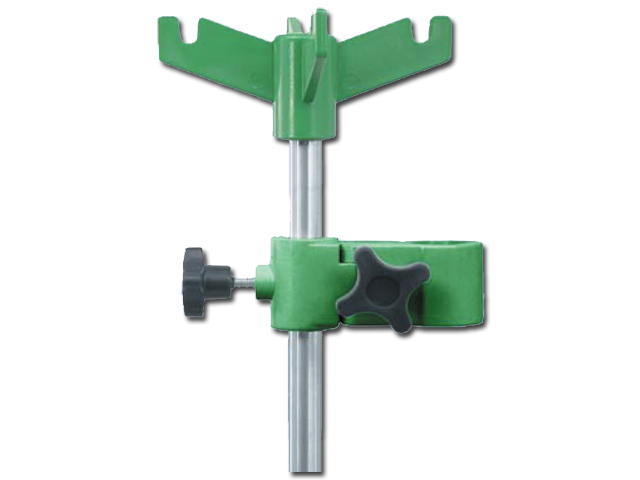

IV pole with 4 bed hooks - stainless steel.

Height from 41 to 64 cm.

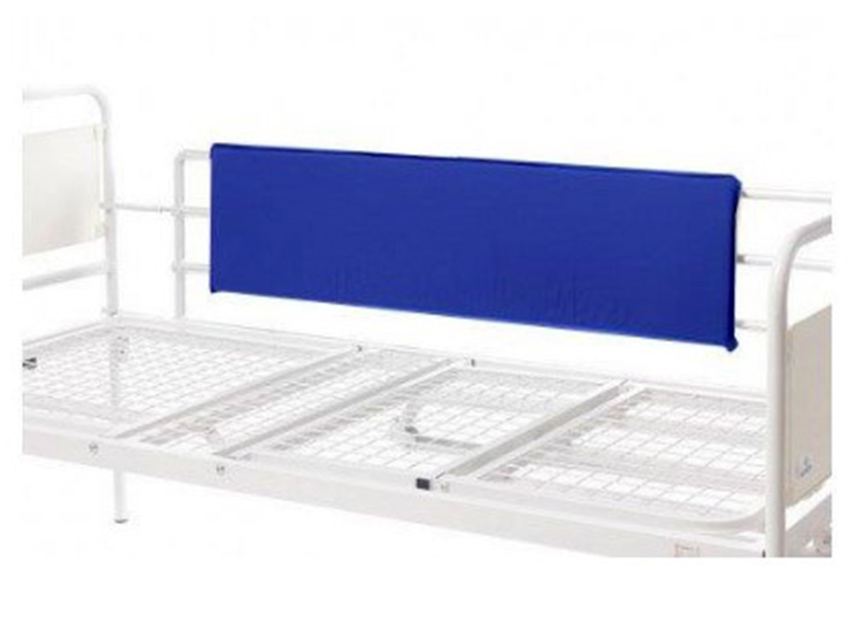

Velcro-fastening

Protection for patients against accidental collisions on the hard sides of the bed. Made of polyurethane foam with a non-removable, water-repellent and fireproof outer cover.

Dimensions: 166x50xh 3 cm

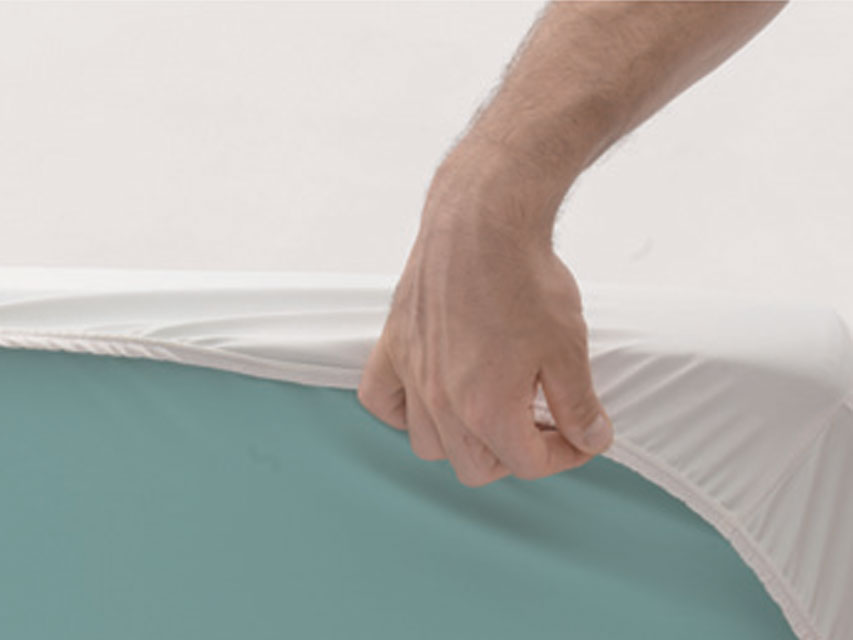

POLYESTER LINING 195x85x14 cm - white

Fire-retardant, breathable polyester cover for mattresses (27680, 27682, 27692) - Dimensions: 195 x 85 x h 14 cm

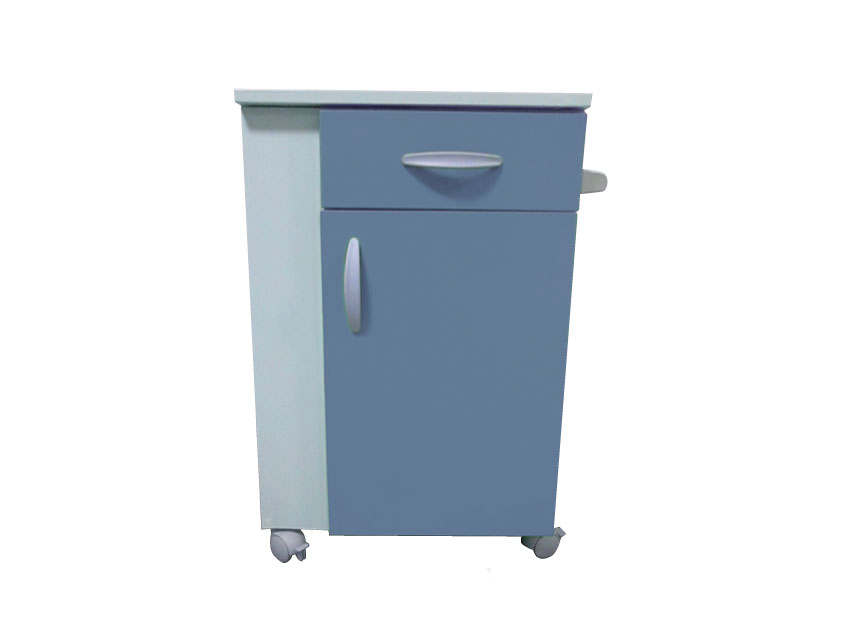

FEBO BASKET WITH BOTTLE RACK - light blue RAL 5014

Dimensions: 42x52,5xh 80 cm

Structure in 8/10 steel painted with epoxy powders.
Towel rail and side bottle holder, soft rubber handle, sliding drawer with removable ABS tray.
Removable internal shelf, 4 wheels, 2 of which with brake.

Made in Italy.

POLYESTER LINING 190x80x12 cm - white - Dimensions: 190 x 80 x h 12 cm

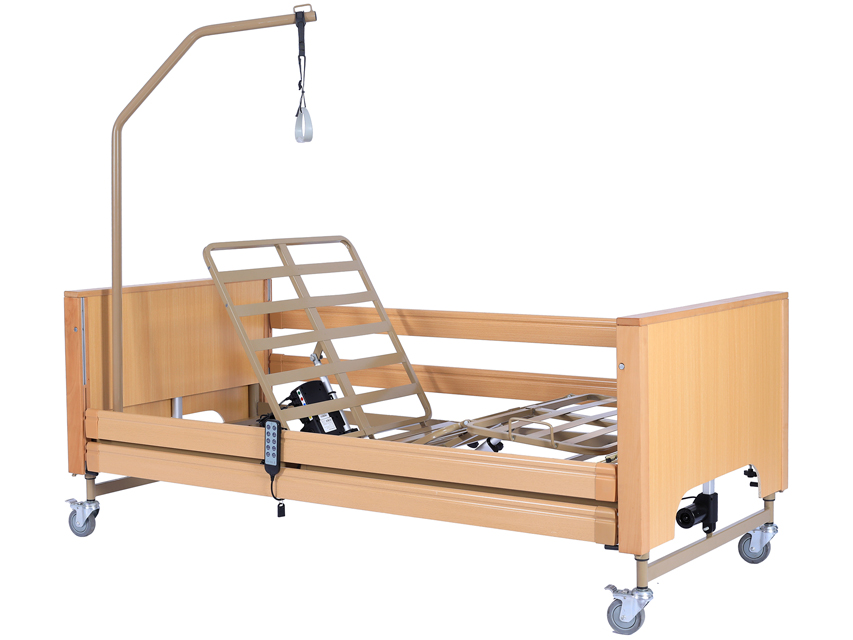

4-MOTOR VARIABLE HEIGHT BED - 84-125 cm

Three-articulated, four-section, height-adjustable beds with fully electric movements.
Steel frame, coated surface.
Four-section bed base, non-slip steel surface.
Back section and leg section adjustable by means of two independent electric motors.
Fixed pelvis section.
Solid beechwood headboard and footboard with solid corners and edges.
Legs fitted with 4 independently braked castors.
4 Richmat motors and 5-function manual control.
Supplied with riser rod.

Multilingual manual: GB, FR, IT, ES, PT, SE, RO, GR. Net dimensions: 90x200 cm
Total height: 84-125 cm
Net height: 38-79 cm
External measurement: 102x215 cm
Max. inclination of back section: 70°.
Max. leg section inclination: 25°.
Max. bed tilt: 12°.
Bed end height from bed base: 46 cm
P

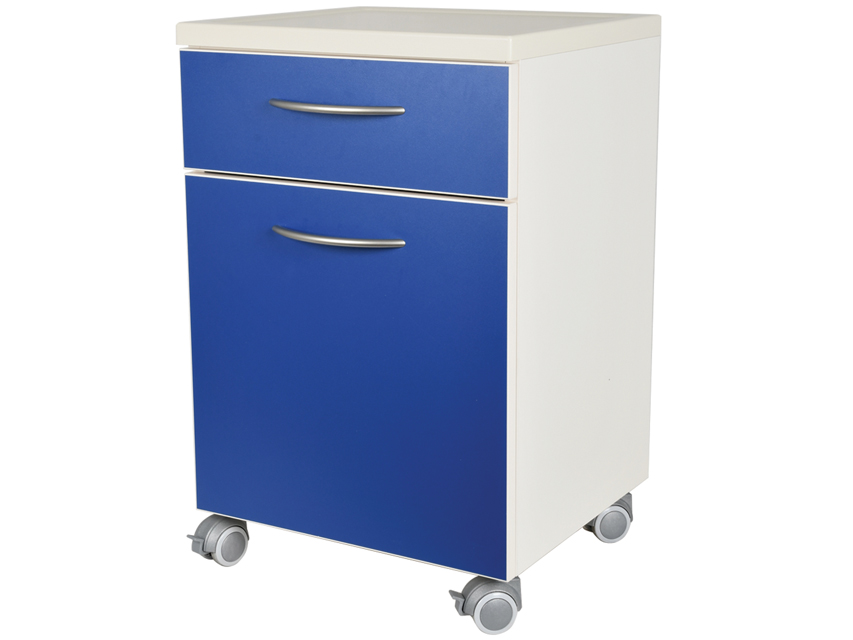

ARTEMIDE bedside table - blue

Frame, drawer and door in agglomerate wood covered with melamine material with anti-scratch and anti-reflection finish.
Edges in embossed ABS.
The door is fixed to the structure by means of sturdy metal hinges with anti-corrosion treatment.
Satin-finish steel handle, 4 wheels Ø 55 mm (two with brakes), adjustable and removable inner shelf.

Class E1- a, EN 120/92.

Measurements: 45 x 40 x h 75 cm

Made in Italy.
