3-STYLE BED - electric with wheels

3-article/ 4-sectional bed adjustable in height via 24 V DC electric motor and hand control.

- 3 joints/ 4 sections
- perimeter support structure made of rectangular-section steel profiles
- steel tube heads coated with epoxy glass
- manual movement by 2 cranks with folding handle
- legs supplied with plastic feet

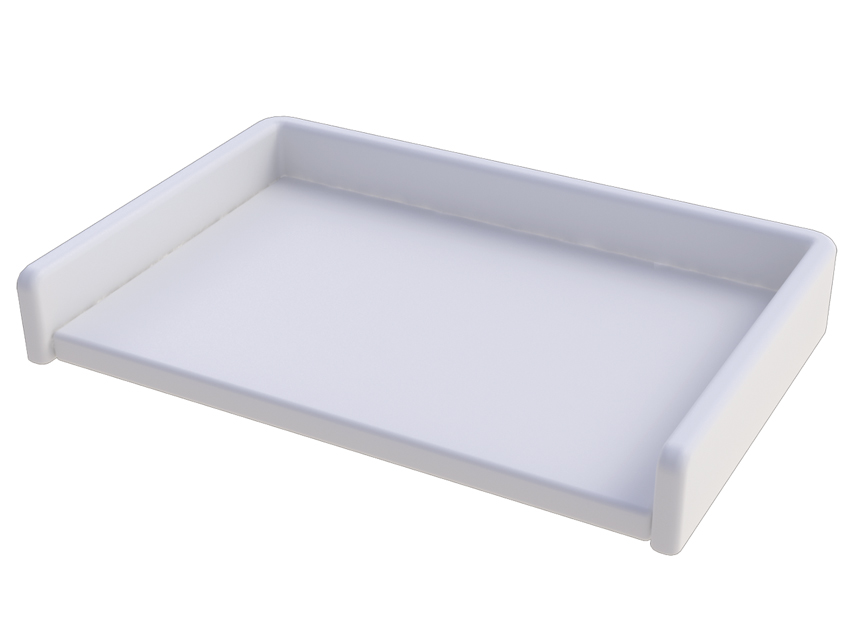

Changing mat for newborn baby - white - optional - 92x62 cm

Soft and comfortable changing mat that can be attached to the top panel of the double base unit. Chipboard panel with fire-retardant leatherette foam padding. Class 1 IM.

Made in Italy.

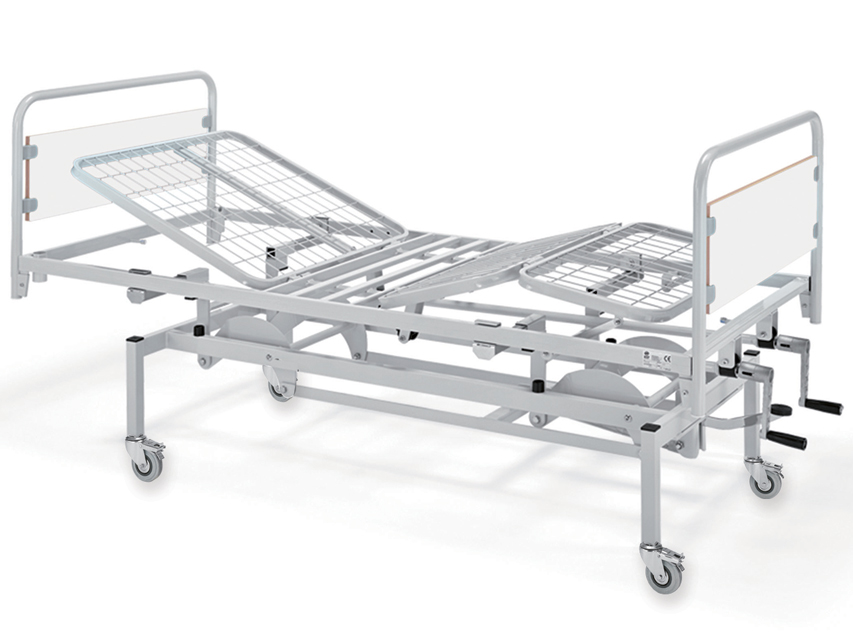

3-STUD BED - 2 cranks variable height - with wheels

- 3-article/ 4-section bed adjustable via 2 independent cranks
- Height adjustable via hydraulic foot pump.

- 3 joints/ 4 sections
- perimeter support structure made of rectangular-section steel profiles
- epoxy-coated steel tube headers
- manual movement by 2 cranks with folding handle
- legs supplied with plastic feet

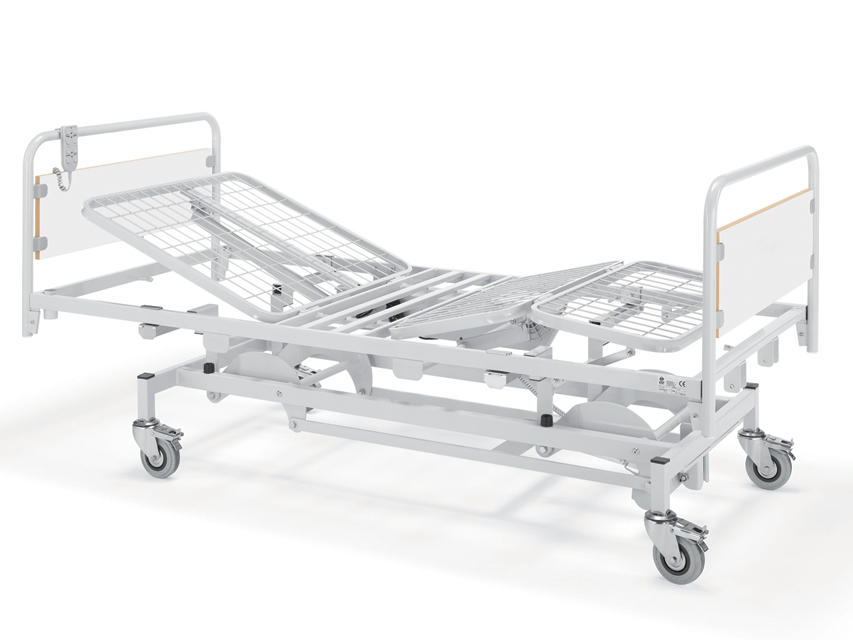

BED 3 LEGS - electric variable height - with wheels

3-article/ 4-sectional bed adjustable in height via 24 V DC electric motor and hand control.

- 3 joints/ 4 sections
- perimeter support structure made of rectangular-section steel profiles
- steel tube heads coated with epoxy glass
- manual movement by 2 cranks with folding handle
- legs supplied with plastic feet

HEIGHT-ADJUSTABLE ELECTRIC BED

Hospital bed with 3 joints and 4 sections, with electric height and platform adjustment, Trendelenburg and reverse Trendelenburg positions (15°).
All steel parts are epoxy powder coated.
Adjustable back section with electric actuator with anti-crushing and rototranslation function to avoid abdominal compression.
On both sides of the bed there are CPR handles for emergency manoeuvres.
Leg section adjustable by snap mechanism in 6 positions.
Remote control for maintaining or deactivating the position.
The hand control adjusts the backrest, bed platform height, leg and foot sections, comfort position, TR and RTR.

Made in Italy.

Bed weight: 130 kg
Dimensions: 110x225xh 91 cm
4 wheels Ø 150 mm with central braking system with directional control
Compartment for lifting pole and drip pole
4 technopolymer side rails, individually foldable
Moulded, removable head/foot panels with integrated grab handles useful for movement Min/max bed platform height: 380-780 mm
Max. backrest adjustment: 71
Max. leg/foot height adjustment: 30°
Trendelenburg/Reverse Trendelenburg: 15°
Min/max height: 835-1245 mm
Max. overall width/length: 1010/2260 mm (with bumper and side rails)

MATTRESS - 1770x720x100 mm - optional

Polyurethane foam, density 30 kg/m3.
Radiant, antimicrobial, latex-free and CFC-free.
Odourless and fireproof.
With 100% polyester cover, washable.

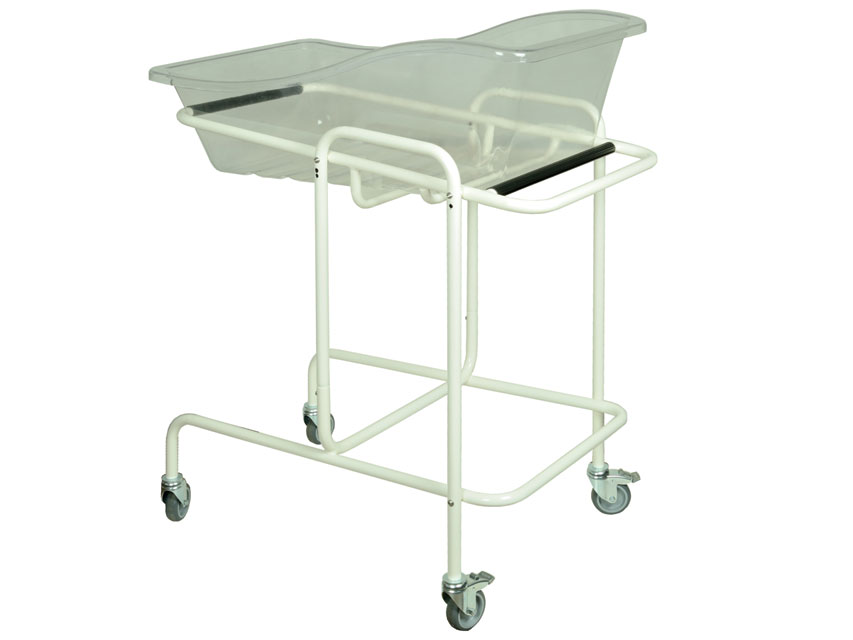

BABY CRIB with trolley

Transparent unbreakable plastic cradle with rounded edges and ventilation holes.
Curved and welded tubular steel frame, painted with epoxy powders.
The shape of the trolley allows horizontal and Trendelenburg recline and side-by-side use with a bedside table.
4 synthetic rubber wheels Ø 75 mm, two of them with brake.
Weight: 15 kg.
Max. load: 10 kg.
Manual: GB, FR, IT, ES.
Supplied disassembled.

Dimensions: 83.5x52.5xh 90 cm

Made in Italy.

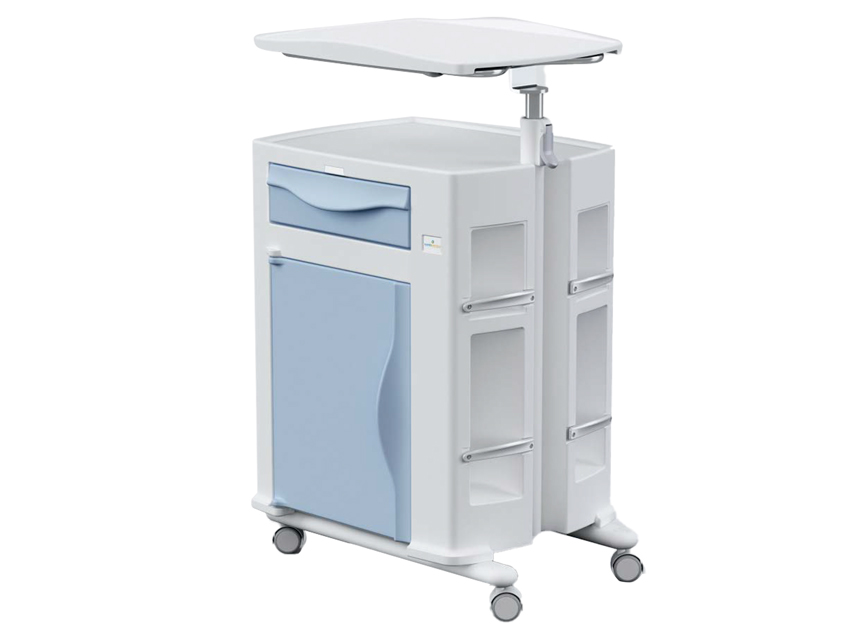

OLYMPUS BEDSIDE TABLE WITH SIDE TABLE

Double-sided bedside tables made of polyethylene.
The inner compartment has a removable plastic shelf and a removable grille at the bottom for ventilation.
The side panels include a plastic towel rail, two cup holders and two bottle holders, all with retaining bars.
Moulded polyethylene drawers and doors with integrated handles.
Height-adjustable serving tables with epoxy-coated steel frame and raised edges to prevent objects from toppling over.
360° rotation and horizontal tray manoeuvrability.
Four Ø 55 mm twin swivel castors.

Made in Italy. Dim.: 61.5x48.5xh 91 cm
Weight: 21.5 kg
Drawer compartment dimensions: small: 36x10xh 8,5 cm / large: 36x18xh 8,5 cm
Internal compartment dimensions: 32,5x38xh 44 cm

Serviletto table dimensions: 57x44 cm
Serviletto side table height: 91 - 121 cm
Side table se

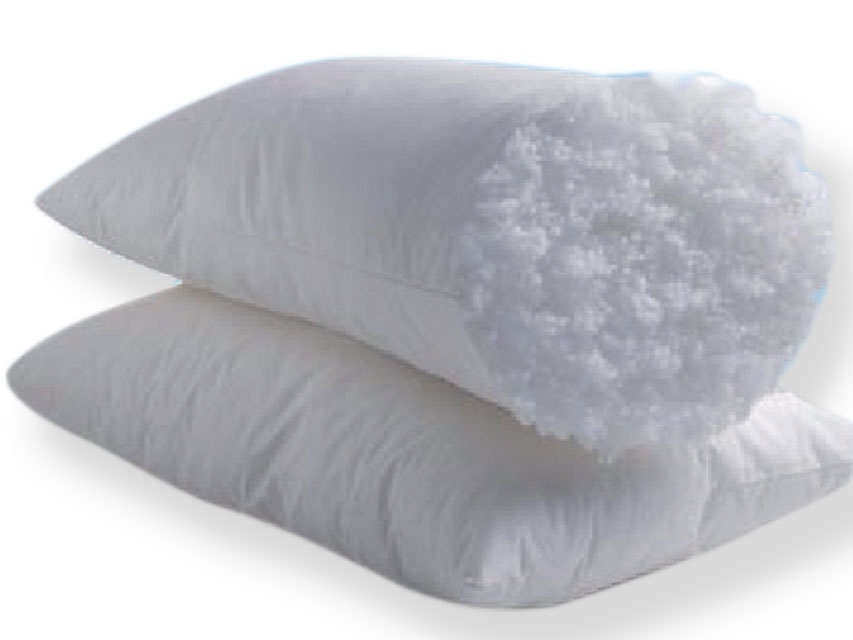

SWEET DREAM CUSHION 50 x 80 x 18 cm

Polyester filling and lining washable at 40°C.
Flame retardant.

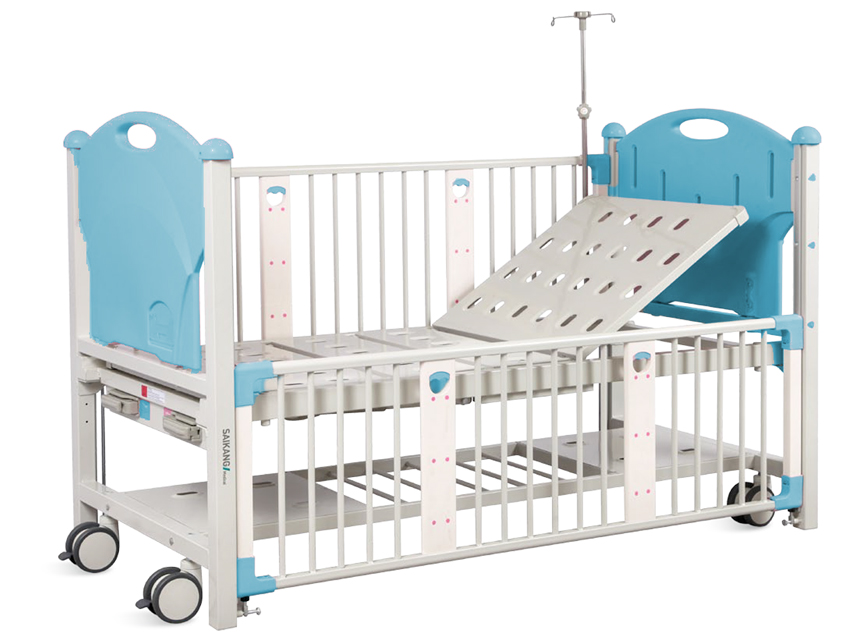

PEDIATRIC CRIB - 2 cranks - blue

Paediatric cot with bent and welded steel frame.
Plastic parts made of ABS material and painted with epoxy powders.
The ends of the cots are made of blow-moulded PP to protect the bed and the patient.

Side rails
Aluminium alloy liftable side rails with 8 cm distance between the protective bars. 3 height adjustments, anti-pinch system to protect children's hands

Cradle rod
Stainless steel tubing rail, 15 kg load capacity

Manual control
Mechanical cranks to control back and leg lifting

Shoe rack
Storage and shoe rack

Castors Ø 12.7 cm (5")
Castors with brake

Platform
Concave ventilation holes are shaped to ensure high air permeability and effectively prevent pressure sores Dimensions: 1880x900xh 1260 mm
Bed height: 585 mm
Mattress platform: 1770x720 mm
Backrest adjustment: 0-75° (± 10°)
Leg adjustment: 0-35° (± 10°) 1 set of full-length side rails
4 air springs
1 stainless steel carrying rod 15 kg capacity
Shoe rack
4 hose rod attachments (2 on each headboard)
2 drainage hooks
