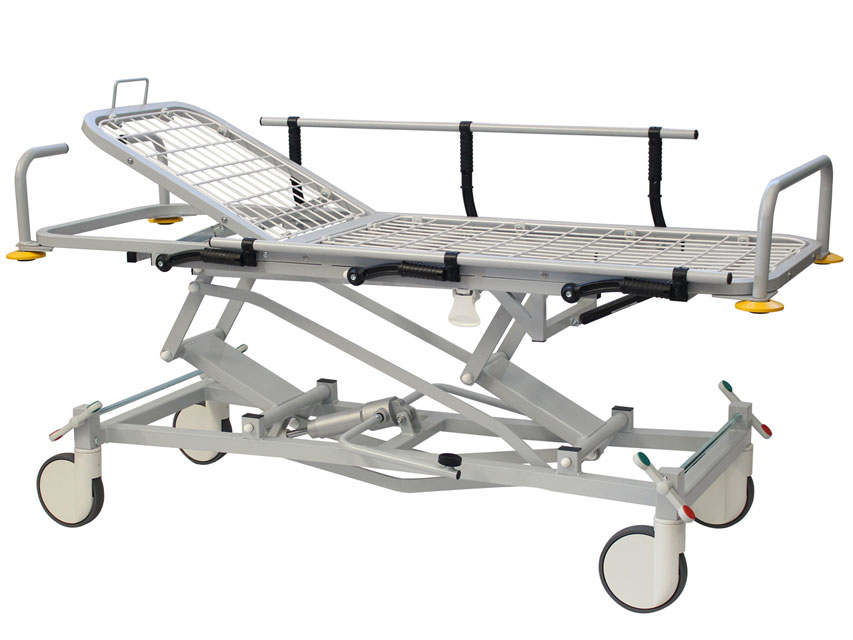

BARELLA with adjustable height, TR and RTR

Sturdy, comfortable, innovatively designed and very easy to use stretcher. Height-adjustable thanks to a hydraulic pump with foot pedal on both sides.
Extremely comfortable side rails, easy and quick to fold.
The removable upper net ensures optimal hygiene.
Equipped with pushing handles, 4 bumpers at the corners and a universal bottle holder.
Reclining headrest via two racks activated by the central handle.

Wheel diameter: 200 mm with total and simultaneous brakes; one of the four wheels has a directional brake. Brake activation via 4 side pedals. The frame joints rotate on self-lubricating sintered threaded inserts.

Trendelenburg (10°) and anti-Trendelenburg (+10°) positions can be easily achieved thanks to the handle on the upper side plate, which activates a gas spring (600N) for millimetric adjustment.
The frame is made of round and rectangular tubing and is painted grey and white with epoxy powders.

Dimensions: 199x76xh 52/87 cm (without mattress).
Load capacity: 130 kg.
Weight: 90 kg

Made in Italy.

MATTRESS 190x68xh 8 cm blue

45% polyester, 55% polyurethane.
Fireproof, Class 1.
Density: 30 kg/m3 ±5%.
Antistatic and antibacterial

HOLDER ROD with 2 plastic hooks

Oxygen tank holder

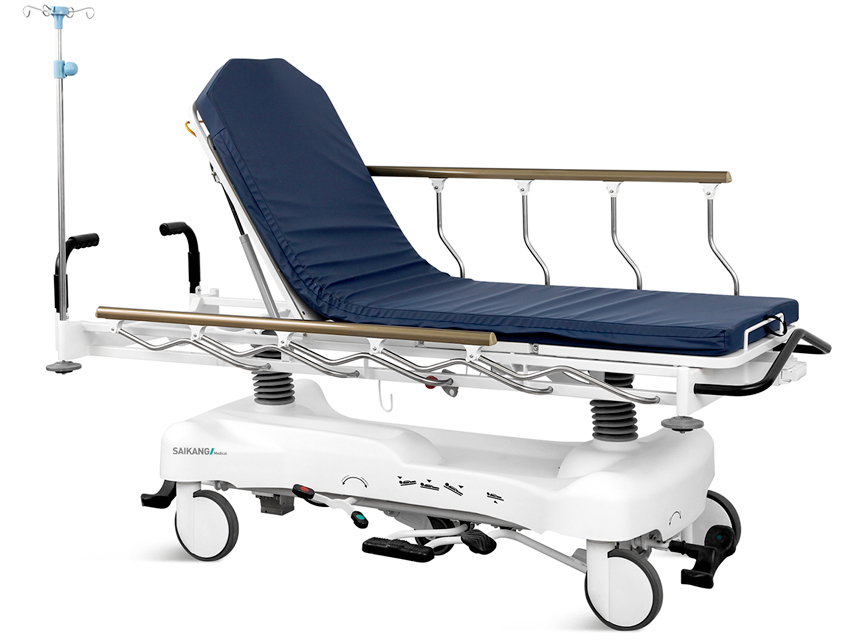

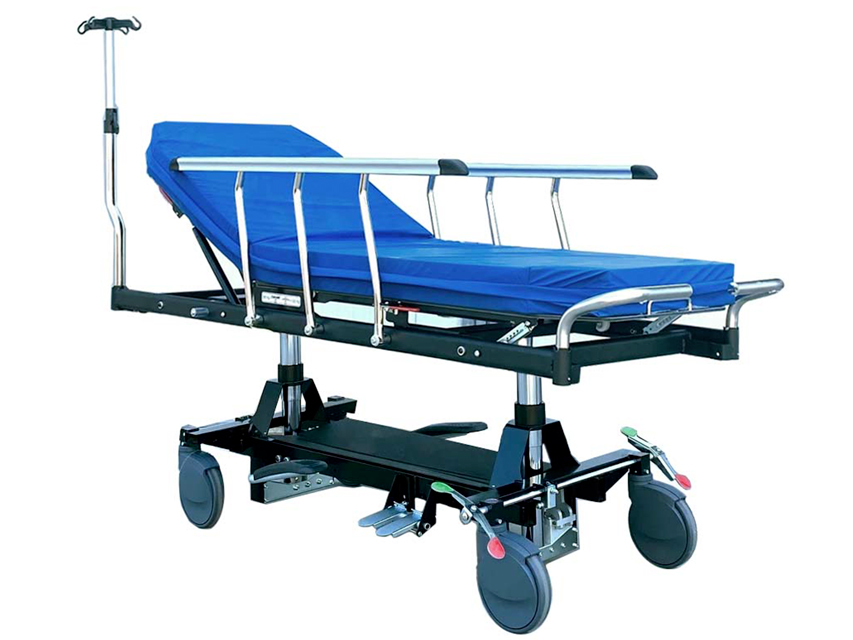

VARIABLE HEIGHT HYDRAULIC TROLLEY with TR and RTR

Metal stretcher with aluminium alloy folding side rails and two hydraulic pumps to adjust weight and set Trendelenburg and reverse Trendelenburg positions.
4 double wheels Ø 20 cm, lockable via pedals on both sides. Waterproof PU mattress.
4 detachable Ø 74 mm shock-absorbing castors to protect bed and patient from shocks during transport.
Stainless steel bed rail with plastic hooks.
X-ray transparent bed platform.
Central wheel for easy directional control.

Multilingual manual: GB, FR, IT, ES, PT, DE, GR, RO. Dimensions: 2100x850 mm
Height adjustment: 630930 mm
Backrest adjustment: 075° (± 10°)
Safe working load: 220 kg
Legrest adjustment: 045°.
Trendelenburg: 015°
Trendelenburg reverse: 015° 1 set of emergency handles
4 attachments for post rods
1 set of folding side rails
1 mattress
1 set of tubular rails

VARIABLE HEIGHT HYDRAULIC TROLLEY ON COLUMNS WITH TR AND RTR side rails included

Stretcher with 1 joint, 3 sections and radiolucent HPL horizontal top.
Headboard adjustable with gas-operated devices up to 80°; backrest adjustable with gas-operated devices and footboard adjustable by rastomat.
Epoxy powder-coated steel frame, multifunctional supports at corners for inserting up to two accessories per corner, such as console rods, monitor holders or others.
Base with protective cover and compartment for oxygen cylinders and other objects.
4 swivel castors Ø 200 mm and 1 with directional lock.
Centralised simultaneous braking system by pressing a pedal located on the footboard.
Folding handle on the side of the footboard.
Pair of folding side rails with compass movement, made of extruded aluminium alloy with automatic lock and double down position.
Optional height-adjustable side rail with 4 hooks.
Large foot pedal on both sides of the stretcher to adjust the height from 550 to 850 mm.
Foot pedals on both sides for lowering and reaching Trendelenburg and reverse Trendelenburg positions (18°/ + 18°).
Control pedal with three positions: 1 free, 1 directional and 1 total lock.
Suitable for transport over long distances.

Made in Italy. Total dimensions: 2060x820xh 550850 mm
Weight dimensions: 1950x650 mm 105 kg
Max backrest inclination: 80°
TR / RTR: 18° / + 18°
Max. patient load: 260 kg
Standards: RDM 2017/745; Medical Device Class I

Optional BASKET

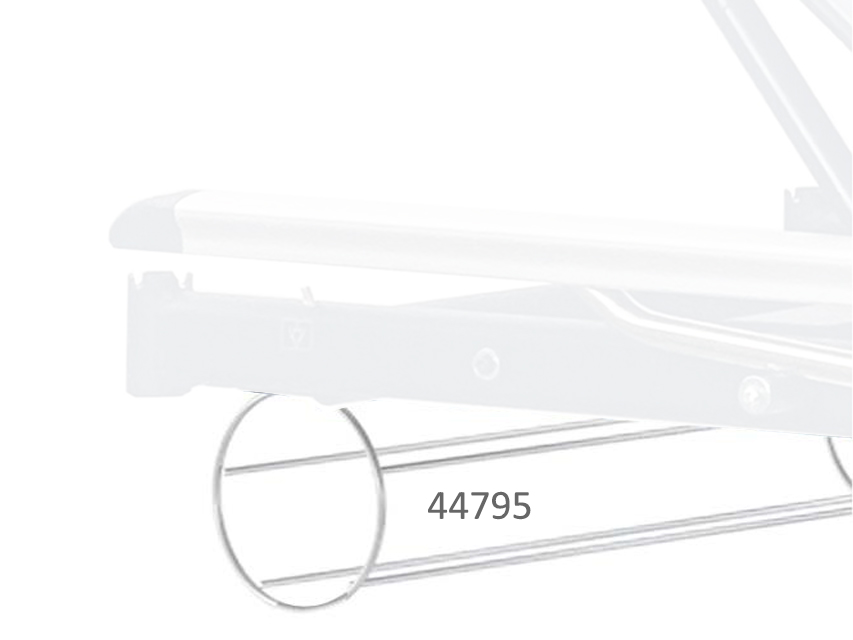

OXYGEN BOTTLE HOLDER optional

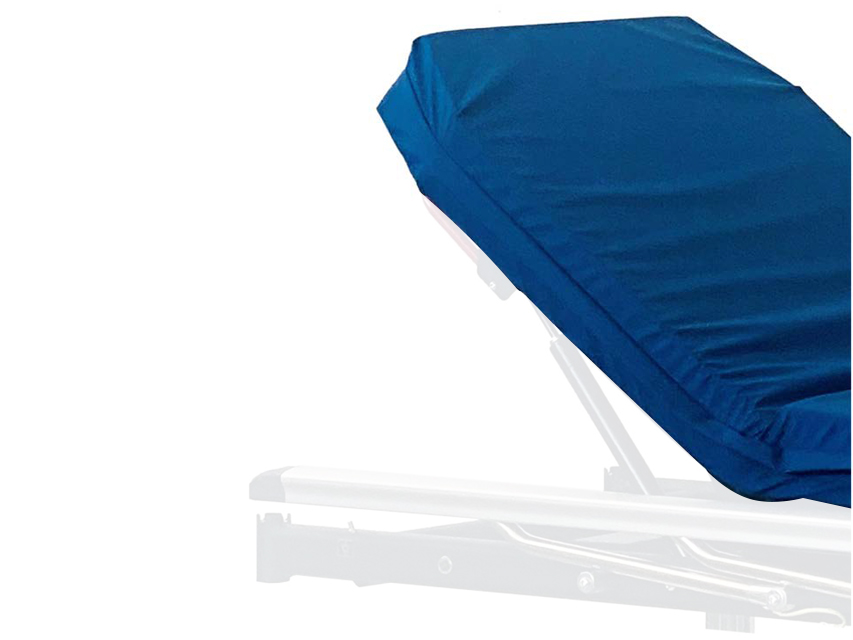

WATERPROOF MATTRESS, HYGIENE, RADIOTRASPARENT 6 cm optional

Mattress with non-toxic, washable, waterproof cover.
The mattress allows for heart massage.

optional 4-hook peg rod
