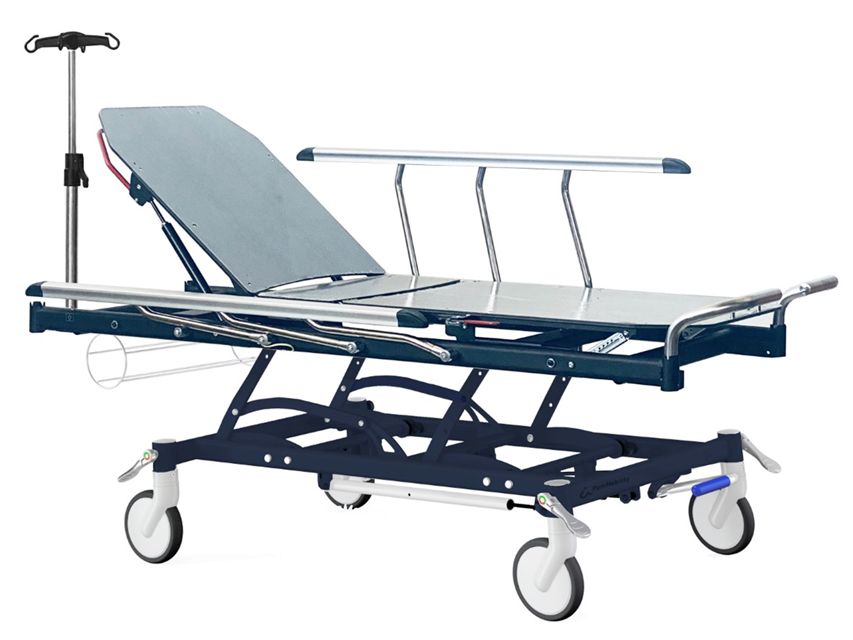

ADJUSTABLE HEIGHT BARREL TR and RTR

Two-sectional, height-adjustable stretcher with backrest adjustable by means of gas pressure devices up to 65°.
Radiolucent HPL top, steel frame and long painted steel leg section.
Possibility of inserting a storage basket and four support rods, two in the headboard and two in the footboard.
Side impact protection on the frame.
Two folding handles on the side of the headboard and one on the side of the footboard, all in painted steel, for a safe and comfortable grip.
Adjustable height 530 890 mm via a large foot pedal located in the footboard area.
All steel parts are epoxy powder-coated.
Trendelenburg and anti-Trendelenburg position (±18°) can be set manually via a lever located on the side of the footboard.
Sturdy steel side rails, foldable with circular movement.
Four 200 mm diameter castors with simultaneous brake controlled by central foot pedal, directional brakes on the headboard.

Made in Italy. Total dimensions: 2000x825xh 530890 mm
Table dimensions: 1900x630 mm
Max backrest inclination: 65°
Safety load capacity: 230 kg
Standards: 2017/745 EU, Medical Device Class I

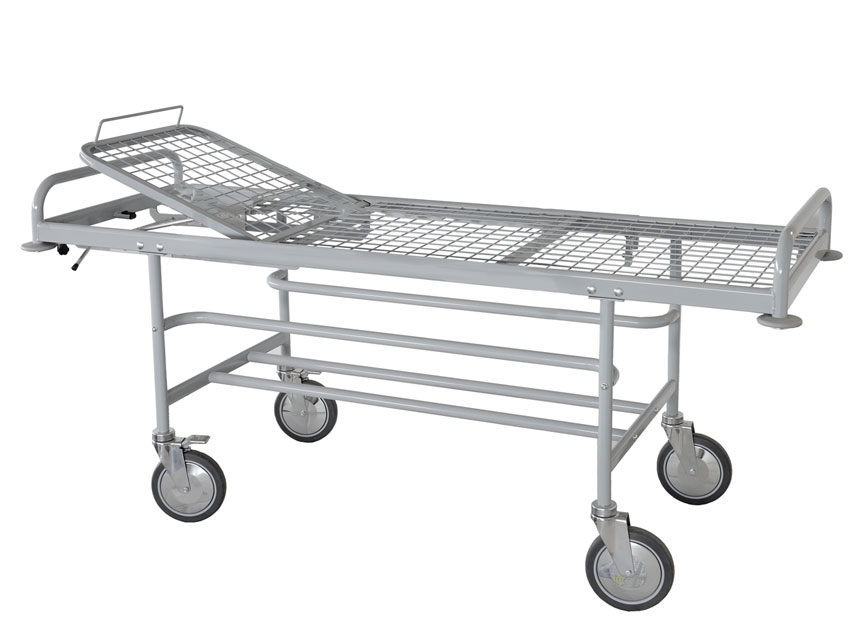

BARELLA CORSIA

Main features:
Floor frame: made of 50x25x2 mm half-oval section steel tube.
Lower frame: made of steel tube Ø 30x1.5 mm and oval-section steel tube 40x20x1.5 mm.
Pull/push handle: steel tube Ø 30x1.5 mm section.
Finish: epoxy powder-coated; standard RAL 7040 grey.
Mesh top: two sections with grids made from Ø 5 mm steel bars and 50x50 mm square mesh.
Back section: square cross-section 25x15x1.5 mm, adjustable in 5 positions by means of a rack.
Castors: 4 swivel castors made of grey synthetic rubber Ø 200 mm, two of which have independent brakes.
Bumpers: at the four corners, made of grey acid-proof, shock-proof resin.

Supplied unassembled.
External dimensions 202x71xh 90 cm
Net height: 78 cm.
Capacity: 135 kg.

Manual: GB, FR, IT, ES.

SPACE-SAVING FLAT PACKAGING

Made in Italy.

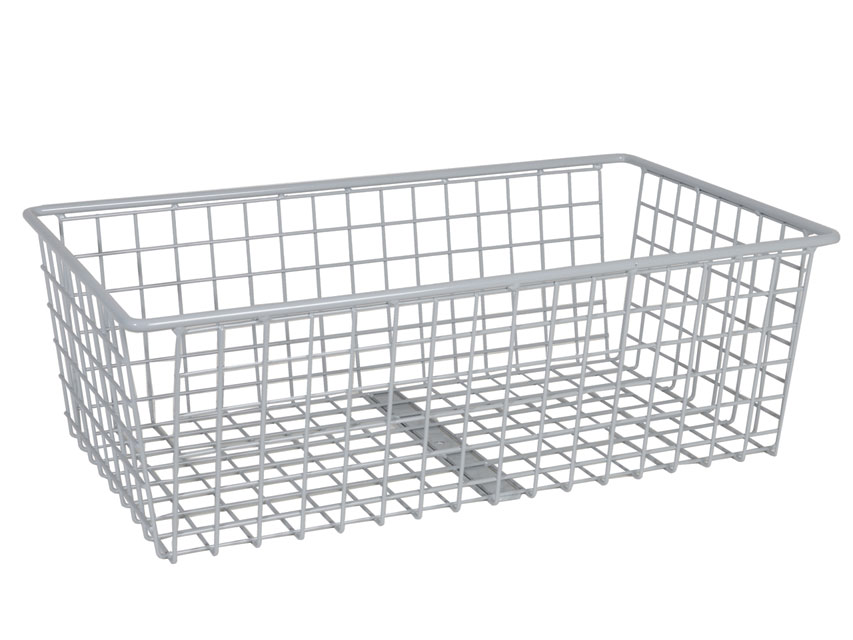

Grey painted steel basket.

Accessory for aisle stretcher (cod. 44760)

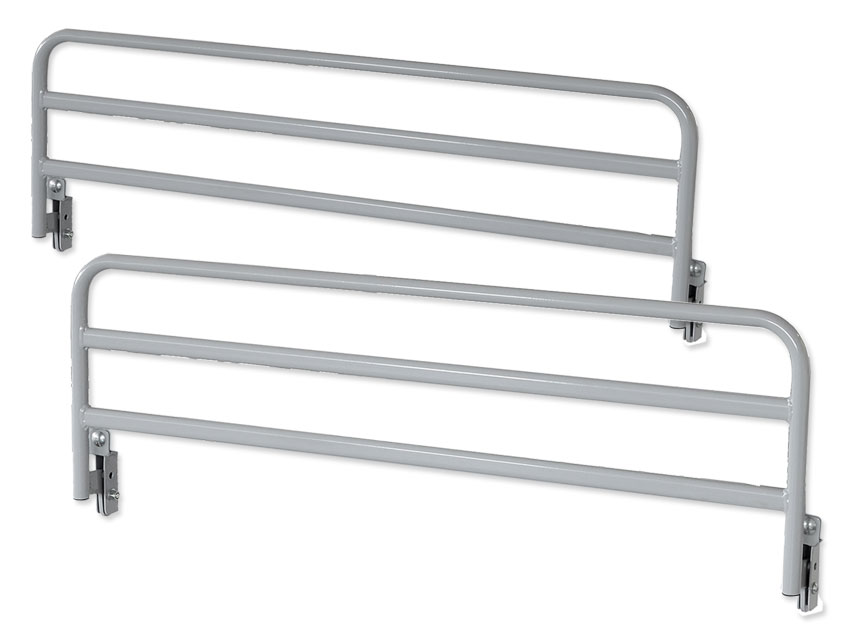

Pair of side rails with automatic fastening system.

Accessory for lane stretcher (cod. 44760)

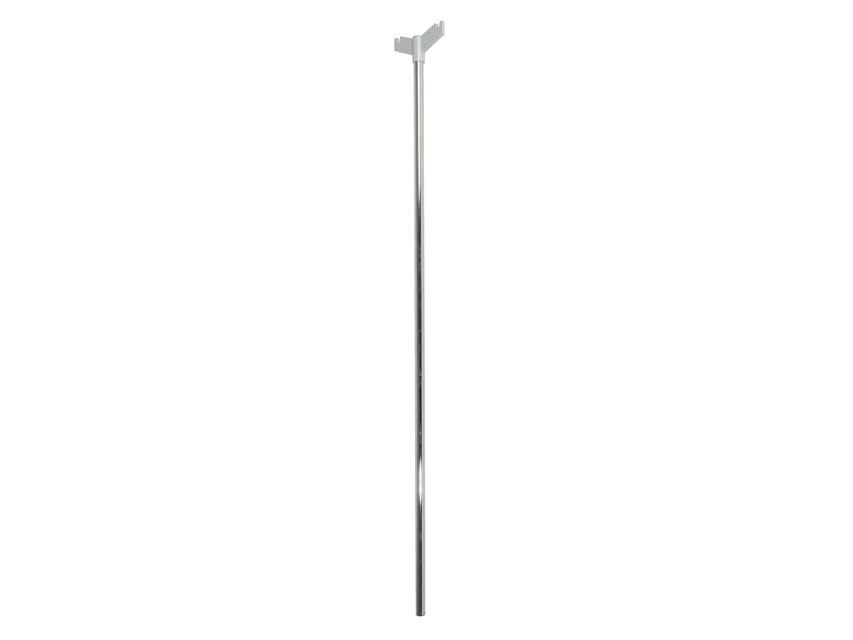

Hanger rod with two hooks.

Accessory for aisle stretcher (cod. 44760)

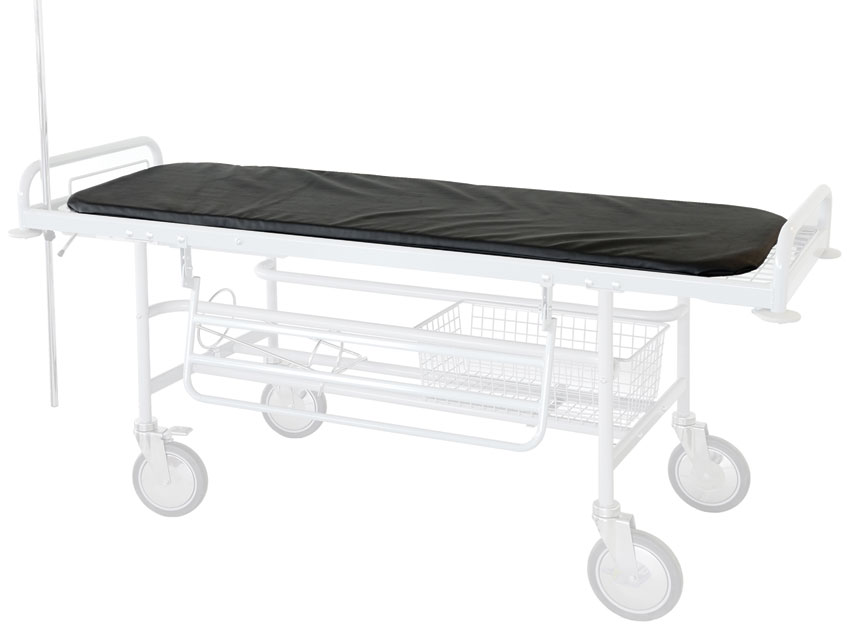

Fire-retardant skay mattress.

Class 1
Dimensions: 182 x 64 x 4 cm

Accessory for lane stretcher (cod. 44760)

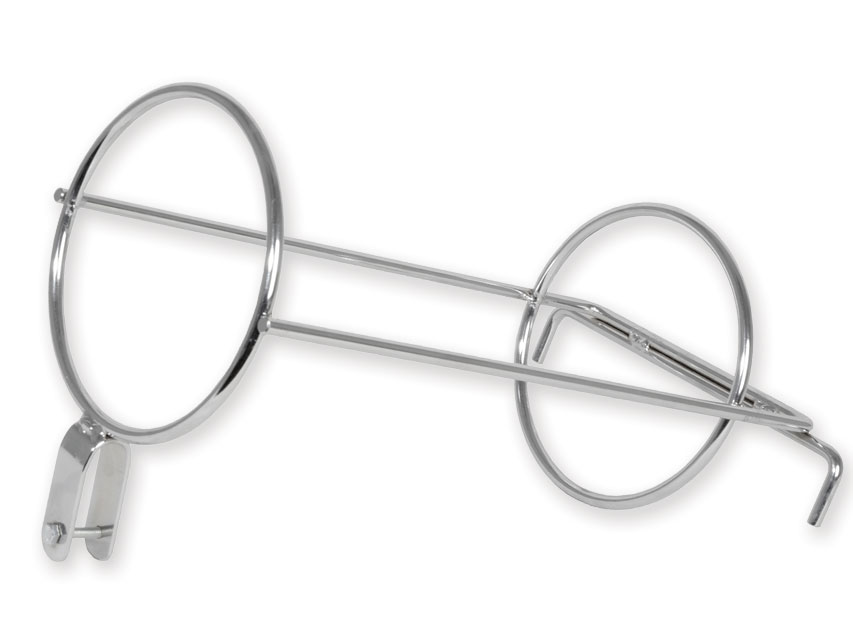

Chrome-plated steel cylinder holder (for cylinders up to 41 cm and Ø 15.5 cm).

Accessory for lane stretcher (cod. 44760)

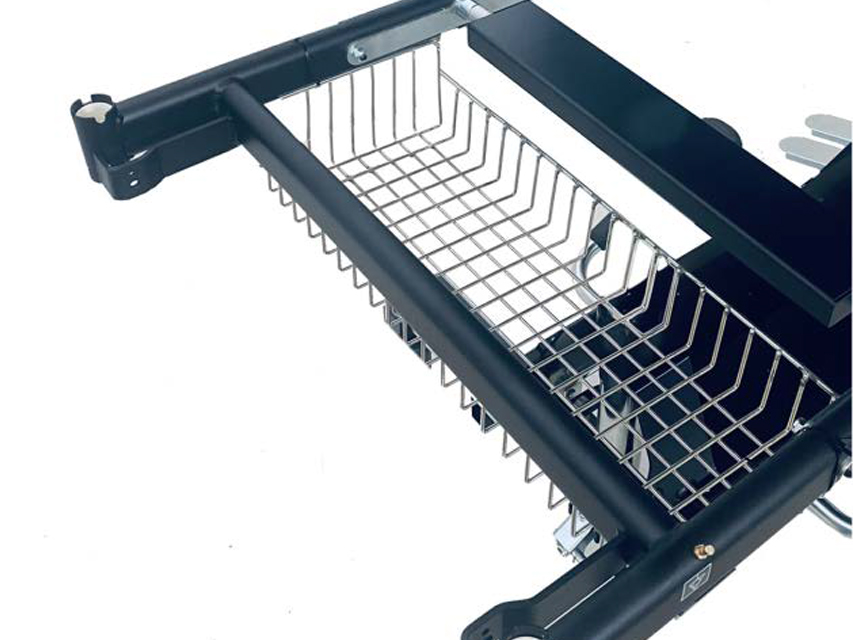

Optional BASKET

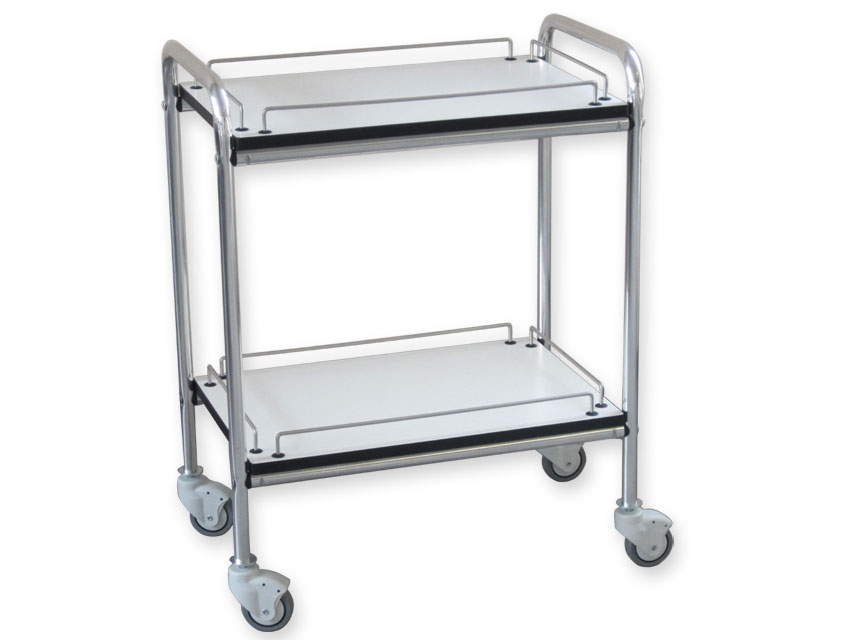

GIMA TROLLEY 2 small: 60x40xh 77 cm weight 11 kg

Practical trolley with aluminium body and handles, 2 white 18 mm bilaminate shelves, black PVC edges with rails.
Two large handles facilitate both transport and lifting of the trolley.
4 jointed nylon castors with a diameter of 80 mm.
Maximum load capacity per shelf: 40 kg.

Supplied disassembled.

Made in Italy.

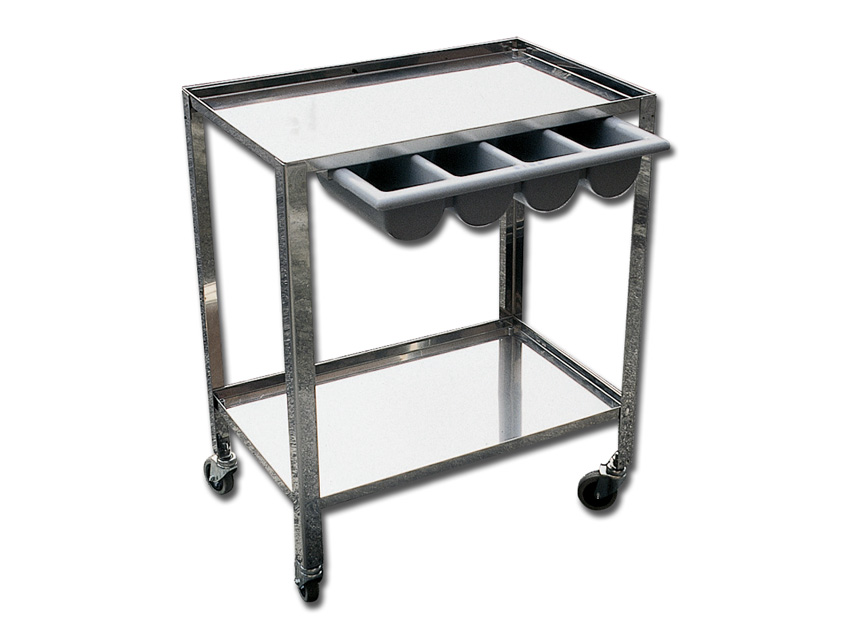

ALL-STAINLESS TROLLEY

All-stainless steel AISI 304 trolley with plastic drawer divided into 4 compartments; 2 shelves with raised edges (3.5 cm) on 4 sides.
Equipped with 4 rubber wheels Ø 80 mm (2 with brakes)

Measurements: 70x50xh 82 cm.
Maximum capacity per shelf: 25 kg.
Supplied disassembled.

Made in Italy
