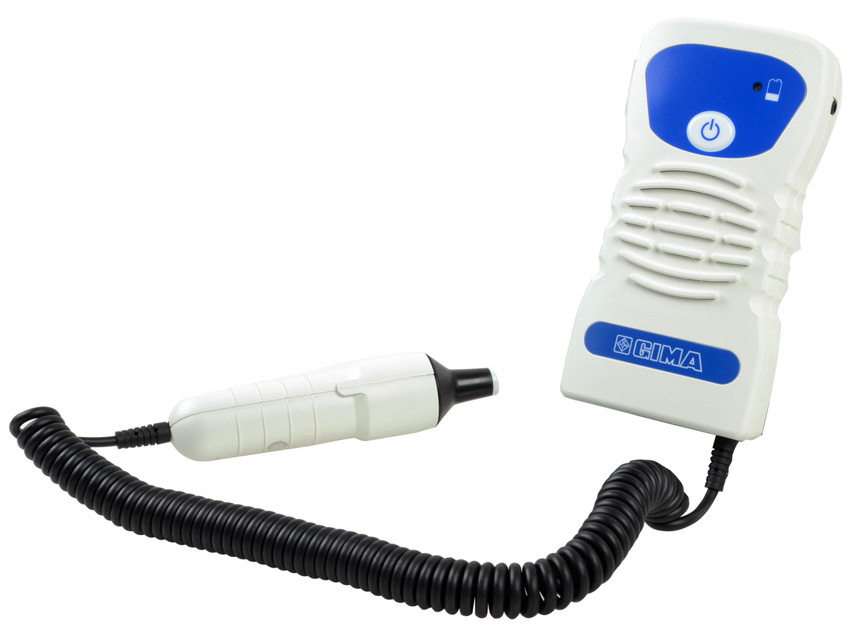

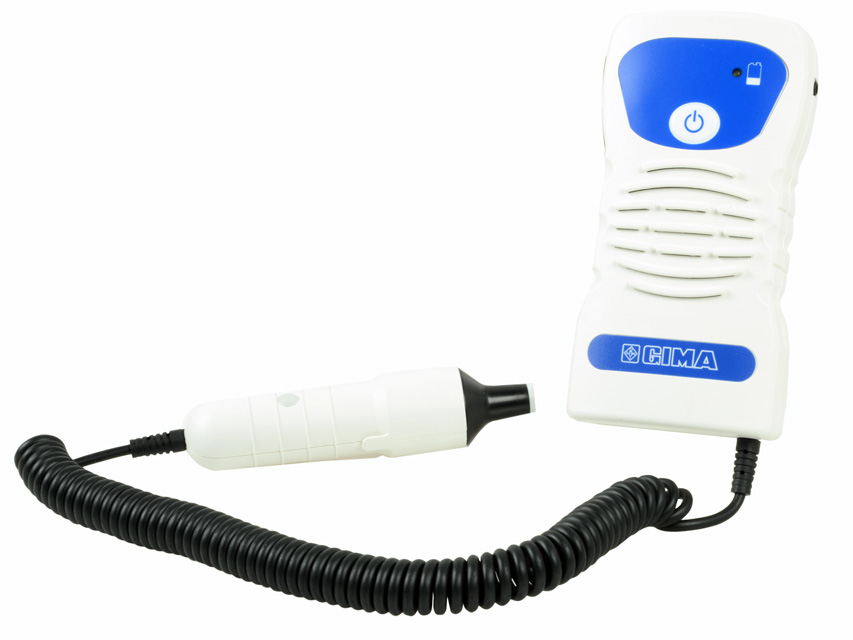

High sensitivity, light weight and small size.

Its probes are ideal for use by general practitioners or specialists for routine vascular examinations in emergency rooms, for localising blood vessels and also by urologists, diabetologists and gynaecologists.

Signals of flow or heart rate
heart rate are easily detected by the probe, while an internal processor minimises background noise.

There is a built-in loudspeaker with adjustable volume from a rotary knob.

2-year warranty.

Supplied in an elegant bag with probe, cable, gel and manual in 7 languages: GB, FR, DE, IT, ES, GR, PT. - Ultrasound
- Frequency: 2 or 5 or 8 MHz
- Transducer: 2-crystal narrowband probe
- Emission: <15 mW/cm2
- Audio: 300 Hz - 4 KHz

- Controls
- Button: 1 button (for on/off unit)
- Control: volume control
- Indicators:

High sensitivity, light weight and small size.

Its probes are ideal for use by general practitioners or specialists for routine vascular examinations in emergency rooms, blood vessel localisation and also by urologists, diabetologists and gynaecologists.

Signals of flow or heart rate
heart rate are easily detected by the probe, while an internal processor minimises background noise.

There is a built-in loudspeaker with adjustable volume from a rotary knob.

2-year warranty.

Supplied in an elegant bag with probe, cable, gel and manual in 7 languages: GB, FR, DE, IT, ES, GR, PT. - Ultrasound
- Frequency: 2 or 5 or 8 MHz
- Transducer: 2-crystal narrowband probe
- Emission: <15mW/cm2
- Audio: 300Hz - 4 KHz

- Controls
- Button: 1 button (for on/off unit)
- Control: volume control
- Indicators: ba

Bidirectional 4 MHz Doppler probe for code 33230.

8 MHz bidirectional Doppler probe for code 33230.

Rechargeable battery for:

- 33223 ECG 12 CHANNELS 1200G - Wi-Fi
- 33224 ECG 12 CHANNELS 1212G

Rechargeable Li-Ion battery

RECHARGEABLE Li-Ion BATTERY for 33357 (as of N.S. T8xxxxx) and 33352 - spare part

Rechargeable Li-ion battery

Accessory/replacement for:
ECG CARDIOPOCKET 3-channel (cod. 33232)

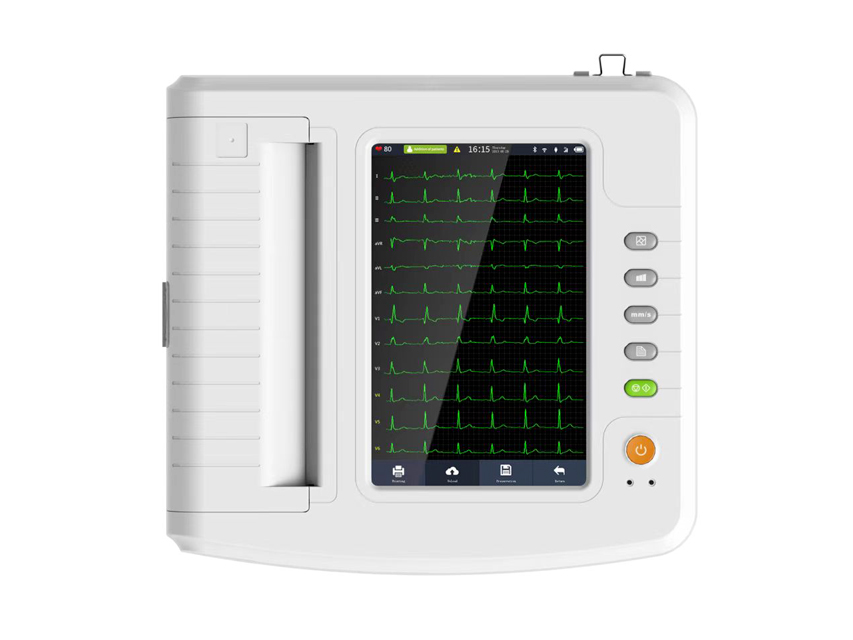

12-CHANNEL ECG - 1212G - with software

Simultaneously detects 12-lead ECG signals and prints ECG traces with integrated thermal printer.
Recording and display of ECG traces in auto/manual mode; automatic measurement, analysis and diagnosis of ECG trace parameters.

- 10.1" LCD colour display 1280x800 dot, high resolution
- 3/6/12-lead ECG display for abnormal rhythm observation
- power supply via AC/DC mains or integrated rechargeable lithium battery
- up to 10 hours standby time and more than 3 hours continuous printing time
- recording of up to 1,000 ECG traces
- self-measurement and self-interpretation of routine ECGs provide measurement results and conclusions for self-diagnosis
- self-diagnosis conclusions for HR, PR Interval, P Duration, QRS Duration, T Duration, QT/QTc Interval, P/QRS/T Axes, R(V5), S(V1), R(V5)+S(V1)
- large integrated memory for at least 4000 patient records
- transmission via LAN cable, USB. automatic case loading, downloading and printing of reports
- medical records exportable in other formats (dat, pdf, xml, bmp, jpeg, png etc.)

CD software in GB, FR, IT, ES, PL, RO, SI, TR.

Dimensions: 34x32xh 8.6 cm
Weight: 5 kg Input channel: Float protection and defibrillation
Leads: 12 standard leads
Patient leakage current: <10µA
Costante temporale: =3,2s
Impedenza di ingresso: =2,5 MO
CMRR: >105 dB
Print speed: 12.5 mm/s, 25 mm/s, 50 mm 1 lead cable
1 set limb electrodes
1 set precordial electrodes
1 power cable
Thermal paper 210 mm x 20 m
Rechargeable battery
User manual (GB, IT)
1 Grounding cable
Software CD

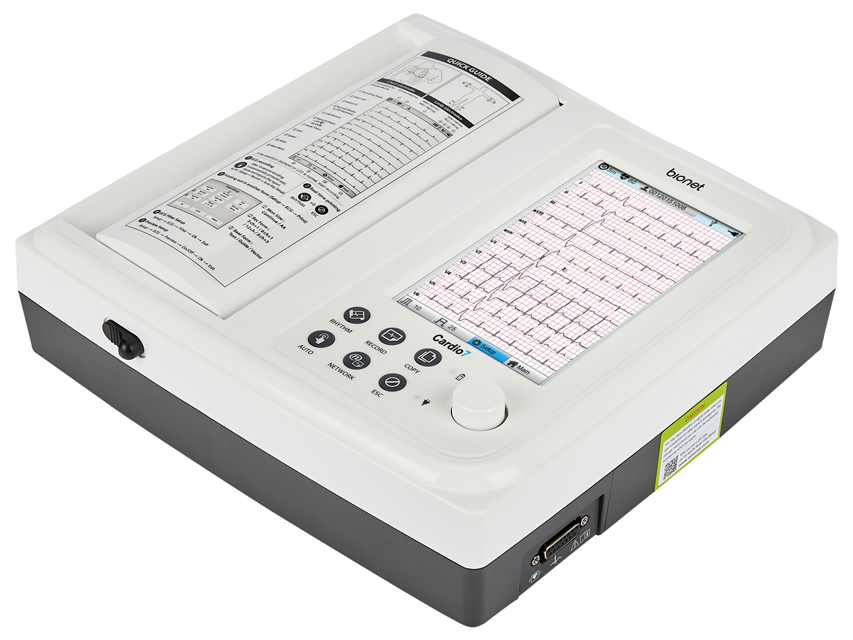

NEW ECG CARDIO 7: 12 CHANNELS WITH TOUCH SCREEN

The new Cardio 7 is an electrocardiogram (ECG) device capable of measuring and recording 12 channels of cardiac signals in adult and paediatric patients.
The device allows you to record and print out cardiac signals, review them using various display modes, and perform automatic detection of cardiac disorders.
It is also possible to manage digital files by transferring the stored data to a networked PC. The device is protected against the effects of defibrillator discharge.

- over 120 types of results based on advanced Minnesota code interpretation, HRV (heart rate variability analysis)
- memory for up to 200 patients
- real-time preview
- PC compatible via LAN or USB stick
- selectable multilingual software (GB, FR, IT, ES, DE, PT, PL, RO, TR, RU, KR)
- electrode error message
- pace-maker detection
- automatic arrhythmia detection
- 1-channel heart rhythm recording for an extended period (1, 5 and 10 minutes), then printing on A4 or Letter paper
- large, clear 7" TFT LCD display (800x480)
- touch screen for easy operation
- full ECG lead function: 10 leads, 12 channels, simultaneous continuous acquisition
Dimensions: 300x200xh 97.5 mm, approx. 3.5 kg
Recording channels: 3 channels + 1 rhythm, 3 channels + 3 rhythm, 6 channels + 1 rhythm, 12 channels, 6 channels + 1 beat ratio channel
Sen Patient cable - 10 leads
LAN cable
1 bottle of ECG gel (70 g)
1 power cable
1 manual (GB, IT)
1 paper roll
4 peripheral electrodes
6 precordial electrodes
BMS Plus (GB, IT)
Rechargeable Li-Ion battery

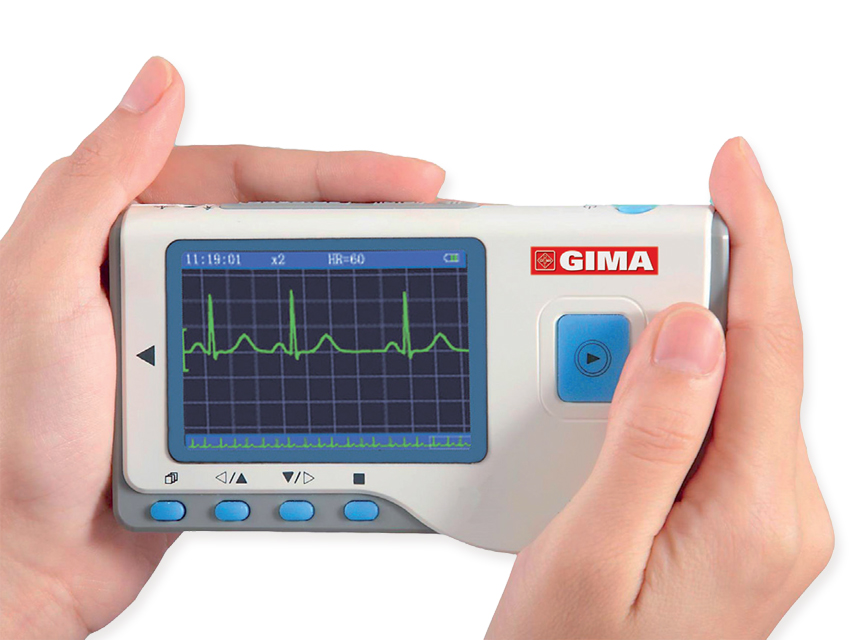

CARDIO-B with Bluetooth for wireless transmission. Compatible with Android for downloading data to smartphones or tablets, communication protocols available on request.

PALMARY ECG: Product indicated for general practitioners or for home use by users who may be suffering from cardiovascular diseases such as hypertension and coronary artery disease. The device allows daily monitoring of cardiac status. Measurements can be stored and used as a reference for clinical applications.

The ECG can be measured in four ways: on the palm, leg, chest or through the classic cable and electrode measurement.

- compact, portable and easy to use
- 30 second trace + measurements
- memory: 1200 ECGs. 10 hours of continuous tracing can be stored
- analysis and reports of 17 types
- USB 2.0 interface with optional cable and PC software
- measurement possible via optional ECG cable

Supplied with manual and multilingual box (GB, FR, IT, ES) - ECG bandwidth: 1 Hz - 40 Hz
- Pulse measurement range 30 - 240 bpm ± 2 bpm
- LCD display: 240 x 160 dot matrix
- Display size: 57.6 x 40 mm
- Power supply: 2 AAA batteries
- Dimensions: 125 x 70 x 21.5 mm
- Weight: 106 g
