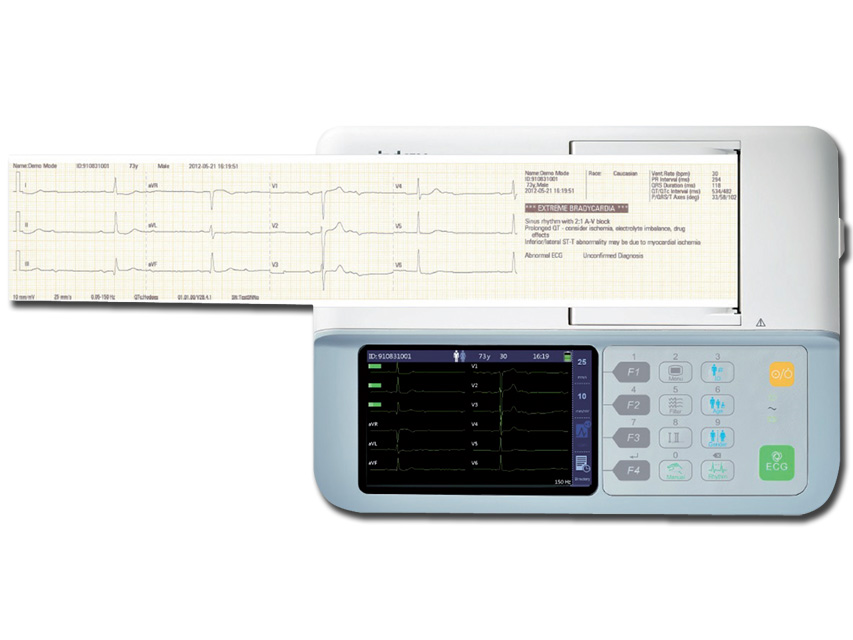

BENEHEART R3 is a lightweight, portable cardiograph for resting ECG diagnosis.
Reliable analysis - Glasgow algorithm
BeneHeart R3 uses the Glasgow algorithm, one of the world leaders in resting ECG algorithm interpretation.
Great portability - only 1.2 kg
The BeneHeart R3 weighs only 1.2 kg including batteries and is easy to carry.
5-inch colour display
High-resolution 5-inch colour display and a clear display of real-time waveforms for an optimal visual experience.
Practicality of use
The recording paper can slide naturally over the machine's panel so that doctors can affix their signature or add annotations.
Unique recorder - roll or z-fold paper
You can switch from roll paper to compatible z-fold paper at any time. The z-fold paper lever can be stored easily without having to be disassembled.

Glasgow is the first algorithm to take into account factors such as the patient's age, gender, ethnicity, medications and their classification for diagnosis. It improves the diagnostic accuracy of the ECG. It highlights key diagnostic findings so that medical personnel can identify the problem and administer appropriate treatment promptly. POWER SUPPLY:
- Power supply: AC input without external adapter or battery operation
- AC power supply: 100 to 240 VAC ± 10% 60 VA
- Battery type: rechargeable lithium-ion battery 11.1 V typical, 2500 mAh
- Capacity: 6 hours of operation - Cable with banana plugs, IEC
- 4 clamp electrodes
- 6 precordial electrodes
- Glasgow algorithm* in GB, IT, DE
- 1 paper roll
- Rechargeable battery
- User manual in: GB, FR, DE, HU, IT, PL, ES, TR

*Internal software available in

Rechargeable Li-Ion Battery for CARDIOPOCKET ECG (part number 33257) from serial number CD 130730000-1

Rechargeable battery - replacement for 100G digital ECG (Code 33220).

Rechargeable battery for digital ECG 300G (Code 33221), 600G (Code 33222).

ECG display software + USB 2.0 cable - for the new CARDIO-B handheld ECG (Code 33261) from serial number XXS02JL01044 - Jan. 2014.

ECG display software p+ USB 2.0 cable for Cardio-A and Cardio-B handheld ECGs (Code 33259/60/61).

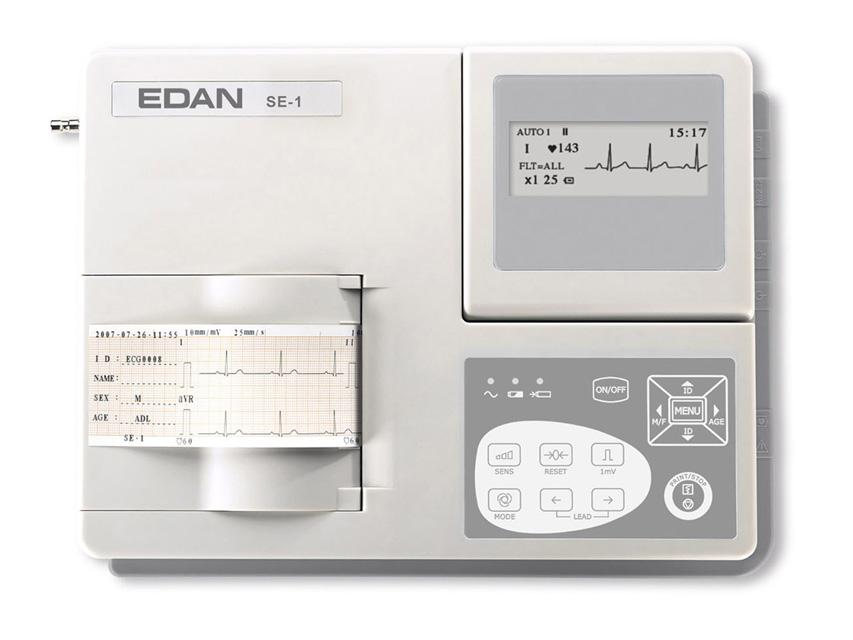

EDAN PORTABLE ECG - 1 CHANNEL

- reclining LCD screen, clear waveforms
- built-in high-resolution thermal printer
- internal rechargeable lithium battery, AC/DC power supply
- digital filter prevents baseline drift and AC and EMG interference
- automatic baseline adjustment
- automatic/manual operation
- detection and alarm for detached electrode

ECG data display and management software for PC
- compatible with Windows XP, 7, Vista (32 bit, 64 bit)
- multi-format reports: XML/SCP/DICOM/PDF/JPG/BMP/TIFF/PNG
- bidirectional communication support with ECG device - Leads: 12 standard leads
- Acquisition mode: Individual
- Accuracy: 2.5, 5, 10, 20, mm / mV
- Input impedance: > 50 MOhm

- Filter:
- EMG filter 35 Hz (-3 dB)
- AC / DFT filter 50 Hz / 60 Hz (-20 dB)

- Modalities - Patient cable
- 1 roll of paper
- 1 bottle of gel
- Rechargeable battery
- Manual: GB, IT. on request: FR, ES, PT, TR
- 4 peripheral electrodes
- 6 precordial electrodes

- LCD monitor: in standard or Cabrera format with possibility of baseline displacement
- High resolution thermal printer (8 dots/mm): prints 1-3 channels in real time with possibility of millimetre grid printing.
- Mod recording - Power supply: internal rechargeable Ni-Cd batteries
- Mains power supply: 100-240V, 50-60 Hz; 200mA
- Battery autonomy: 2.5 hours
- Applied part: CF type
- Input impedance: > 100 Mohm
- Frequency response: 0.05: 145hz
- Cmrr: > 91 dB (3M - 6 precordial electrodes
- 1 paper roll
- 1 bottle of gel
- Battery
- ECG patient cable
- 4 peripheral electrodes
- User manual (English, Italian)
- Quick Start Guide: English, Spanish, Italian

Description not available.

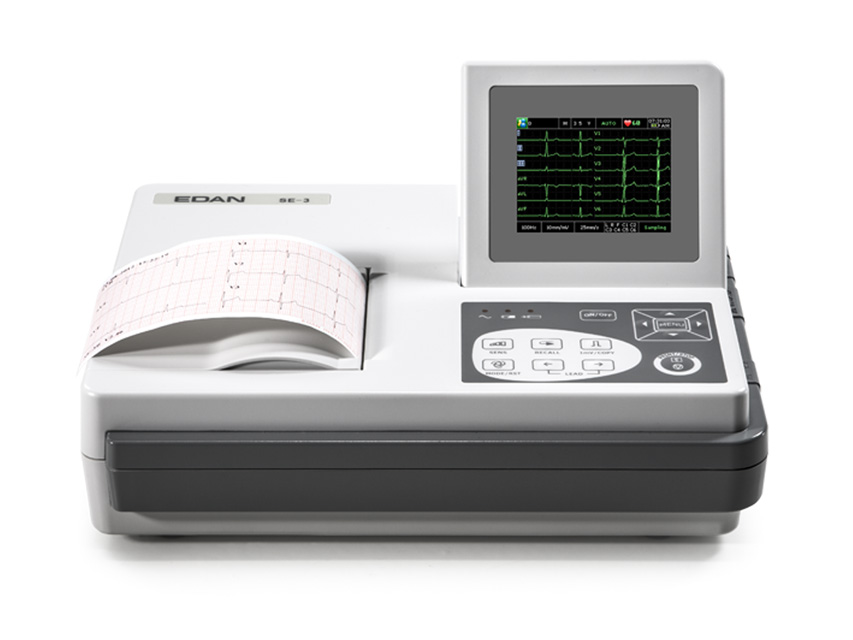

PORTABLE EDAN ECGs - 3 channels

- reclining LCD screen, clear waveforms
- built-in high resolution thermal printer
- internal rechargeable lithium battery, AC/DC power supply
- digital filter prevents baseline drift and AC and EMG interference
- automatic baseline adjustment
- automatic/manual operation
- detection and alarm for detached electrode

The SE-3 3-channel colour model also features
- analysed interpretation with CSE/AHA/MIT database
- simultaneous 12-lead acquisition
- automatic measurement and analysis of ECG parameters
- Automatic/Manual/Rhythm work mode
- barcode scanning for easy data entry
- PC LAN/RS232/USB connection
- printing of 12 leads with external printer on plain A4 paper

ECG data display and management software for PC
- compatible with Windows XP, 7, Vista (32 bit, 64 bit)
- multi-format reports: XML/SCP/DICOM/PDF/JPG/BMP/TIFF/PNG
- bidirectional communication support with ECG device - Leads: 12 standard leads
- Acquisition mode: 12 leads simultaneously
- Accuracy: 2.5, 5, 10, 20, mm / mV
- Input impedance: > 50 MOhm

- Filter:
- EMG 25/35/45 Hz off
- DFT 0.05/0.15/0.25/0.32/0.5/0.67 Hz
- Patient cable
- 1 roll of paper
- 1 bottle of gel
- Rechargeable battery
- Manual: GB, IT. on request: FR, ES, PT, TR, DE, RU
- 4 peripheral electrodes
- 6 precordial electrodes
