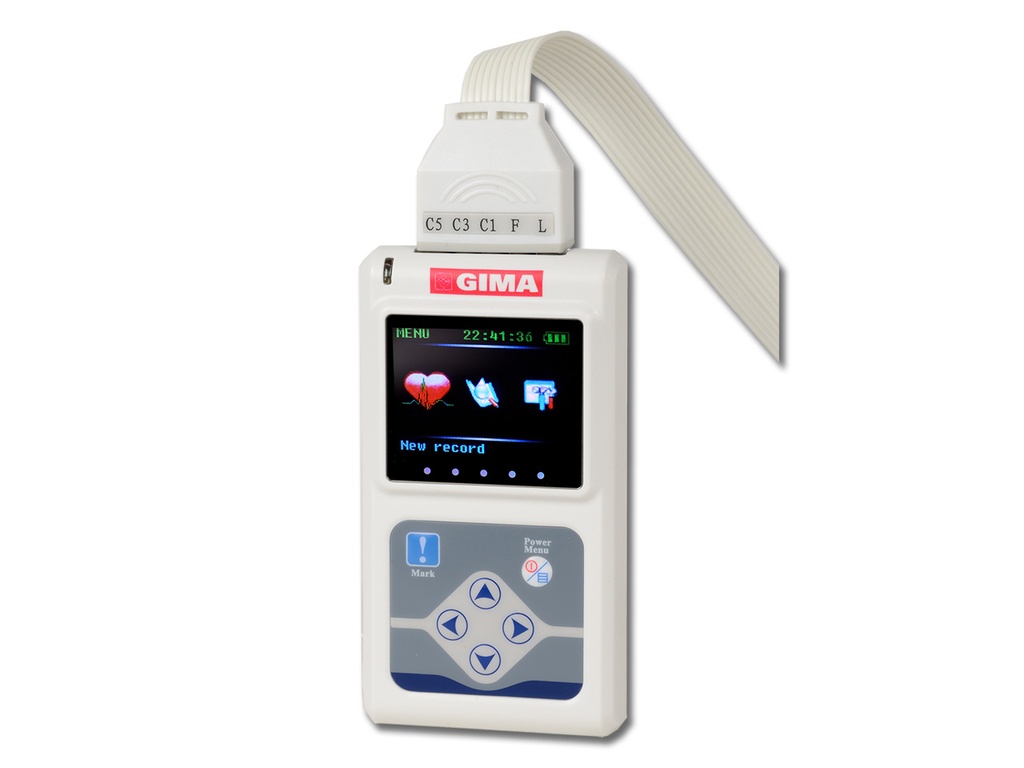

ECG HOLTER + SOFTWARE

The Holter ECG system consists of an ECG recorder with associated software that can be connected to a PC or printer.
The recorder has an internal flash memory that increases the memory capacity of the device. The sampling rate of 1000 readings per second improves the quality of the waveform. The system software is checked by AHA and MIT, ensuring accuracy.

Features:
- software with Windows operating system (GB, IT, PL, PT, RU)
- fast and accurate analysis system
- special R-point fitting system, perfect ST-segment analysis function
- T-wave analysis function of all channels and graphic trend
- ECG graphic trend review
- HR variability analysis system, provides regular SDNN, SDANN, RMSSD, LF, HF, time domain and frequency domain
- QT analysis
- direct acquisition of ECG pacing, without separate channels
- VCG, VLP, TVCG, HRT, TWA function.

Recorder:
- 12 synchronised ECG acquisition channels
- small ECG recorder with OLED colour screen showing the ECG curve in real time and summarising the stored data
- capacity up to 2G
- selectable sampling rate: 200, 500, 1000/sec
- Sampling accuracy: 12 bit
- built-in flash memory to avoid card damage due to continuous insertion
- USB interface
- operating system: Windows 98, 2000, XP, 7, 8,10 - Voltage: 1mV±5%.
- Standard Sensitivity: 10mm/mV±5%
- Noise level: =30µV
- CMRR: =60dB
- Frequency: 10Hz as standard parameter, 0.5Hz~55Hz; -3dB
- Time constant: > 3.2s
- Scanning speed: 25mm/s±5%.
- Polarisation voltage - 1 Holter recorder
- 1 CD with software (GB, IT, PL, PT, RU)
- 10-lead patient cable
- 10 disposable ECG sensors
- 1 case for hanging recorder
- 1 USB cable for data download
- Instruction manual (GB, IT)

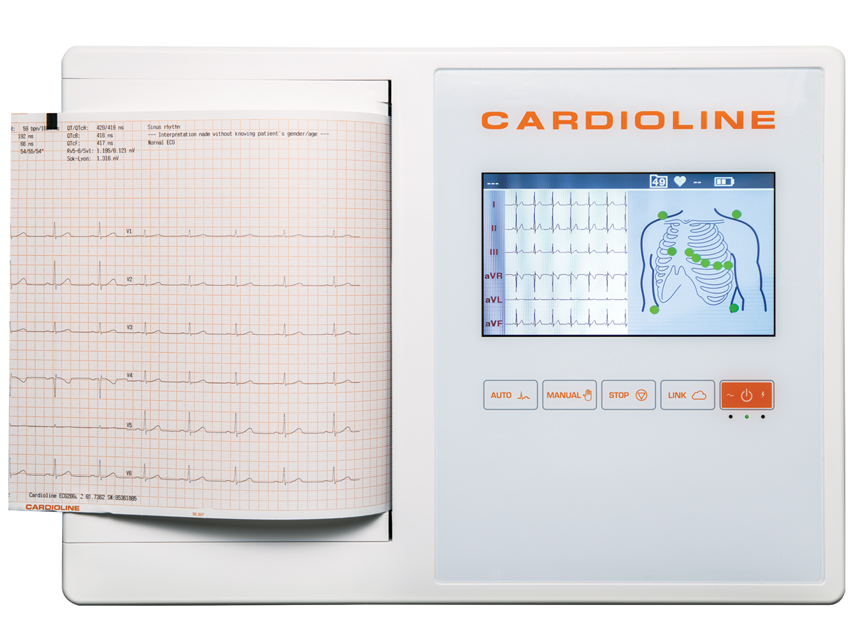

CARDIOLINE ECG 200L GLASGOW - 7" screen

Cardioline ECGs are designed to quickly and easily acquire a 12-lead resting ECG in a doctor's office.
Particular attention has been paid to ease of use with a bright colour 5" (54200-2) or 7" (54204-5) touch screen and dedicated keys for quick operation.
The user is guided step-by-step through ECG acquisition, from electrode positioning to quality control, acquisition, printing and storage.
At the touch of a button, ECGs can be acquired in Automatic, Manual, Stat or Rhythm mode.
The new ECG Rhythm function allows rhythm analysis of 3 minutes of ECG, including trend and heart rate variability.
ECG files can be stored in the device or exported via a USB connection to a PC or memory stick.

Support of most print formats
Standard or cabrera 3, 3+1, 3+3, 6 or 12 (12 only 54204-5) channels printing in automatic mode and 3, 6 or 12 channels printing in continuous mode as well as rhythm strip printing.

Switchable internal multilingual software in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.

Glasgow algorithm for paediatric and adult interpretation (54201 - 54205 only)
The algorithm can diagnose any abnormality usually recognisable by ECG: myocardial infarction, including IMA, ventricular hypertrophy, ST-T abnormalities and common rhythm abnormalities. The programme also detects disorders such as conduction delay and QT interval lengthening.

ECG EasyApp to manage patient ECGs (supplied with 54202, 54205, optional for 54200-1, 54204)
With this App, ECG acquisitions can be received in SCP format on a PC (via USB) and printed. Patient data and automatic interpretations provided by the ECG, including examination results, are editable. The operator can also customise the rhythm strip pattern with specific commands (speed, gain, filter, etc.). ECG acquisition
- ECG channels: 12 leads (I, II, III, aVR-L-F, V1-6)
- Patient cable: Standard 15D, 10-wire
- CMRR: >100 dB
- Input impedance: 100 MOhm
- Input stage sampling rate: 32000 samples/second/channel
- Risol Patient cable
Battery
1 pack of 180
Power supply cable
Snap connector adapter 4 mm (pack of 10)
Glasgow Interpretation
Disposable tab electrodes (pack of 100)
Manual on CD (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)

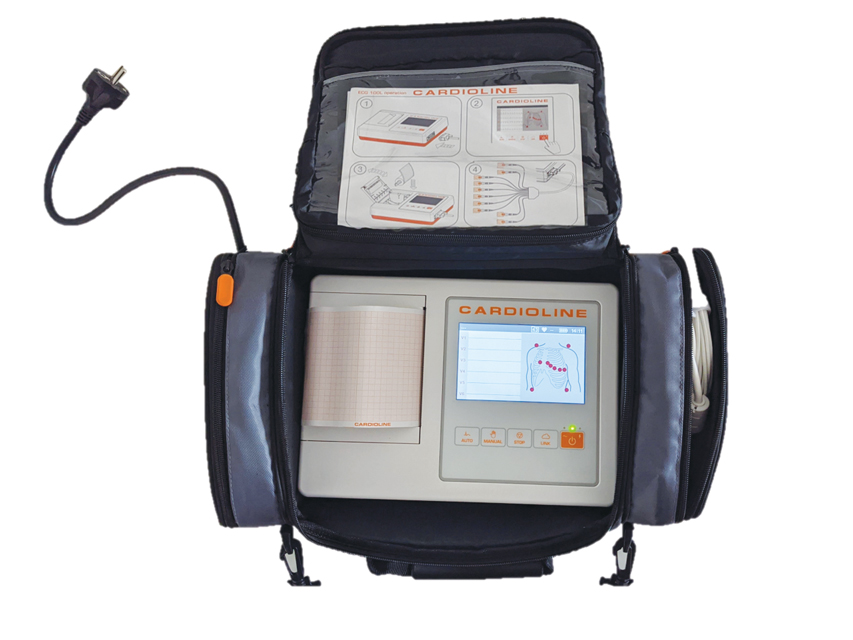

Ready-to-use transport bag for Cardioline ECG (54200-2)

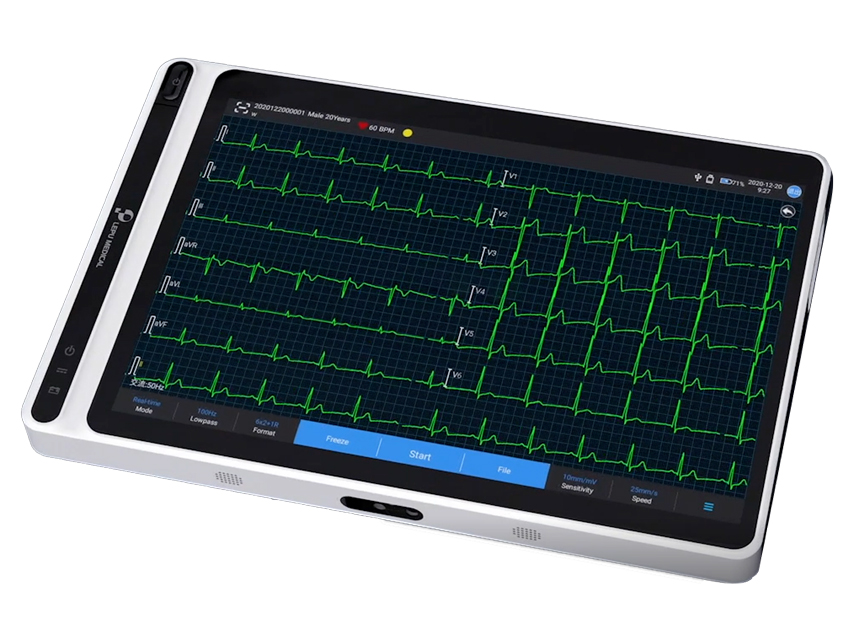

NEO ECG S120 - ECG TABLET

Lightweight and portable ECG tablet for acquiring and displaying 9/12-lead traces and heart rate.
Easy-to-use, high-resolution 7" colour touch screen.
Store, preview, review, edit and upload patient data via wireless transmission of ECG data over mobile networks and WiFi. Patient data exportable to USB flash disk via USB connector.

- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling
- automatic pacemaker pulse detection and marking
- self-analysis RR, HRV, test medicine, ECG event mode
- files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- on-screen ECG trace image block
- virtual keyboard and barcodes for entering patient information
- external DC power supply and integrated rechargeable battery
- selectable multi-language software: GB, FR, IT, ES, PT, DE, GR, PL ECG derivations: synchronous acquisition 9,12
A/D resolution: 24 bit
Heart rate range: 30bpm - 300bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, error less than ± 5%
Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, error inf 1 ECG cable (IEC, Ø 4 mm, banana jack)
6 precordial suction cup electrodes for adults (Ø 4 mm)
4 arm/leg clamp electrodes for adults
1 rechargeable lithium battery
1 power adapter
Multilingual manual: GB, IT, on request FR, E

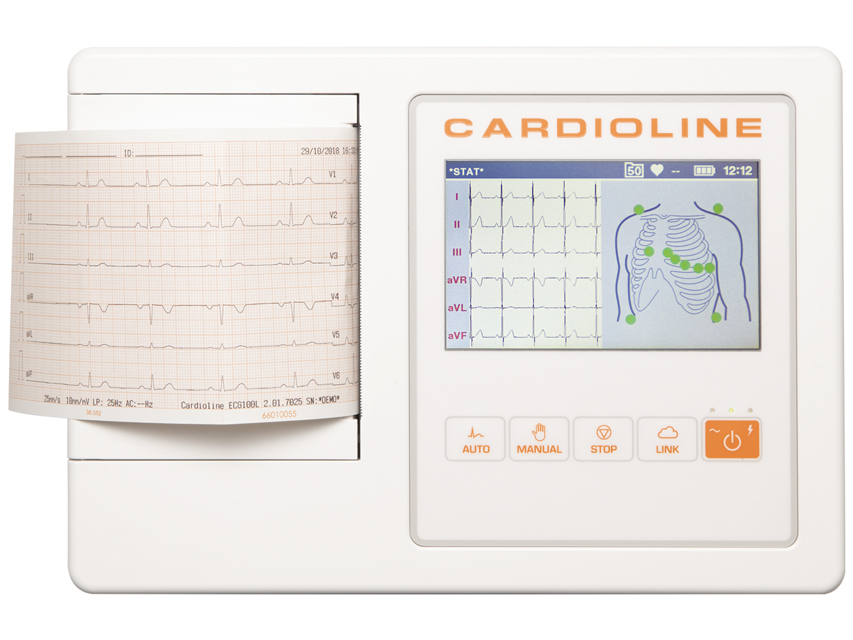

CARDIOLINE ECG 100L GLASGOW - 5" screen

Cardioline ECGs are designed to quickly and easily acquire a 12-lead resting ECG in a doctor's office.
Particular attention has been paid to ease of use with a bright colour 5" (54200-2) or 7" (54204-5) touch screen and dedicated keys for quick operation.
The user is guided step-by-step through ECG acquisition, from electrode positioning to quality control, acquisition, printing and storage.
At the touch of a button, ECGs can be acquired in Automatic, Manual, Stat or Rhythm mode.
The new ECG Rhythm function allows rhythm analysis of 3 minutes of ECG, including trend and heart rate variability.
ECG files can be stored in the device or exported via a USB connection to a PC or memory stick.

Support of most print formats
Standard or cabrera 3, 3+1, 3+3, 6 or 12 (12 only 54204-5) channels printing in automatic mode and 3, 6 or 12 channels printing in continuous mode as well as rhythm strip printing.

Switchable internal multilingual software in 16 languages GB, FR, IT, ES, PT, DE, RO, RU, CZ, HR, BR, HU, NL, TR, RS, PL.

Glasgow algorithm for paediatric and adult interpretation (54201 - 54205 only)
The algorithm can diagnose any abnormality usually recognisable by ECG: myocardial infarction, including IMA, ventricular hypertrophy, ST-T abnormalities and common rhythm abnormalities. The programme also detects disorders such as conduction delay and QT interval lengthening.

ECG EasyApp to manage patient ECGs (supplied with 54202, 54205, optional for 54200-1, 54204)
With this App, ECG acquisitions can be received in SCP format on a PC (via USB) and printed. Patient data and automatic interpretations provided by the ECG, including examination results, are editable. The operator can also customise the rhythm strip pattern with specific commands (speed, gain, filter, etc.). ECG acquisition
- ECG channels: 12 leads (I, II, III, aVR-L-F, V1-6)
- Patient cable: Standard 15D, 10-wire
- CMRR: >100 dB
- Input impedance: 100 MOhm
- Input stage sampling rate: 32000 samples/second/channel
- Risol Patient cable
2 paper rolls
Battery
Power supply cable
Snap connector adapter 4 mm (pack of 10)
Glasgow Interpretation
Disposable tab electrodes (pack of 100)
Manual on CD (GB, FR, IT, ES, PT, DE, NL, CZ, HR, HU, PL, RO, RU)

Replacement 12-lead Cardioline ECG cable.

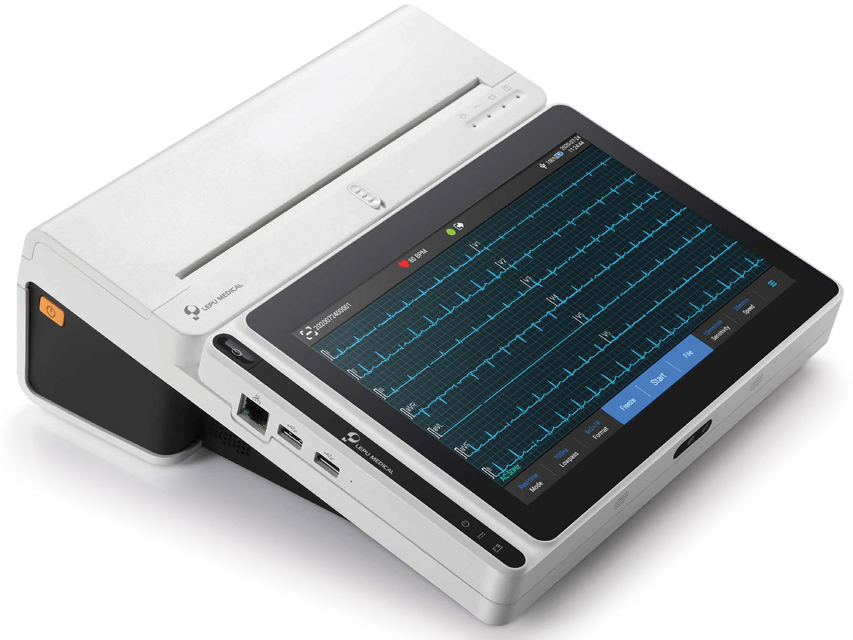

NEO ECG T180 - ECG TABLET with printer

Lightweight and portable ECG tablet for acquiring and displaying 9/12-lead traces and heart rate.
Easy-to-use, high-resolution 10.1" colour touch screen.
Store, preview, review, edit and upload patient data via wireless transmission of ECG data over mobile networks and WiFi. Patient data exportable to USB flash disk via USB connector.

- Glasgow algorithm
- 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, trigger sampling
- automatic pacemaker pulse detection and marking
- self-analysis RR, HRV, test medicine, ECG event mode
- files in multiple formats: Carewell ECG, PDF, BMP, HL7, DICOM, SCP
- on-screen ECG trace image block
- virtual keyboard and barcodes for entering patient information
- integrated thermal printer
- external DC power supply and integrated rechargeable battery
- recorder charging port
- selectable multi-language software: GB, FR, IT, ES, PT, DE, GR, PL ECG derivations: synchronous acquisition 9,12
A/D resolution: 24 bit
Heart rate range: 30bpm - 300bpm ± 1
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm/mV, error less than ± 5%
Print speed: 5, 6.25, 10, 12.5, 25, 50 mm/s, error inf 1 ECG cable (IEC, Ø 4 mm, banana jack)
6 precordial suction cup electrodes for adults (Ø 4 mm)
4 arm/leg clamp electrodes for adults
1 roll of thermal paper - 20mx216 mm
1 rechargeable lithium battery
1 power adapter
Manual

Replacement battery for Cardioline ECG.

Rechargeable battery 5000 mah for 54230, 54231 - spare part

VETERINARY ECG CLIP x 5 mouth and paws - replacement
