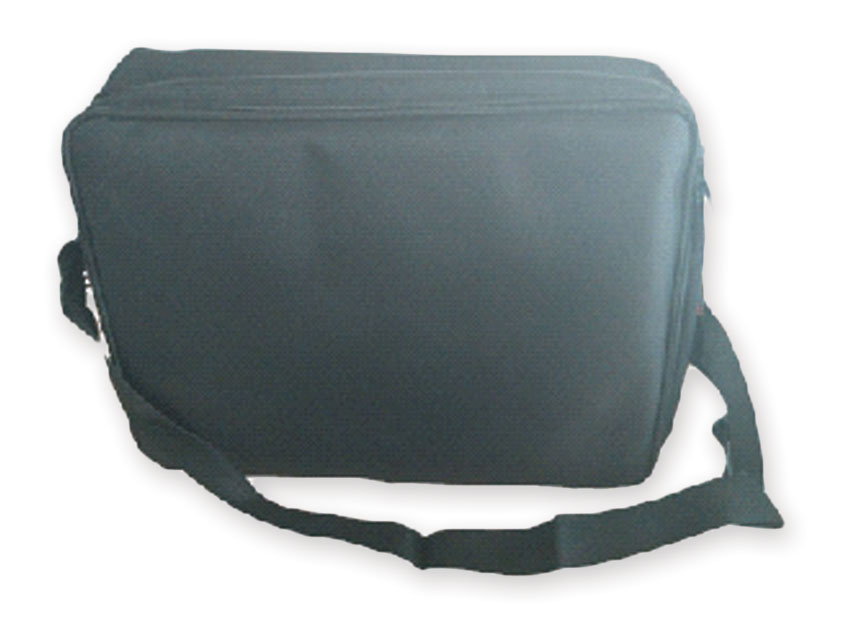

CONTEC BAG 39 x 29 x 14 cm

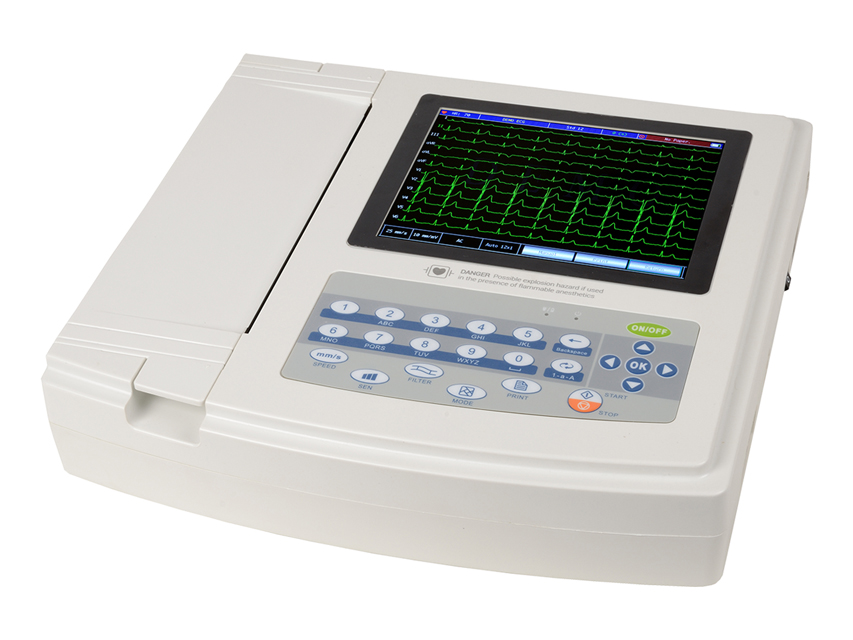

ECG 12 CHANNELS 1200G

- 8" TFT display, high resolution LED colour backlight 800x600 pixels
- acquisition and display of 12 channels simultaneously
- digital signal technique, AC filter, baseline filter, EMG filter
- self-analysis and self-interpretation
- multiple display and print modes, e.g. 12, 6+1 (rhythm), 6, rhythm 12, rhythm 10, rhythm 8, rhythm 6. Manual, freezing, etc.
- rechargeable lithium battery included
- 2 USB and LAN sockets for uploading data to PC
- flash memory included. Stores more than 1,000 files

Multi-language internal software: GB, FR, IT, ES, PT, PL, SI, TR, RU, KZ, CN. - Input modes: Fluctuation and defibrillation protection
- Channels: 12 standard channels
- Patient leakage current: < 10 µA
- Input impedance: = 50 MO
- Response frequency: 0.05 - 150 Hz (-3 - + 0.4 dB)
- Time constant 1 ECG cable
1 earth cable
1 set of peripheral electrode clips
1 set of precordial electrodes
1 paper roll
Power cable
USB connection
Software (same languages as internal software)
Rechargeable battery
Manual: GB, IT

- Small, light and easy to carry
- One button for measurements
- Clear ECG tracing with interpretation of results on 3.5'' TFT colour display
- Up to 19 types of analysis and reports
- Very large integrated memory: 24 hours memory - Pulse measurement range: 30 - 240 bpm
- Pulse accuracy: ± 2 bpm or ± 2% whichever is higher
- ECG bandwidth: 0.5Hz - 40Hz
- Internal noise level: = 30 µVp-p
- Display scale: 5.0 mm/mV ± 10%.
- Ratio of

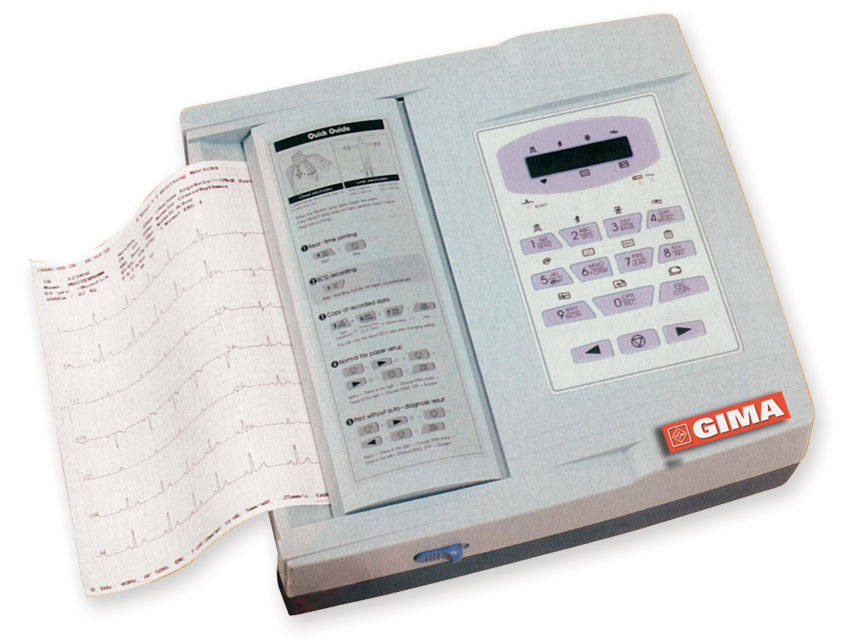

ECG CARDIOGIMA 12 - 3-6-12 channels

Low-cost, high-performance 12-channel ECG. The simultaneous recording of 12 channels offers high diagnostic value as all 12 channels are displayed simultaneously. The design is practical and user-friendly (A4 sheets, one typeface).

Features:
- 12 channels recorded in 10 seconds with interpretation in 60 seconds in different languages. Internal software + print in: GB, FR, IT, ES, DE, RU, TR, PL, PT, RO, KR.
- different paper widths (A4 thermal paper, fax paper)
- combined output of all relevant curves, patient data, date, time and settings

PC connection: connection to PC (via RS 232 port or via LAN for sending recorded ECG traces to other specialists for evaluation (only requires modem)

ECG Plus" archiving system: a complete PC system for archiving ECG traces, displaying them in real time, printing them and storing them in JPG.

Rechargeable batteries (optional) with one hour autonomy with normal use (approx. 100 ECG printouts) - ECG: 10-second recording of 12-lead ECG
- Dimensions and weight: 296 x 305.5 x 92.5 mm - approx. 3 kg
- Recording: 3, 6, 12 channels and 1 channel (60 seconds)
- Sensitivity: 5, 10, 20, auto (1~aVF: 10, W1~V6:5) mm/mV
- Paper speed: 12.5, - 1 Software (GB, FR, IT, ES, PT, DE, PL, RO, BG, HU, TR, RU, KR)
- 1 LAN cable
- 1 Patient cable - 10 leads
- 4 Clamp electrodes
- 6 Precordial, suction cup electrodes for adults
- 1 Electroconductive paste tube (70 g)
- 1 Power cable

- Large LCD display for waveform and data visualisation
- High resolution thermal matrix printer
- 150 Hz frequency response
- Continuous printing capability of ECG trace and annotations including lead, ECG sensitivity
- Safety type: Class I, CF type applied parts (applied parts with defibrillation protection)
- Leads: 12 standard
- Input: Floating input circuit and defibrillation protection
- Patient leakage current: <10uA
- ECG cable
- 1 set peripheral clamp electrodes
- 1 set precordial electrodes
- Ground cable
- Power supply cable
- Paper roll

<i>The device should only be used as a first screening and cannot be used on newborns. For more accurate analyses, multi-lead devices must be used.</i>

This product is suitable for general practitioners or for home use by users who may be suffering from cardiovascular diseases such as hypertension and coronary artery disease. The device allows daily monitoring of cardiac status. Measurements can be stored and used as a reference for clinical applications.

The ECG can be measured in four ways: on the palm, leg, chest or through the classic cable and electrode measurement.

- compact, portable and easy to use
- 30 second trace + measurements
- memory: 1200 ECGs. 10 hours of continuous tracing can be stored
- analysis and reports of 17 types
- USB 2.0 interface with optional cable and PC software
- measurement possible via optional ECG cable

Supplied with manual and multilingual box (GB, FR, IT, ES) - ECG bandwidth: 1 Hz - 40 Hz
- Pulse measurement range 30 - 240 bpm ± 2 bpm
- LCD display: 240 x 160 dot matrix
- Display size: 57.6 x 40 mm
- Power supply: 2 AAA batteries
- Dimensions: 125 x 70 x h 21.5 mm
- Weight: 106 g

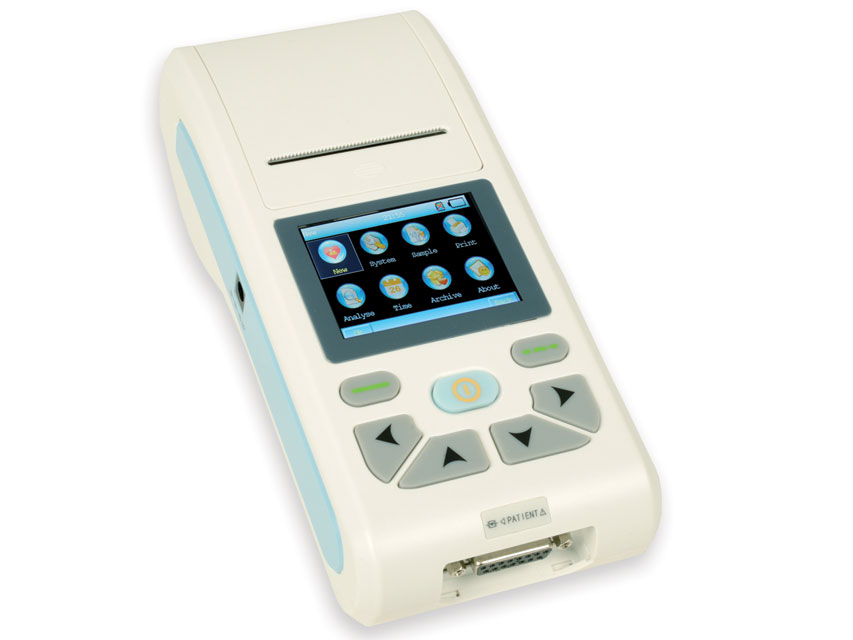

3-CHANNEL CARDIOPOCKET ECG with software

12-lead ECG that prints out ECG waves via a thermal system; measures and diagnoses ECG parameters automatically.

- Fully automatic analysis function: self-analysis and self-diagnosis for routine ECG parameters. Provides measurement results and self-diagnosis conclusions for HR, P-R interval, P duration, QRS duration, Q-T interval, Q-tc, P-axis, QRS axis, T-axis, R(V5), S(V1), R(V5)+S(V1)
- 2.83" LCD colour display (320x240 resolution) operating both as touchscreen and keyboard
- high resolution 8 dots/mm thermal order output system (vertical)
- included removable rechargeable lithium battery can operate for up to 4 consecutive hours and prints up to 90 minutes and 150 ECGs
- stores up to 100 cases on an SD card
- digital filter eliminates baseline distortions from ECG waves
- ECG synchronisation software forms an ECG workstation

Dimensions: 207 x 96 x 62 mm
Net weight: 500 g - Power supply: AC: 100-240 V, 50/60 Hz - DC 12V rechargeable lithium battery 2,000 mAh
-Noise level:
- =15 µVp-p
- CMRR: &gt;60 dB, &gt;100 dB (with filter added)
- EMG filter:
- 25/35 Hz
- Time constant:=3.2 s
- Response frequency: 0 Patient cable
1 paper roll
1 rechargeable lithium battery
4 peripheral electrodes
6 precordial electrodes
1 user manual (GB, IT, FR)
1 software CD (GB, FR, IT, ES, DE, TR) and cable for PC connection

ECG cable for codes 33260 and 33261

Replacement cable for Holter ECG (35130).

Description not available.
