5.0 MHz paediatric doppler probe

- Scanning method: paediatric
- Frequency (MHz)
- Main frequency: 5.0
- Probe bandwidth: 4-10.7
- Main application: paediatrics

PHENOL FREE: completely phenol-free, ensuring maximum user safety

Chison i8 echolordoppler probe (ref. 33965/66).

- Scanning method: cardiac (phased array)
- Frequency (MHz)
- Main frequency: 3.0
- Probe bandwidth: 2.0 - 5.4
- Main application: cardiology

Chison 600M portable ultrasound probe - Scanning method: linear
- Main frequency: 7.5 MHz
- 4-stage multi-frequency: 5.0/6.0/7.5/9.0 MHz
- Main application: micro-medicine, haematology
- Alternative application: breast

CHISON ECO5 COLORDOPPLER WITH TWO PROBE CONNECTORS (probes not included).

CHISON ECO5 Colordoppler with 12" LED colour screen, high resolution, 8G high speed memory, 3 USB ports, 2 probe connectors, EASYVIEW™ storage system.

Imaging model: B, B/B, 4B, B/M, M, CFM, PW

- Image processing:
- MCI (Multicomposition Imaging)
- trapezoidal
- intelligent I-image optimisation
- automatic PW tracking
- AIO (Automatic Image Optimisation)
- THI (Textile Image Balancing)
- Chroma
- SRA (Focal spot reduction algorithm)
- full screen mode
- digital beam-former system

- User interface
- foldable control panel and alphanumeric keypad
- backlit keypad for optimal visibility in the dark
- interactive backlighting
- identification lights indicate active keys
- 8 TGCs for easy adjustment
- knob for easy adjustment
- clear and intuitive keyboard layout, quick to memorise
- predefined user settings

- Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO)
- create reports
- save freeze frame and CINE loop
- measure
- print from PC (laser or ink printer) or video printer

- EASYVIEW™ archiving system
- image storage on hard disk and USB
- 3 USB ports
- various image formats: BMP, JPG, DCM, CIN
- cine review: auto, manual (auto review setting) for 2D, M-images
- cine memory capacity (256 images/8s) Dimensions: 33.5 x 15.5 x h 35 cm (13.2 "x6.1 "xh 13.8")
Weight: 6.5 kg
Screen: 12" LED colour, high resolution 1024 x 768
Power supply: AC 100-240 V, 50-60 Hz
Rechargeable Li-ion battery 14.8 V 4400 mAh

Transport bag for portable ultrasound scanners of the ECO series.

ECOCOLORDOPPLER QBit5 - 15" high resolution LED flat screen.

Supplied with 2 probe connectors and 1 probe connection holder, trolley, keyboard, image archive: 32 GB HardDisk, 6 USB ports, VGA format, without probes.
Affordable and reliable Doppler equipped with advanced technology: image composition, quad beam, Q-image, Q-flow, X-contrast enable excellent images. Linear workflow and ergonomic design improve efficiency.

Image modes:
- CFM
- PW
- Pulsed Doppler/Directional PD
- B/BC
- chroma B/M/PW/CW
- B, 2B, 4B, B/M, M
- trapezoidal on linear probe

Image processing:
- Speckle Algorithm Reduction (SRA)
- direct printing from PC or video printer
- automatic image optimisation (AIO)
- harmonic image fusion (FHI)

Special radiology function: 2D orientation and hook (optional)

Phased array probe and package: phased array function includes CW, TDI, ECG, M colour and complete calculation package including PISA/Dp/Dt.

Dimensions: 747 x 517 x 1283 mm
Net weight: 50 kg

AUTO IMT - optional

SONOEYE PORTABLE ULTRASOUND
- P6 Micro-Convex
- Network frequency: 6.5 MHz
- Frequency range: 4.0-8.0 FHI 6.0-10.0
- Suitable for: Abdomen, Obstet./Gyn., Urology, Small parts, Emergency medicine

The SonoEye portable ultrasound system enables healthcare professionals to provide quality care to patients anywhere.

SonoEye only works in conjunction with a smartphone or pad.

The versatile design, similar to a pad or mobile phone, increases its portability.
- lightweight: weighs half as much as a phone and has a smaller volume
- multiple devices: connection with smartphone or pad
- water resistance: IPX7, can be easily cleaned and sterilised
- use anywhere: multiple quick solutions
- use with one thumb: one touch to start and stop operation; ease of use

Diagnostics for ultrasound imaging in B-mode (2D), B/M, CFM (Colour Flow Mapping), Combined (B+CFM), PW (Pulsed Wave) and Fusion Harmonic Imaging.

Available in 4 different models:
- SonoEye P2 Linear Array suitable for small organs, musculoskeletal system (MSK), nerves, lungs, emergency medicine (EM), vascular system.
- SonoEye P3 Phased Array indicated for abdomen, heart, lungs, emergency medicine (EM).
- SonoEye P5 Convex indicated for abdomen, obstetrics-gynaecology, urology, lungs, FAST ultrasound, emergency medicine (EM).
- SonoEye P6 Micro Convex indicated for abdomen, heart, urology, paediatrics, obstetrics-gynaecology and small parts.

App
SonoEye works with the SonoEye App for medical or veterinary use, which can be downloaded free of charge from www.chisonsonoeye.com

Medical and veterinary use
All SonoEye probes can be used on humans or animals, depending on the App selected.

The device is supplied with a carrying case and manual (GB, IT ).

Cable length 3m
Programmable buttons for custom functions: gain, depth, focus, freeze frame, save, etc. COMPATIBILITY
Smart Phones: RedmiNote 8Pro, HUAWEI P30 Pro, HUAWEI iV30
Smart Pads: HUAWEI Matepad Pro, Samsung Galaxy Tab A (SM-T510), TECLAST T30, Samsung GALAXY TA B S6, HONOR ViewPad V6, Canon SELPHY CP1300

Probe Type: Micro-Convex
Frequency cent

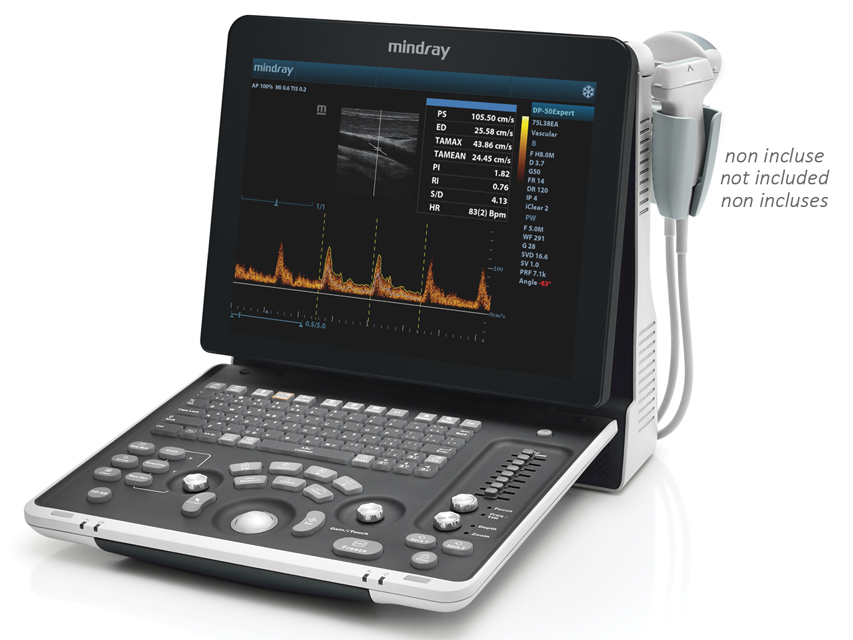

MINDRAY DP-50 EXPERT PORTABLE ECOGRAPH with 15" high resolution LCD monitor, 2 probe connectors, 500GB hard disk, 4 USB ports, multiple software package, without probes.

Image modes: B, B/B, 4B, B/M, M

Image processing:
- phase shift harmonic imaging
- THI (Tissue Harmonic Imaging)
- iBeam™ spatial image composition
- iClear™ speckle-free imaging
- iTouch™ automatic optimisation
- trapezoidal images
- iZoom™ automatic full screen display
- inclined scanning for linear probes (2D steer)

Multi-frequency broadband probes: continuously adjustable 2-14 MHz

Intelligent Workflow/Memorization/Revision
- iStation™ intelligent patient data management system
- 320 GB hard disk memory
- 4 USB ports
- cine memory capacity (max) B mode: 10566 frames / M mode: 66.3 s

PW (pulsed Doppler) and DICOM included

Supplied with manual in: GB, IT and manual on CD in: GB, IT, FR, DE, RU, ES, PT, BR Display: 15" LCD
Display languages: GB, FR, IT, ES, PT, RU, PL, CZ, TR, FI, DK, NO, SE, DE
Power supply: AC 100-240 V - 50/60 Hz
Rechargeable lithium-ion battery - on request
Dimensions and weight: DP-50 Expert 14.7x36.1xh 35.8 cm - 7.5 kg

MINDARAY Z50 COLOUR PORTABLE ECOGRAPH with 15" high resolution LCD display, 2 probe connectors, 500GB hard disk, 4 USB ports, software package, multiple, no probes.

Colour Doppler system offering a rare combination of high performance and low cost.
High quality imaging, accessibility, versatility and mobility in one portable Doppler system.

Versatility
- scan modes: B, Colour, PW, Power, M, FreeXros M
- image display mode: B, 2B, 4B, B/C, B/M, B/PW, Triplex PW
- applications: ABD/OB/GYN/CAR/SML/URO/VAS/ORTH/EM/NERVE
- probe varieties: Convex, Linear, Micro-convex, Endocavity
- extended scanning angle via ExFov
- high-frequency linear probe for surface scanning

Productivity
- iTouch: rapid image optimisation with one click
- iZoom: instant full-screen magnification with one click
- iStation: patient database review and analysis platform
- Clipboard: run, preview and share cineloops
- Multiple image formats: BPM, JPG, DCM, AVI, CIN

Portable
- compact, tapered shape weight 8.1 kg
- 15-inch LCD monitor with 60-degree tilt function
- dual universal transducer connectors
- two-level backlit keyboard for various needs
- portable bag for easy transport
- 1.5 h of non-stop scanning with rechargeable battery

Manual on CD: GB, FR, IT, ES, PT, DE, RU, BR. Screen: 15" LCD, high resolution 1024x768
Internal software + keyboard input: GB, FR, IT, ES, PT, RU, PL, CZ, DE
Keyboard input: TR, FI, DK, NO, SE
Power supply: AC 100-240 V - 50/60Hz - rechargeable lithium-ion battery - on request
