WIRELESS PORTABLE ULTRASOUND SCANNERS

Scanning:
- Linear (VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10
- Convex (POLMONIES / ABDOMEN / CARDIOLOGY / GYNECOLOGY / OSTETRICIA / UROLOGY / RENI)
- Frequency range (MHz): 3.5-5

Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.

Convex probe: abdominal and pelvic organ scan, FAST scan, pleural effusion scan and lung ultrasound.

Easy-to-use wireless portable ultrasound scanners, allowing the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage

Dual-head ultrasound
Linear head and convex head interchangeable by simply turning the device.

Built-in independent Wi-Fi module realises instant image transmission without external network, reduces data transmission delay and improves image clarity.

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.

All models have GB, IT manual. Probe type: Linear / Convex
Frequency range: 7.5-10 MHz / 3.5-5 MHz
Scanning depth: 20/40/60/100 mm / 90/160/220/305 mm
Head width: 40 mm / 45 mm
Doppler: B, B/M, B+Colour, B+PDI, B+PW
Battery life: = 2.5 hours
Recharge time Probe support
Wireless charging support
USB cable

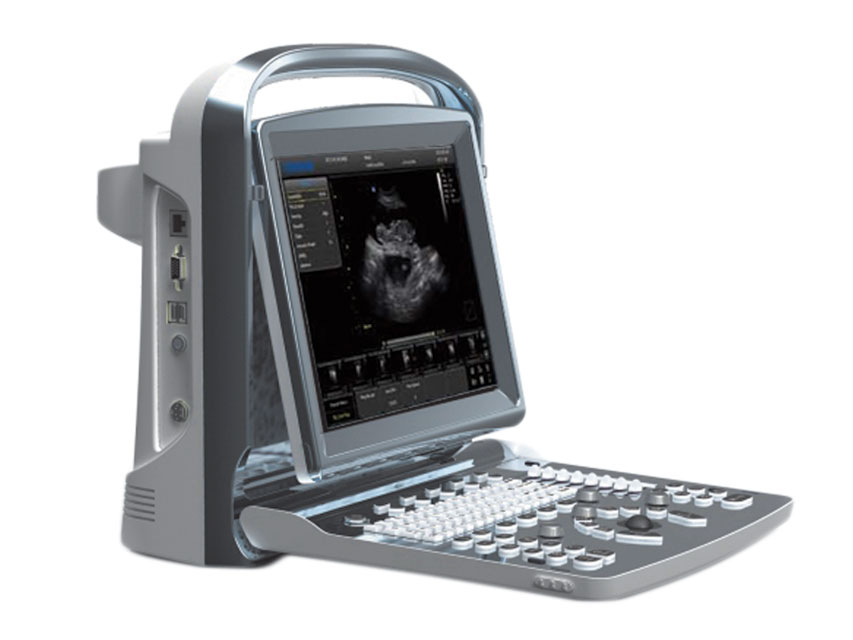

CHISON ECO-1 ultrasound scanner for veterinary use.
The ECO-1 is equipped with 1 probe connector (not included), 3 USB ports, VGA port and video port.

- Display modes: B, B/B, 4B, M, B/M
- Greyscale: 256 levels
- Scanning depth: maximum 240 mm (depends on probe type)
- Cine Loop: 256 frames
- Image storage: permanent in internal memory and USB disk
- Zoom: 4 steps

Software packages:
- Canine: GS, CRL, HD, BD
- Feline: HD, BD
- Equine: GS
- Bovine: BPD, CRL, Chest diameter
- Sheep: BPD, CRL, Thorax diameter

Power supply: 100-240V, 50Hz ~ 60Hz

Manual in GB, IT, FR on request

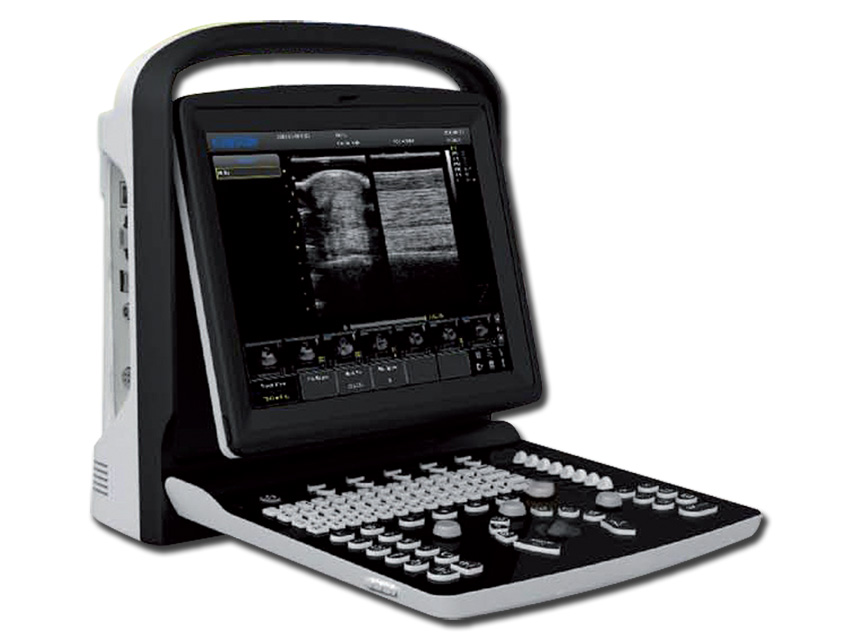

CHISON ECO3EXP. VET with 2 probe connectors, without probe

- compact and lightweight, easy to carry
- screen with new generation LED technology; ultra-bright images allow optimal viewing even outdoors
- ergonomic monitor design, 30 degree rotation, adjustable
- long battery life of up to 2 hours, for outdoor use
- full screen image magnification, better viewing at a distance
- smooth workflow, easy to use, 6 quick keys to finalise the diagnosis cycle

Display and image processing modes
B, B/B, 4B, M, B/M, PW multi-frequency imaging

Image processing
- composite images
- trapezoidal
- intelligent I-image optimisation
- Automatic PW
- THI (Tissue Image Balancing)
- SRA (Focal spot reduction algorithm)
- Chroma
- digital beam-former system
- AIO (automatic image optimisation)
- full screen display

user interface
- foldable control panel and alphanumeric keyboard
- backlit keyboard for optimal visibility in the dark
- interactive backlighting
- identification lights indicate active keys
- 8 TGCs for easy adjustment
- rotary knob for easy adjustment (shortcut keys)
- clear and intuitive keyboard layout, quick to memorise
- predefined user settings

Straightforward workflow, one key to
- select desired function with automatic settings
- optimise image automatically (AIO)
- create reports
- save freeze frame and CINE loop
- Measure
- print from PC* (laser or ink printer) or video printer

EASYVIEW™ archiving system
- image storage on hard disk and USB
- 3 USB ports
- various image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (auto review setting) for 2D, M-images, PW
- cine memory capacity (256 images/10s) Dimensions and weight: 33.5x15.5xh 35 cm; 6 kg
Screen: 12" LED, high resolution 1,024x768
Power supply: AC 100-240 V - 50/60 Hz
Rechargeable Li-ion battery

LANGUAGES - user selectable
Software: GB, IT, FR, ES, DE, CZ, TR, CN, RU
Manual: GB 12" high resolution LED screen - B/W
8G memory card
Hotkeys
PC printer connection
3 USB ports
1 Ethernet port
1 video output port, 1 VGA output port
1 footswitch port
Full screen mode
Li-i battery

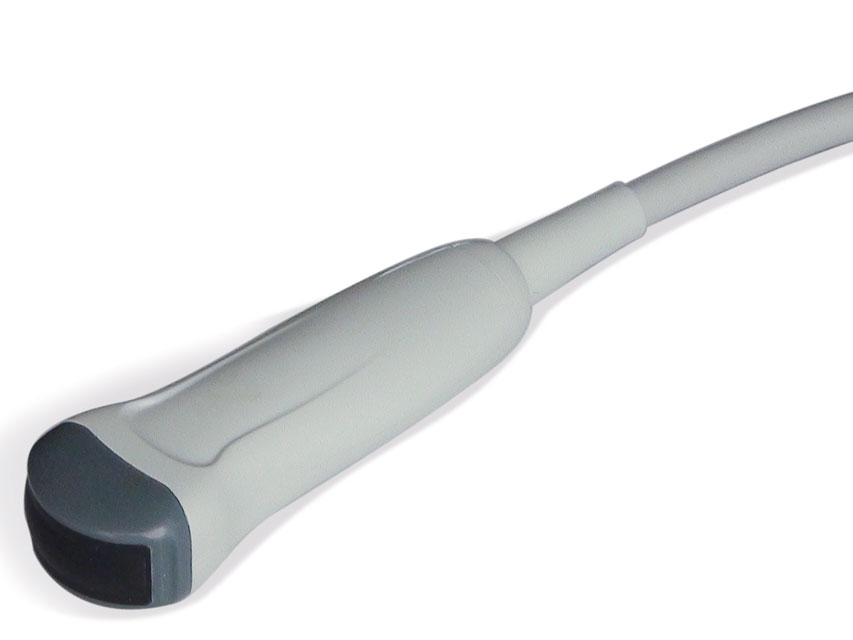

Chison portable ultrasound probe:

- Chison Code: MC6-A
- Scanning method: Micro-convex
- Main frequency: 6.0 MHz
- Frequency range (MHz): 4.5 / 8.0
- Applications: ABDOMINAL, PAEDIATRICS

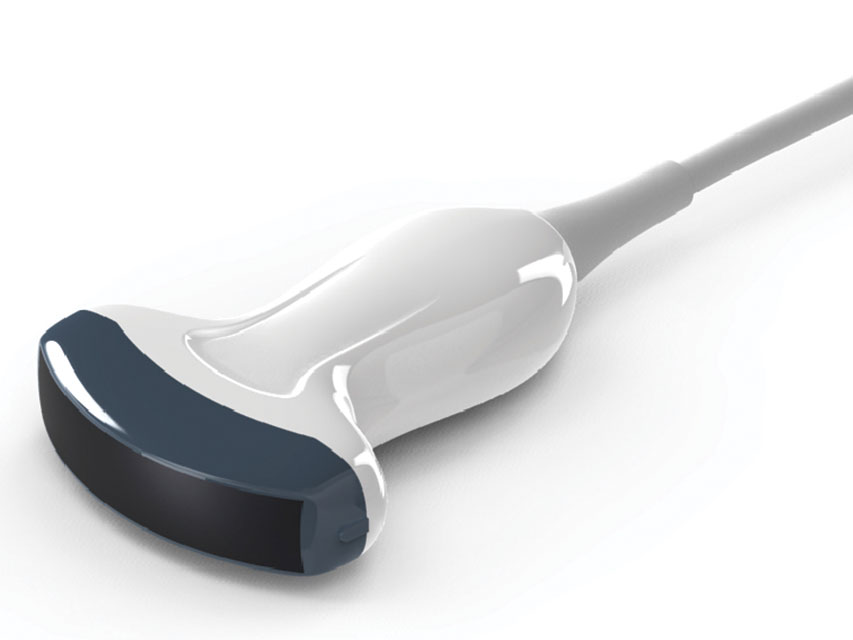

Chison portable ultrasound probe:

- Chison code: C3-A
- Scanning method: Convex
- Main frequency: 3.5 MHz
- Frequency range (MHz): 2.5 / 5.0
- Applications: ABDOMINAL, OST. & GYN, UROLOGY, PAEDIATRICS

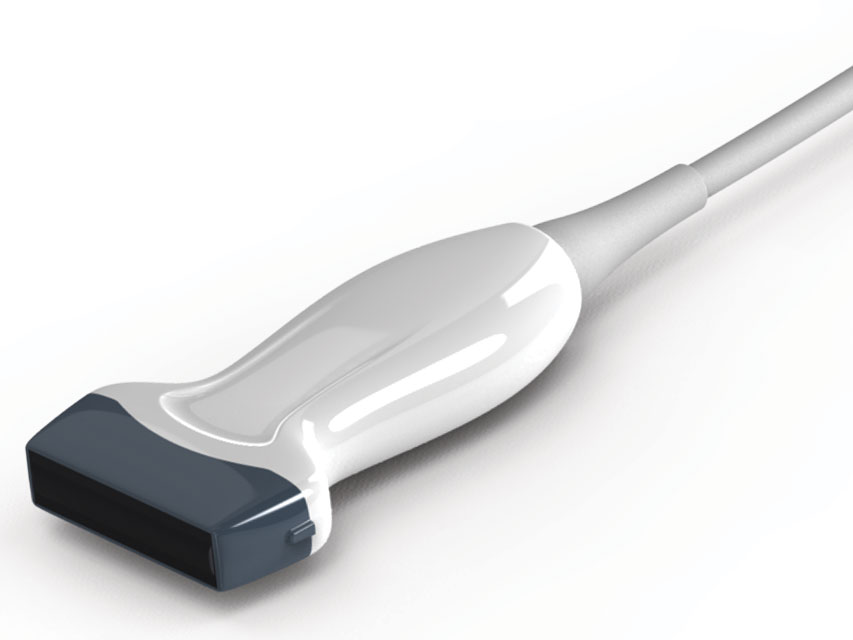

Chison portable ultrasound probe:

- Chison code: L7M-A
- Scanning method: linear (with 40 mm track, general linear probe)
- Main frequency: 7.5 MHz
- Frequency range (MHz): 5.3-10.0
- Applications: Small parts, MSK, vascular, paediatrics, orthopaedics

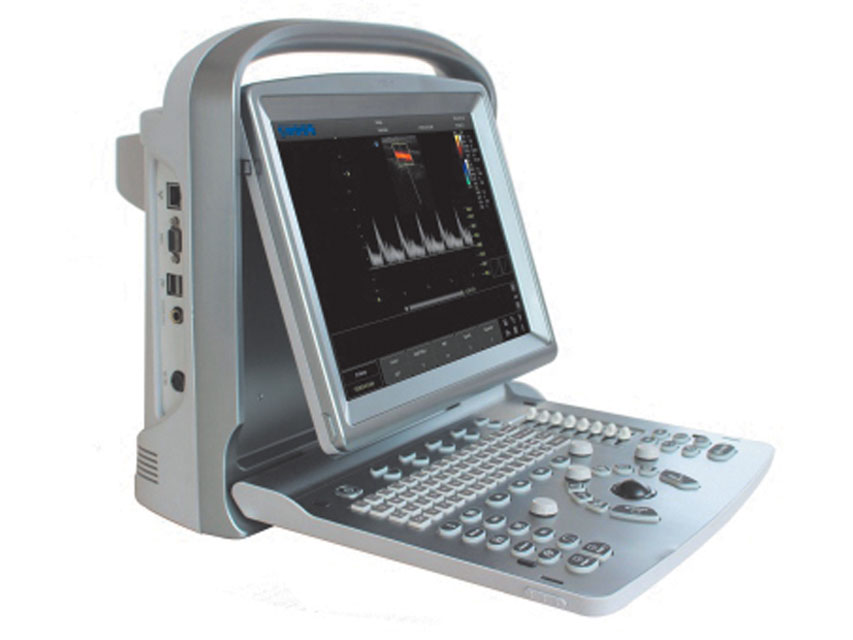

CHISON ECO5 VET Colour Doppler 12" high resolution LED screen, 8G high-speed memory, 3 USB ports, 2 probe connectors, EASYVIEW™ storage system, without probe.

Imaging model: B, B/B, 4B, B/M, M, CFM, PW

Image processing:
- MCI (Multi Image Composite)
- trapezoidal
- i-image intelligent image optimisation - automatic PW
- THI (textile image balance)
- Chroma
- SRA (Focal spot reduction algorithm)
- full screen mode
- digital beam-former system
- AIO (automatic image optimiser)
Additional features such as ECO3EXP. - Dimensions: 33.5 x 15.5 x h 35 cm
- Weight: 6.5kg
- Screen: 12" LED colour high resolution 1,024x768
- Power supply:
- AC 100-240 V, 50-60 Hz
- Rechargeable Li-ion battery - 12" high resolution LED screen - colour
- 8G memory card
- Hotkeys
- PC printer connection
- 3 USB ports
- 1 Ethernet port
- 1 video port, 1 VGA port
- 1 footswitch port
- Full screen mode
- Beats

PULSED DOPPLER PW for 33970, 33971 (can only be used with probes 33976, 33977) and for 33989, 33991 (can be used with all probes).

WIRELESS PORTABLE ULTRASOUND SCANNERS

Scanning:
- Linear (VASCULAR / MSK / PEDIATRICS / BREAST / THYROID / CARotids / SMALL ORGANS)
- Frequency range (MHz): 7.5-10
- Convex (POLMONIES / ABDOMEN / CARDIOLOGY / GYNECOLOGY / OSTETRICIA / UROLOGY / RENI)
- Frequency range (MHz): 3.5-5
- Cardiac (VASCULAR / CARDIOLOGY / ARTERIES)
- Frequency range (MHz): 2.5-5

Linear probe: Examination of superficial organs such as breast, thyroid, lymph nodes, etc., and blood vessels such as carotids, arteries of the upper extremities, arteries of the lower extremities and other small organs, examination of musculoskeletal system.

Convex probe: abdominal and pelvic organ scan, FAST scan, pleural effusion scan and lung ultrasound.

Cardiac probe: Echocardiogram for ultrasound of heart, thoracic arteries and intracranial blood vessels.

Easy-to-use wireless portable ultrasound machines, allowing the physician to manage the ultrasound results and share them with the patient with the appropriate software, anywhere, anytime.
Cases and reports can be saved and printed with a single click.
The high frame rate per second allows the smallest details to be obtained with maximum clarity, for rapid image-based diagnosis.

- wireless connection, compatible with tablets and smartphones (iOS, Android)
- replaceable integrated battery
- support for wireless charging
- advanced digital technology for sharp images
- convenience and ease of transport
- for hospital, emergency room, clinic, outdoor use
- intelligent terminal platform, powerful application expansion functions, storage

3-in-1 ultrasound scanner
The linear + convex + phased array (cardiac) probe allows the transition from depth to surface scanning without changing probes.
Very broad frequency and scanning depth allow examination of the entire body. Very sharp images and very long standby time (=12h) with very large 4200 mAh. 3.7V lithium battery.
Integrated independent Wi-Fi module, which realises instant image transmission without external network, reduces data transmission delay and improves image clarity.

Scanning parameters (depth, gain, power and colour) adjustable with a simple and intuitive multi-key interface.

All models have GB, IT manual. Probe type: Linear / Convex / Cardiac
Frequency range: 7.5-10 MHz / 3.5-5 MHz / 2.5-5 MHz
Scanning depth: 20~80 mm / 90~305 mm / 90~160 mm
Head width: 60 mm
Doppler: B/BM/Colour/PDI/PW
Battery life: 3 hours
Recharge time Wireless charging support
USB cable
Charger adapter
Carrying bag
