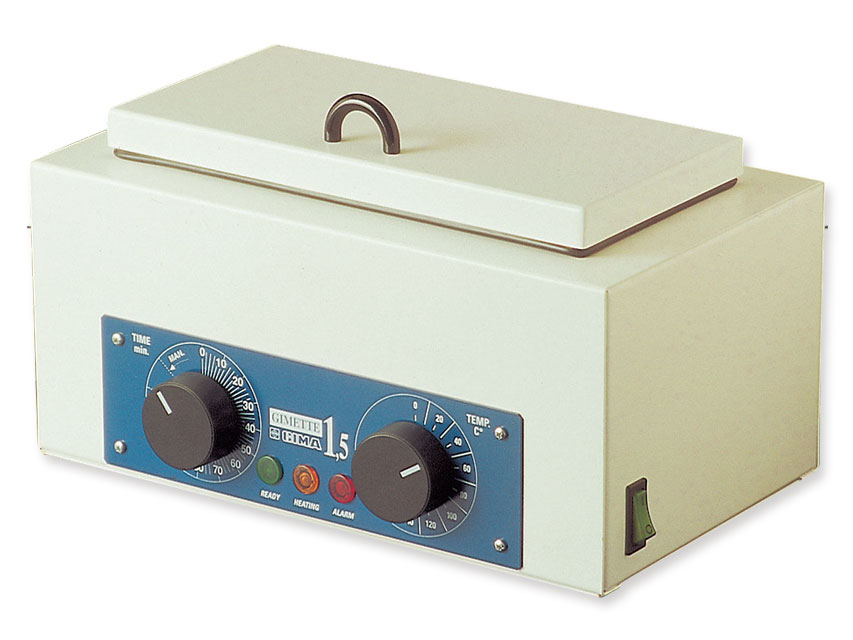

GIMETTE 1.5 - dry steriliser
Dry sterilisers designed to meet the need for compact equipment with the same safety and effectiveness as larger models.

The sterilisation chamber, with a capacity of approximately 1.5 litres, the tray, tongs and lid are made of polished 18/10 stainless steel.

All components used are certified by leading European brands and the assembly is in full compliance with the EN-61010 standard.
Equipped with a double thermostat for temperature control.
In the event of an anomaly on the first thermostat, the second thermostat intervenes, limiting the temperature and signalling the anomaly with the lighting of the red "alarm" light. - Internal dimensions: 245 x 120 x 50 mm. = vol. 1.5 dm³
- External measurements: 310 x 180 x 180 mm
- Weight: 4.3 kg
- Absorption: 250W - Fuse: 1A
- Power supply: 230V - 50/60 Hz
- Thermostat: capillary adjustable 0 - 200 °C
- Timer: mechanical

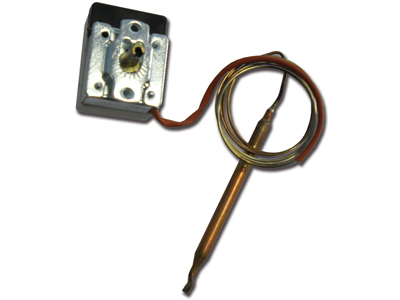

Thermostat for Gimette steriliser.

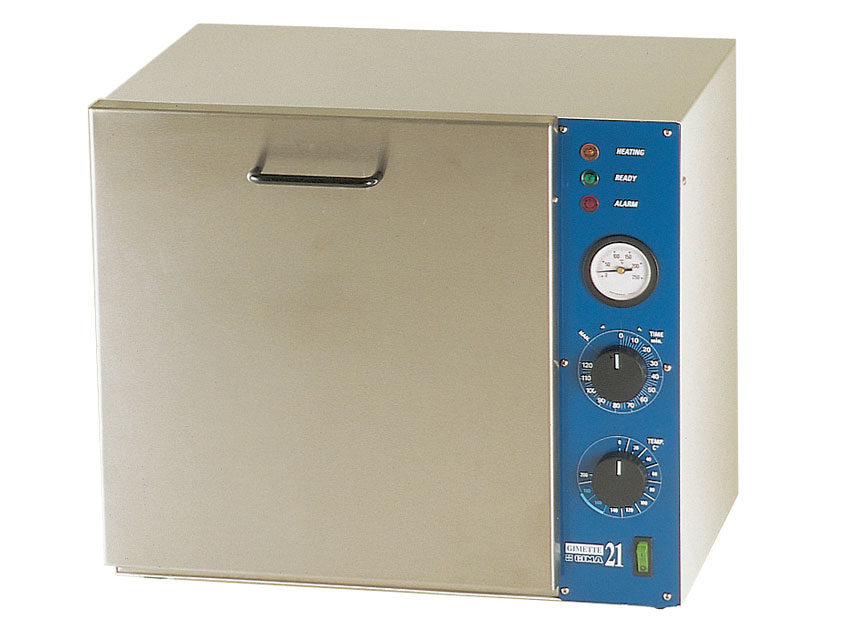

GIMETTE 21 - dry steriliser.
Fully automatic hot air steriliser with temperature control from 0°C to 200°C.The structure is made of stainless steel.

Externally, except for the door, it is powder-coated for maximum resistance to heat, shock and time.

The 4 trays are made of anodised aluminium with large holes to facilitate hot air circulation.

Capacity: approx. 20 litres.
A second safety thermostat intervenes to control the temperature should it exceed the 230°C threshold.
The red light indicates a possible fault in the temperature regulator and thus the activation of the safety thermostat. - Internal dimensions mm: 300 x 250 x 260
- Volume approx: 20 dm³
- External measurements mm: 440 x 340 x 400
- Weight: 13 kg
- Absorption: 600w
- Power supply: 230V - 50/60 Hz
- Fuses: 2 x 4 A
- Thermostat: automatic with liquid expansion capillary
- Timer

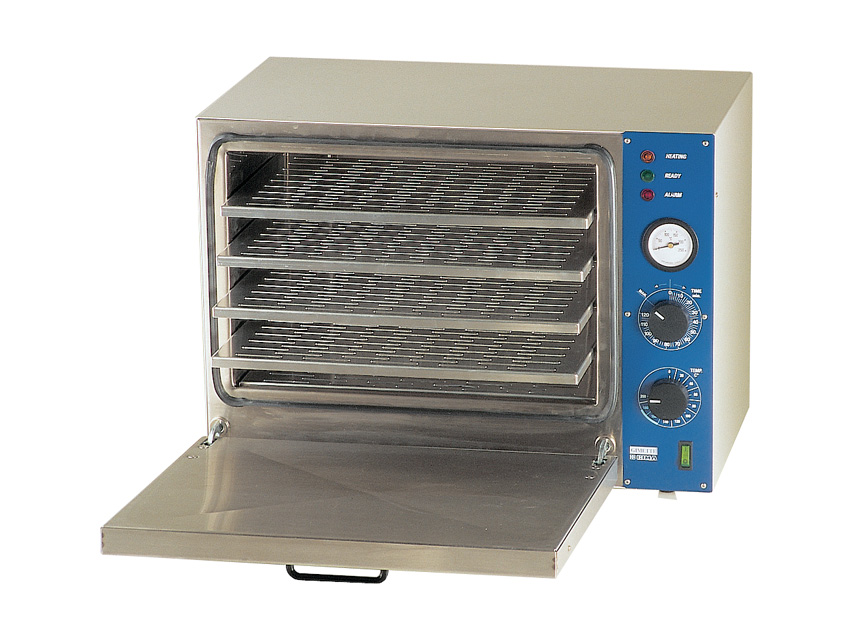

GIMETTE 28 - dry steriliser.
Fully automatic hot air steriliser with temperature control from 0°C to 200°C.The structure is made of stainless steel.

Externally, except for the door, it is powder-coated for maximum resistance to heat, shock and time.

The 4 trays are made of anodised aluminium with large holes to facilitate hot air circulation.

Capacity: approx. 28 litres.
A second safety thermostat intervenes to control the temperature should it exceed the 230°C threshold.
The red light indicates a possible fault in the temperature regulator and thus the activation of the safety thermostat. - Internal dimensions mm: 380 x 250 x 260
- Volume approx: 28 dm³
- External measurements mm: 550 x 340 x 400
- Weight: 17 kg
- Absorption: 500 W
- Power supply: 230V - 50/60 Hz
- Fuses: 2 x 4 A (35621-28) 2 x 8 A (35629)
- Thermostat: automatic with capillary li

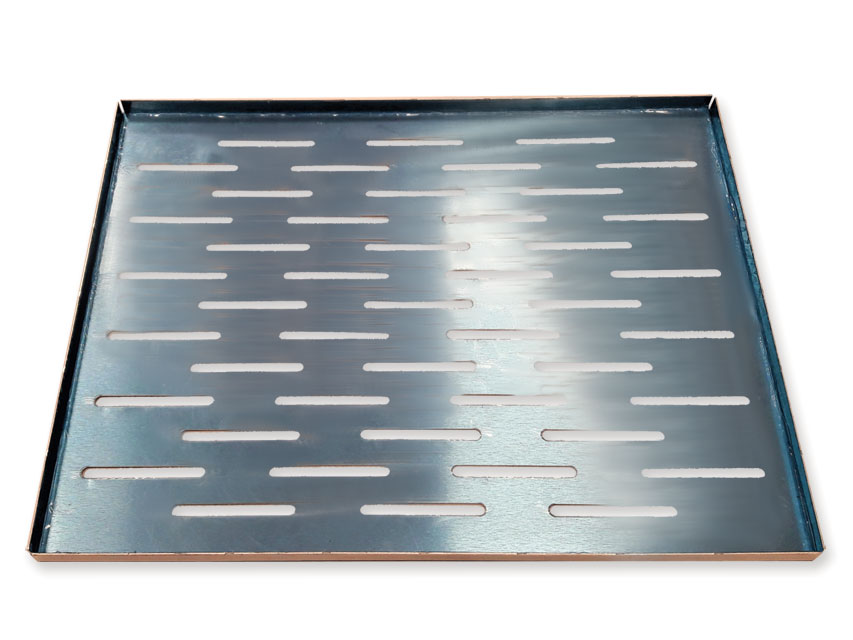

Replacement tray for dry steriliser Gimette 21 (code 35621).

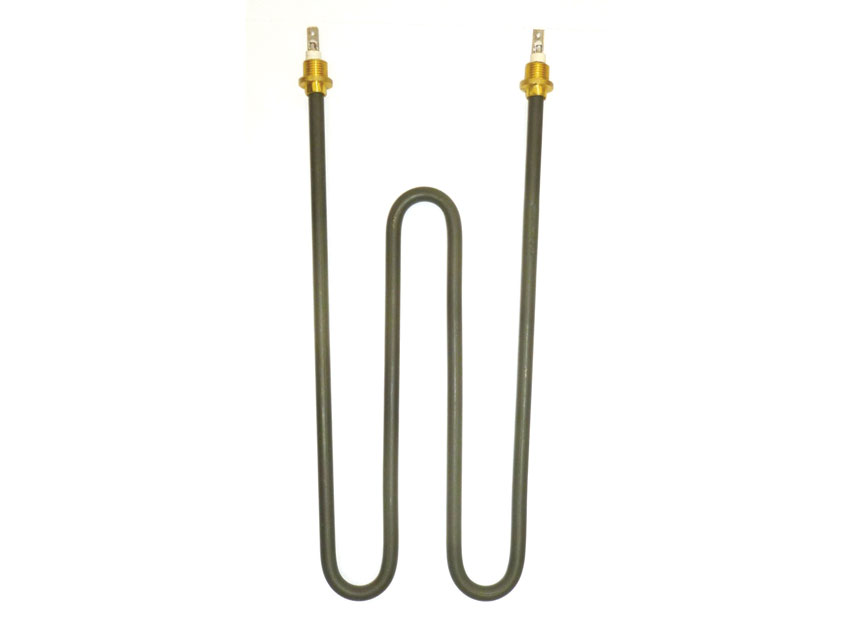

600W heating element for Gimette sterilisers.

Specify the steriliser model when ordering:
- Code 35621 DRY STERILIZER GIMETTE 21
- Code 35628 DRY STERILIZER GIMETTE 28
- Code 35629 DRY STERILIZER GIMETTE 50

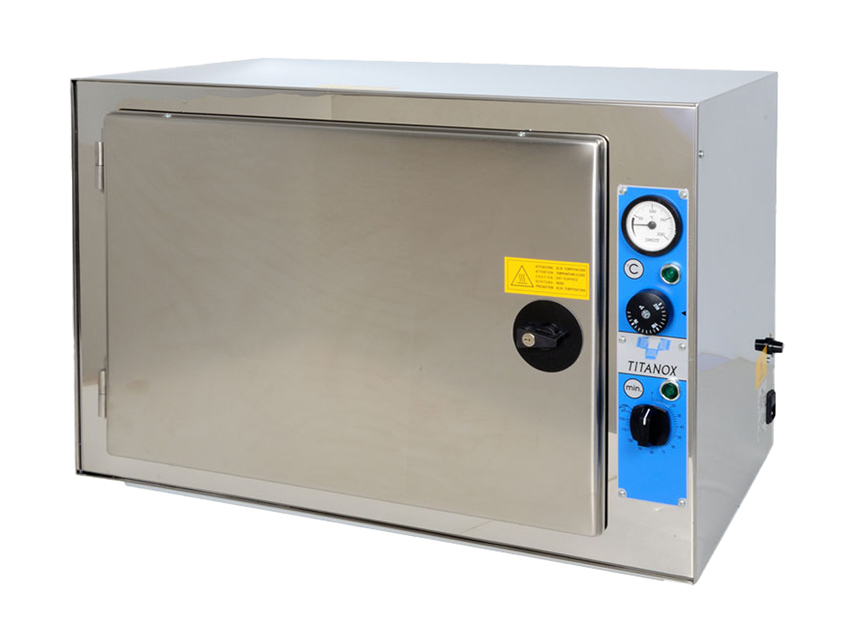

TITANOX HOT AIR STERILISERS

- Unit: Standard
- Capacity: 60 litres
- External dimensions (mm): 705x450xh 475
- Internal measurements (mm): 535x320xh 345

Internal structure and height-adjustable shelves made entirely of stainless steel.
Lockable.

Standard unit: double resistance to reach higher temperatures more quickly.

All models are supplied with manual in: GB, FR, IT (ES on request) and 2 height-adjustable trays.

Made in Italy. Timer: 0-120 minutes, switches off at the end of the programmed time
Probe thermometer: 0° - 200°
Probe thermoregulator: 0° - 200°.
Operating voltage: 230 V - 50/60 Hz

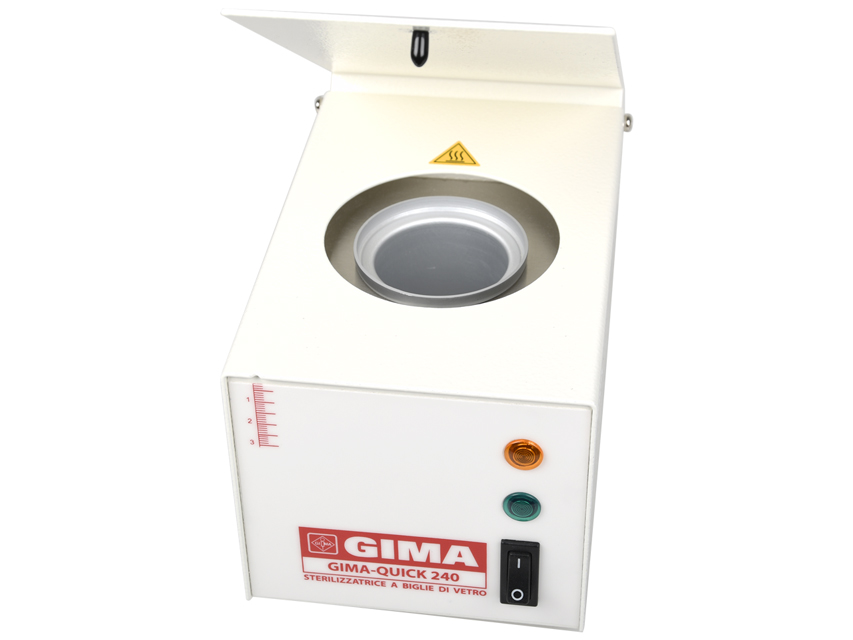

The GIMA QUICK glass bead steriliser is designed specifically for outpatient use and therefore covers a wide range of users, guaranteeing fast and effective sterilisation: in 2 minutes it sterilises files, probes and mirrors, surgical instruments, and in 3 minutes curettes and forceps. Recommended for dental, podiatry, veterinary, tattoo and beauty salon use.

This exceptional performance is possible thanks to the 230°C temperature that is kept constant in the tank, ensuring the total destruction of all microorganisms present.

GIMA QUICK has an epoxy powder-coated steel structure; the inner cylinder is completely insulated by fibres and glass, preventing heat from being transmitted to the outer casing. It can function for a whole day.

Supplied with a bag of glass beads.
Manufactured in Italy in accordance with current regulations. - Painted steel outer structure
- Dimensions: 130 x 130 x 190 mm
- Chrome-plated copper basket
- diameter 5.5 cm
- depth 7.5 cm
- Power: 150 W
- Weight: 2.8 Kg
- Power supply: 230 V - 50 Hz
- Conforms to current regulations
- Warranty

TITANOX HOT AIR STERILISERS

- Unit: Thermoventilated
- Capacity: 120 litres
- External dimensions (mm): 835x565xh 555
- Internal measurements (mm): 670x420xh 415

Internal structure and height-adjustable shelves made entirely of stainless steel.
Lockable.

Thermo-ventilated unit: to guarantee temperature uniformity inside the heating chamber and allow air circulation, the unit is equipped with a wired fan that is always running, both during the heating cycle and during the cooling pauses.

- safety thermostat
- fan for forced ventilation
- double control bulb

All models are supplied with manual in: GB, FR, IT (ES on request) and 2 height-adjustable trays.

Made in Italy. Timer: 0-120 minutes, switches off at the end of the programmed time
Probe thermometer: 0° - 200°
Probe thermoregulator: 0° - 200°.
Operating voltage: 230 V - 50/60 Hz

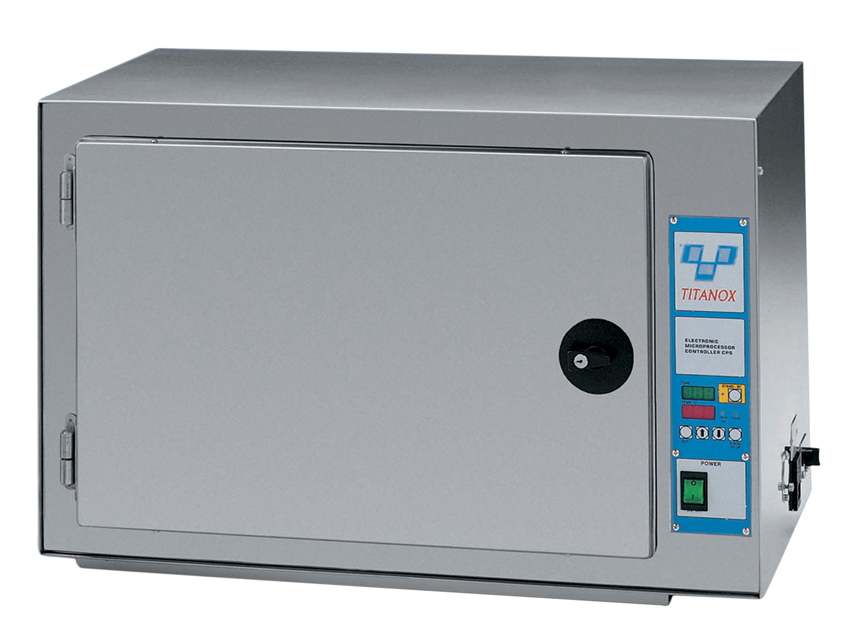

TITANOX HOT AIR STERILISERS

- Unit: Digital
- Capacity: 60 litres
- External dimensions (mm): 705x450xh 475
- Internal measurements (mm): 535x320xh 345

Internal structure and height-adjustable shelves made entirely of stainless steel.
Lockable.

Digital unit: adjustable ventilation tunnels on the right side at the bottom and on the left side at the top for the regulation and circulation of hot air, useful for rapid cooling of the unit.

- electronic C.P.S. operation.
- optimal heat distribution
- automatic indication of any power supply problems (in the event of a power failure, the programme restarts from the beginning)
- safety thermostat

All models are supplied with manual in: GB, FR, IT (ES on request) and 2 height-adjustable trays.

Made in Italy. Operating mode: continuous (standby) or timed
Timer: 0 - 250 minutes
Operating voltage: 230 V - 50/60 Hz
