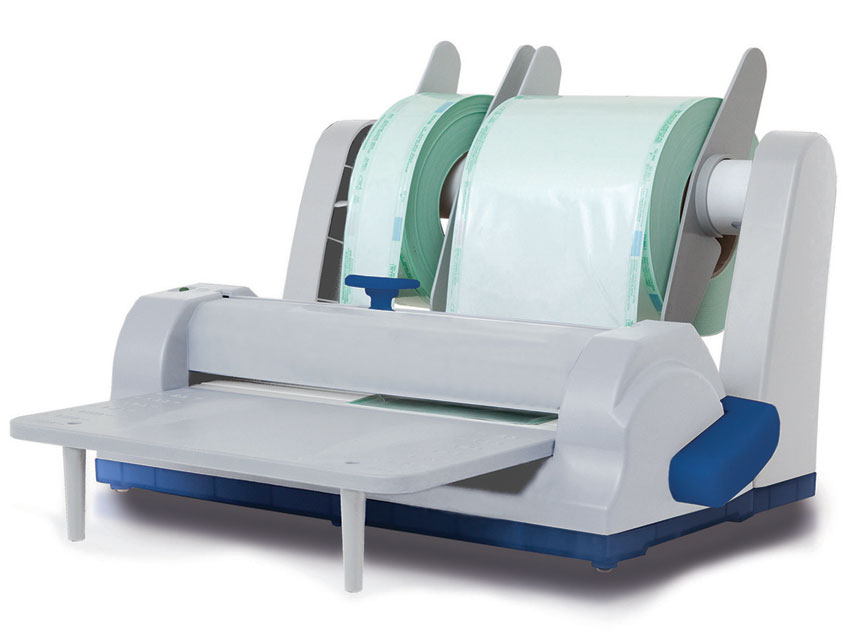

EVO GD-301 THERMOSALDER - complete version, with roll holder, cutter and worktop.

Manual thermosealing machine for sealing medical pouches and rolls according to DIN 58953-7.2008.

New models with 3 ceramic heating elements for faster and more accurate sealing and an improved infeed and outfeed system to keep the film flat and prevent it from moving too much inside the machine.

Extremely small in size, it is perfectly suited for use in dental, medical and veterinary practices.
300 mm sealing bar operated by a hand lever.
Thermo-controlled continuous heat welding.
Vertical design to reduce space requirements.
Integrated with a removable roll holder that can also be positioned separately from the welding machine.
Can only be used with medical PP paper laminates and/or plastic pouches suitable for steam sterilisation. Seal: 12 mm
Welding length: 300 mm
Continuous heat controlled welding
Built-in cutter
Fixed welding temperature and time
Manual operation
Power supply: 230V / 50 / 60 Hz single-phase
Absorption: 900 W
Degree of

Replacement Teflon for electromagnetic heatsealing machine D-351 (code 35900).

Spare heating element for electromagnetic heatsealing machine D-351 (code 35900).

The D-400 automatic is a roller sealer with an automatic photocell drive system. This solution, adopted in clinical and hospital centres, ensures very high production, lack of routine maintenance and fast throughput.

The D-400 automatic is a sophisticated piece of equipment operated with microprocessor control and temperature control. The sealing pressure is automatically adjusted according to the thickness of the different types of sterilising pouches.

The D-400 guarantees the 30 mm safety distance between the contents of the pouch and the inner edge of the seal, according to DIN standards. All studies that wish to certify and document their protocols must use the D-500. Compatible for sealing Tyvek rolls and pouches.

Made in Italy. - Feed speed 6 m/min
- Temperature control: by electric temperature controller
- Sealing temperature: 40° - 200° C
- Temperature tolerance: ±5%.
- Welding: multi-line
- Welding width: 12 mm
- Adjustable edge: 0 ÷ 3

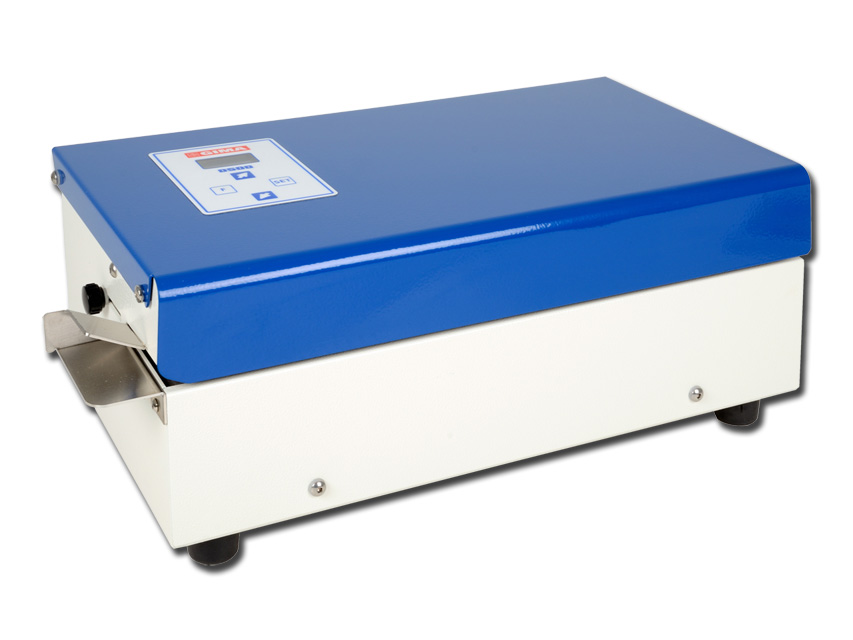

The D-500 automatic is a roller sealer with an automatic photocell drive system. This solution, adopted in clinical and hospital centres, ensures very high production, lack of routine maintenance and production speed.

The D-500 automatic is complete with an integrated printer that during the sealing cycle automatically imprints the packaging date and expiry date on the pouch, as well as the required regulatory symbols. This very important solution allows you to always have control over the real state of sterility of the instruments you process. In fact, as you well know, the paper part of the sterilisation pouches 'releases' after 30 days, thus losing its capacity to keep the treated instruments sterile.

The D-500 automatic is a sophisticated piece of equipment operated with microprocessor control and the possibility of adjusting the operating temperature as well as the printing parameters. The sealing pressure is automatically adjusted according to the thickness of the different types of sterilising pouches.

The D-500 guarantees the 30 mm safety distance between the pouch contents and the inner edge of the seal, according to DIN standards. All studies wishing to certify and document their protocols must use the D-500. Compatible for sealing Tyvek rolls and pouches.

Made in Italy. - Feed speed 6 m/min
- Temperature control: by electric temperature controller
- Sealing temperature: 40° - 180° C
- Temperature tolerance: ±5%.
- Welding: multi-line
- Welding width: 12 mm
- Adjustable edge: 0 ÷ 3

Replacement ink cartridge for traysealers with integrated printer.

For use with:
- Code 35910 ROTARY THERMAL SEALER D-500 with printer
- Code 35916 ROTARY THERMAL SEALER D-700 with printer

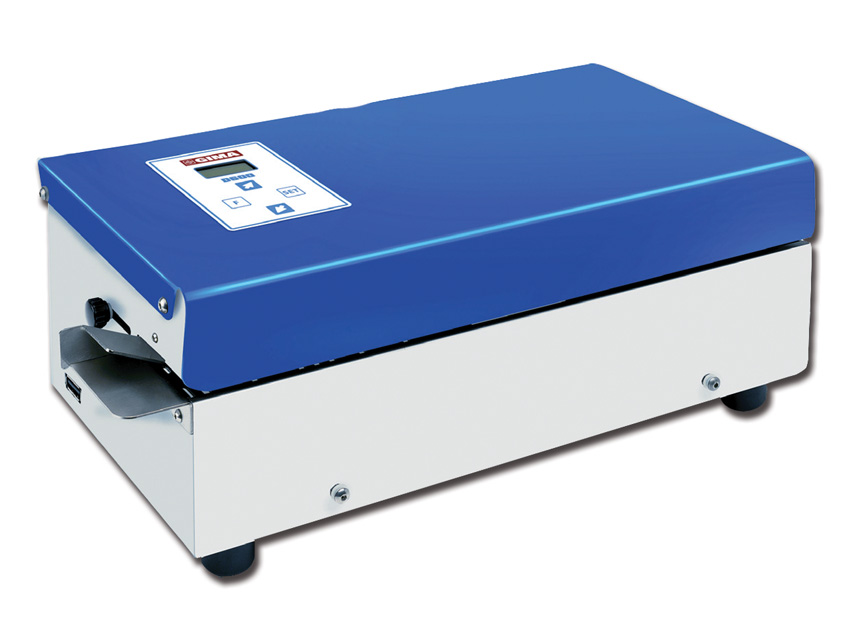

Rotary traysealer with validation system in accordance with ISO 11607 P.2.

The D-600 is designed to continuously monitor all critical process parameters during the entire welding process, namely: Temperature, Speed, Pressure.
The welder guarantees EN 868-5 / ISO 11607 P.2 compliant welding as it is able to monitor in real time the temperature used, the force applied in welding and the flow rate, i.e. the time taken during the welding process. All welding data can be stored on an external medium that can be connected to the welder via a USB port located on the machine.

The D-600 is controlled by a microprocessor. The operator interface is a clear 2-line display integrated in an ergonomic polycarbonate keyboard, located in an extremely accessible position above the welding machine. Simple to use and extremely reliable, the D-600 is the ideal solution for hospitals and clinics that want to equip themselves with instruments compatible with the new ISO standards. Compatible for sealing Tyvek rolls and pouches.

Italian production. - Sealing height: 12 mm
- Sealing: multi-line
- Sealing speed: 6 m/min
- Temperature regulation: 10-200°C ± 5 °C
- Out-of-tolerance alarms
- Automatic stand-by
- 4-key membrane keyboard
- Crystal display

Rotary tray sealer with integrated printer.
ISO 11607 P.2 compliant validation system.

The D-700 is designed to continuously monitor all critical process parameters throughout the welding process, namely: Temperature, Speed, Pressure.
The welder guarantees EN 868-5 / ISO 11607 P.2 compliant welding as it is able to monitor in real time the temperature used, the force applied in welding and the flow rate, i.e. the time taken during the welding process. All welding data can be stored on an external medium that can be connected to the welder via a USB port located on the machine.

The D-700 is controlled by a microprocessor. The operator interface is a clear 2-line display integrated in an ergonomic polycarbonate keyboard, located in an extremely accessible position above the welding machine. Simple to use and extremely reliable, the D-700 is the ideal solution for hospitals and clinics that want to equip themselves with instruments compatible with the new ISO standards. Compatible for sealing Tyvek rolls and pouches.

Italian production. - Sealing height: 12.5 mm
- Sealing: multi-line
- Sealing speed: 8,5 m/min
- Temperature regulation: 10-200°C ± 5 °C
- Out-of-tolerance alarms
- Automatic stand-by
- 4-key membrane keyboard
- Crystal display

Product available while stocks last.

Replacement ceramic heating elements for EVO GD-301 traysealer

For use with:
- Part no. 35928 EVO GD-301 THERMAL SEALER - machine only
- Code 35929 EVO GD-301 THERMAL SEALER - complete
