Vasofix® Safety from B. Braun is a FEP, radiopaque, dual-path intravenous catheter with fixation fins. They are equipped with a clip-on safety mechaniscm, which is automatically activated, to prevent operator and patient puncture. The ergonomic design allows one-handed insertion, and the bevel with triple sharpening ensures minimal trauma during puncture.

Indications for Vasofix®:
- Setting up peripheral venous or arterial access
- Transfusions and infusions of peripherally applicable venous infusion solutions
- Repeated intravenous administrations of drugs
- Repeated blood draws
- Endoarterial measurement of blood pressure - Reference color: gray
- Fins presence: yes
- Number of ways: 2
- Catheter material: FEP
- Needle size: 16Gx50mm
- Flow Rate: 196 ml/min
- Sterilized by Ethylene Oxide

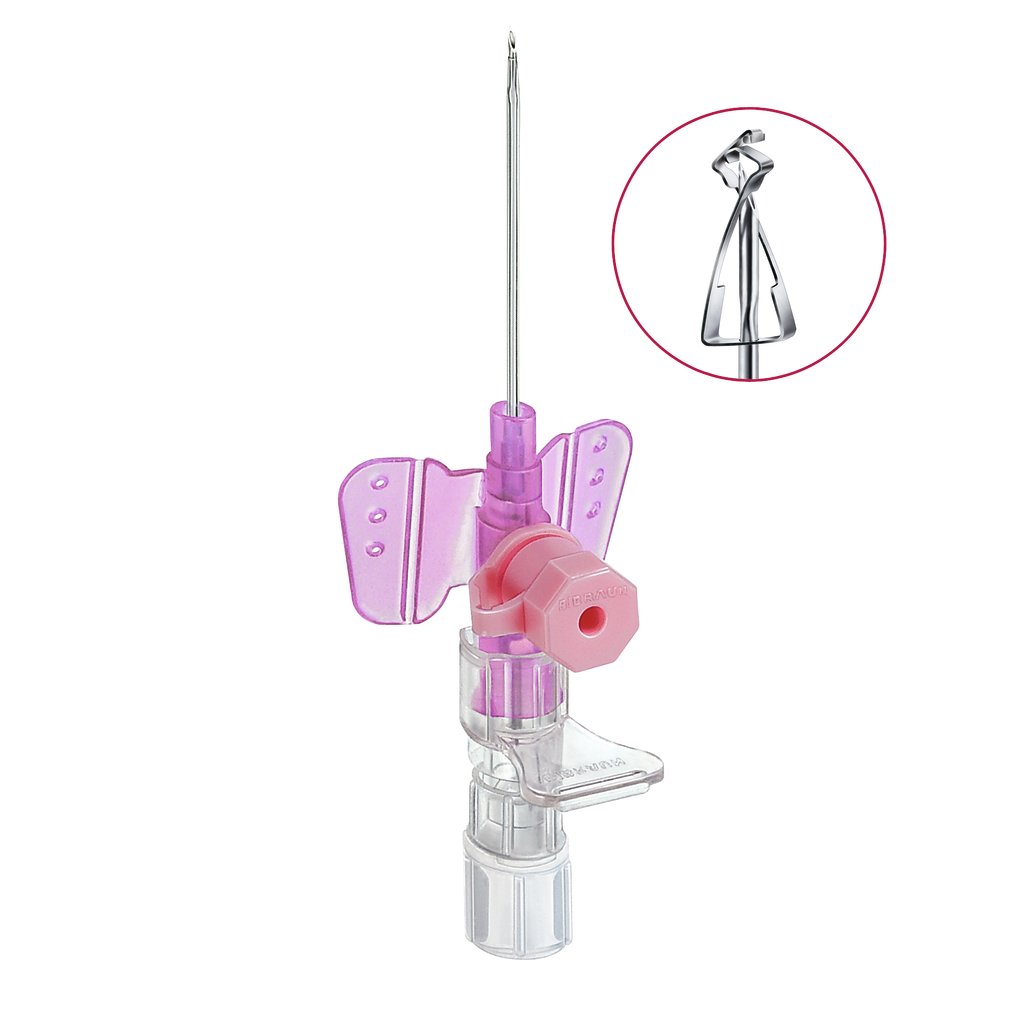

Vasofix® Safety from B. Braun is a FEP, radiopaque, dual-path intravenous catheter with fixation fins. They are equipped with a clip-on safety mechaniscm, which is automatically activated, to prevent operator and patient puncture. The ergonomic design allows one-handed insertion, and the bevel with triple sharpening ensures minimal trauma during puncture.

Indications for Vasofix®:
- Setting up peripheral venous or arterial access
- Transfusions and infusions of peripherally applicable venous infusion solutions
- Repeated intravenous administrations of drugs
- Repeated blood draws
- Endoarterial measurement of blood pressure - Reference color: orange
- Fins presence: yes
- Number of ways: 2
- Catheter material: FEP
- Needle size: 14Gx50mm
- Flow Rate: 343 ml/min
- Sterilized by Ethylene Oxide

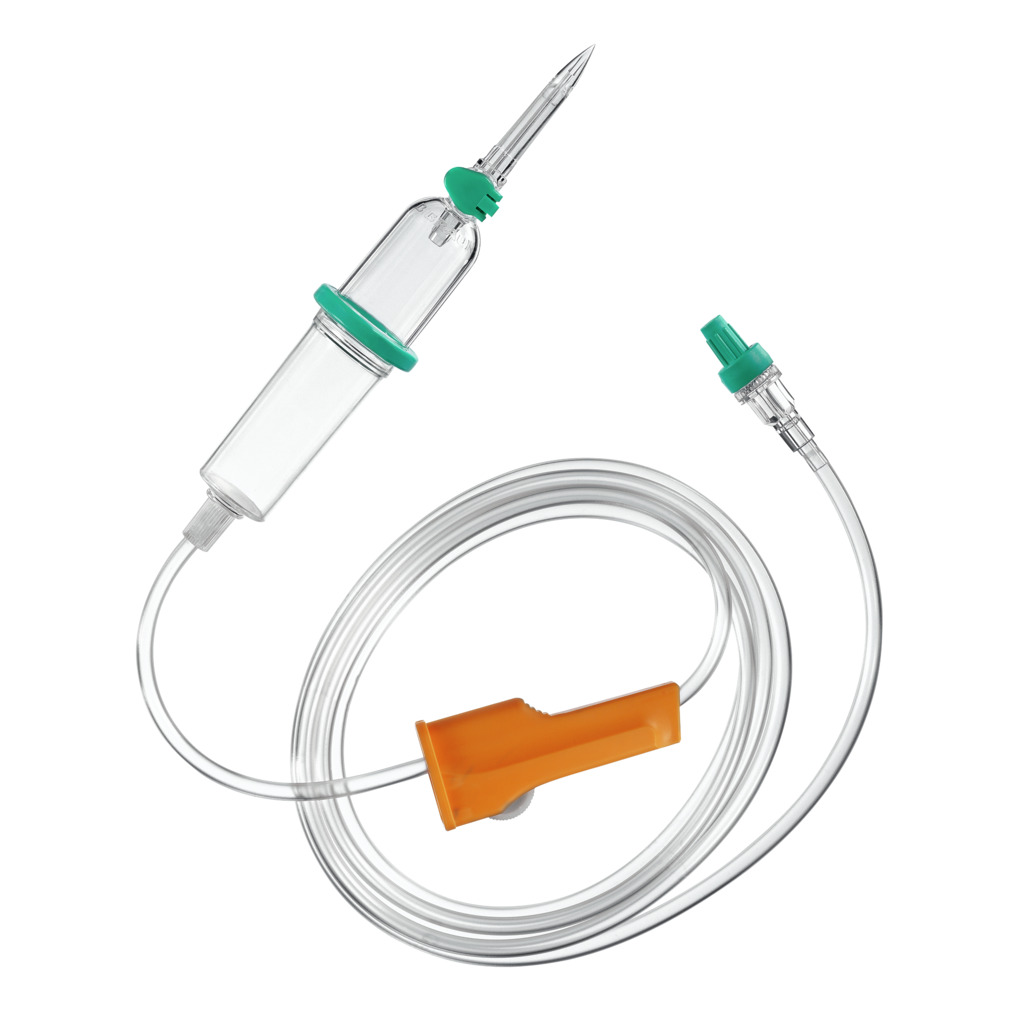

Anti-drip (PRIME-STOP) and anti-emptying (AIR-STOP) infusion flowers for infusion of drugs (e.g., drugs to restore hydro-saline balance, parenteral nutrition, volume expanders, antibiotics, cytostatics, other drugs, ectc ), infusion solutions, and parenteral nutrition through appropriate infusion routes. Composition:
Perforator: dual way (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation

Drip chamber: Equipped with AirStop filter with 15 µm filtering capacity heat-sealed at the base of the chamber capable of retaining particulate matter and preventing air from passing into the tubing following the emptying of the drip chamber. This mechanism provides an opportunity for the drip chamber to be filled several times without air entry.

Air intake valve: For pressure compensation during infusion sa rigid plastic or glass bottle. Equipped with antibacterial, hydrophobic filter with filtering capacity of 1.2 µm and protected by easily opened cap ("open-close" type device ). The valve complies with NIOSH 2004 canons of ''Closed System,'' isolating the system by preventing contamination of the line and the environment.

Anti-drip (PRIME-STOP) and anti-emptying (AIR-STOP) infusion flowers for infusion of drugs (e.g., drugs to restore hydro-saline balance, parenteral nutrition, volume expanders, antibiotics, cytostatics, other drugs, ectc ), infusion solutions, and parenteral nutrition through appropriate infusion routes. Composition:
Perforator: dual way (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation

Drip chamber: Equipped with AirStop filter with 15 µm filtering capacity heat-sealed at the base of the chamber capable of retaining particulate matter and preventing air from passing into the tubing following the emptying of the drip chamber. This mechanism provides an opportunity for the drip chamber to be filled several times without air entry.

Air intake valve: For pressure compensation during infusion sa rigid plastic or glass bottle. Equipped with antibacterial, hydrophobic filter with filtering capacity of 1.2 µm and protected by easily opened cap ("open-close" type device ). The valve complies with NIOSH 2004 canons of ''Closed System,'' isolating the system by preventing contamination of the line and the environment.

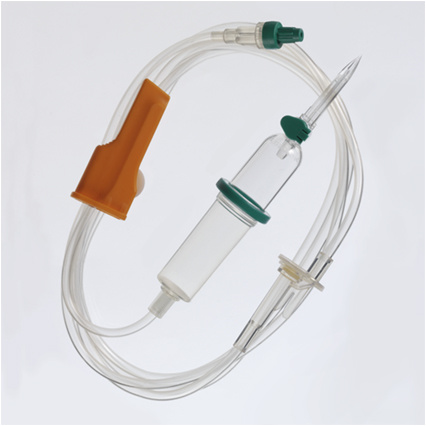

Anti-drip (PRIME-STOP) and anti-emptying (AIR-STOP) infusion flower for infusion of drugs (e.g., drugs to restore hydro-saline balance, for parenteral nutrition, volume expanders, antibiotics, cytostatics, other drugs, ectc ), infusion solutions, and parenteral nutrition through appropriate infusion routes. Present injection point for second route Composition:
Perforator: dual way (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation

Drip chamber: Equipped with AirStop filter with 15 µm filtering capacity heat-sealed at the base of the chamber capable of retaining particulate matter and preventing air from passing into the tubing following the emptying of the drip chamber. This mechanism provides an opportunity for the drip chamber to be filled several times without air entry.

Air intake valve: For pressure compensation during infusion sa rigid plastic or glass bottle. Equipped with antibacterial, hydrophobic filter with filtering capacity of 1.2 µm and protected by easily opened cap ("open-close" type device ). The valve complies with NIOSH 2004 canons of ''Closed System,'' isolating the system by preventing contamination of the line and the environment.

Anti-drip (PRIME-STOP) and anti-emptying (AIR-STOP) infusion flowers for infusion of drugs (e.g., drugs to restore hydro-saline balance, parenteral nutrition, volume expanders, antibiotics, cytostatics, other drugs, ectc ), infusion solutions, and parenteral nutrition through appropriate infusion routes. Composition:
Perforator: dual way (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation

Drip chamber: Equipped with AirStop filter with 15 µm filtering capacity heat-sealed at the base of the chamber capable of retaining particulate matter and preventing air from passing into the tubing following the emptying of the drip chamber. This mechanism provides an opportunity for the drip chamber to be filled several times without air entry.

Air intake valve: For pressure compensation during infusion sa rigid plastic or glass bottle. Equipped with antibacterial, hydrophobic filter with filtering capacity of 1.2 µm and protected by easily opened cap ("open-close" type device ). The valve complies with NIOSH 2004 canons of ''Closed System,'' isolating the system by preventing contamination of the line and the environment.

Anti-drip (PRIME-STOP) and anti-emptying (AIR-STOP) infusion flowers for infusion of drugs (e.g., drugs to restore hydro-saline balance, parenteral nutrition, volume expanders, antibiotics, cytostatics, other drugs, ectc ), infusion solutions, and parenteral nutrition through appropriate infusion routes. Composition:
Perforator: dual way (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation

Drip chamber: Equipped with AirStop filter with 15 µm filtering capacity heat-sealed at the base of the chamber capable of retaining particulate matter and preventing air from passing into the tubing following the emptying of the drip chamber. This mechanism provides an opportunity for the drip chamber to be filled several times without air entry.

Air intake valve: For pressure compensation during infusion sa rigid plastic or glass bottle. Equipped with antibacterial, hydrophobic filter with filtering capacity of 1.2 µm and protected by easily opened cap ("open-close" type device ). The valve complies with NIOSH 2004 canons of ''Closed System,'' isolating the system by preventing contamination of the line and the environment.

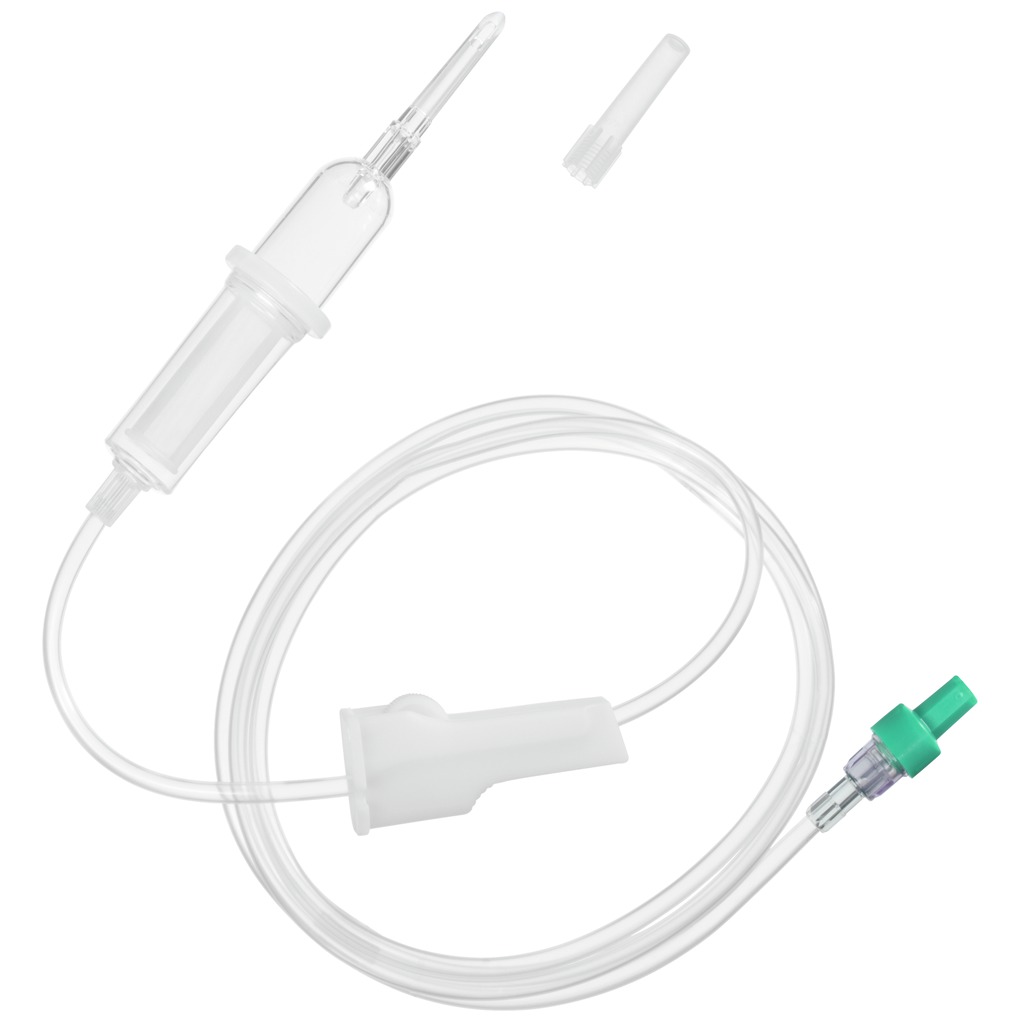

Infusion set intended for gravity administration of blood and blood derivatives intravenously Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped with a 200 µm tubular filter
- Filling volume lower part: 10.5 ml

Perforator without air intake
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation
- Calibrated to obtain 20 drops of distilled water per milliliter

Tubing
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 6.3 ml/m at 40°C and 2 bar
- Total length: 180 cm (code 4116011F) and 150 cm (code 4117301)
- High transparency

Infusion set intended for gravity administration of blood and blood derivatives intravenously Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped with a 200 µm tubular filter
- Filling volume lower part: 10.5 ml

Perforator with air intake
- Dual way, liquid and air
- Provided with air and liquid holes spaced to minimize air bubble recalls in the liquid pathway
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during perforation
- Calibrated to achieve 20 drops of distilled water per milliliter

Tubing
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 6.3 ml/m at 40°C and 2 bar
- Total length: 180 cm (code 4116011F) and 150 cm (code 4117301)
- High transparency

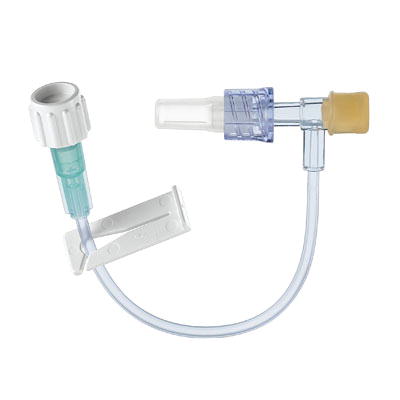

T-extension with injection point and slide clamp

■ Female Luer-Lock connector
■ Latex-free and DEHP-free outer ø 2.4 mm
inner ø 1.3 mm
Volume 0.1 ml
Length 10 cm
