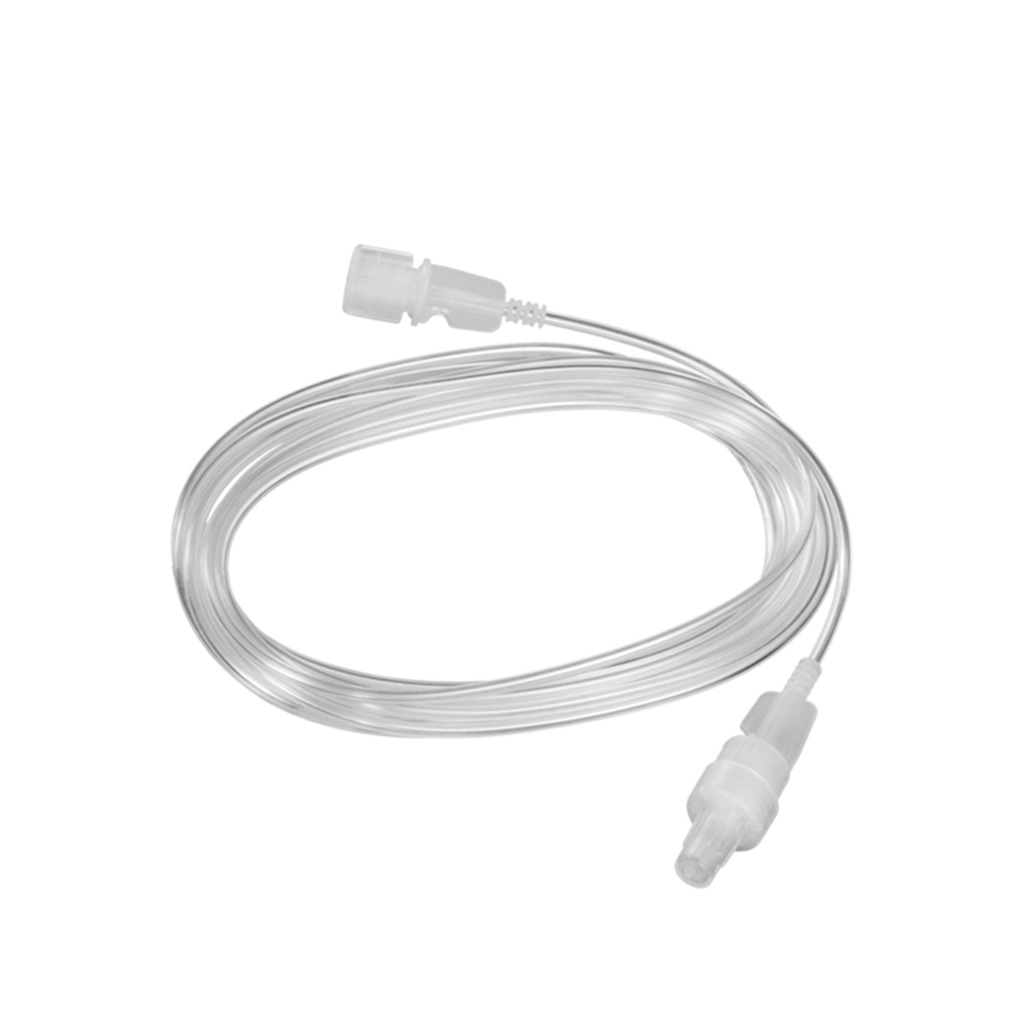

Perfusor® sets are low residual/fill volume extension tubing specifically intended for use with all syringe infusion pumps, for infusion of drugs, infusion solutions, nutritional solutions and contrast media. Luer-Lock Connections Composition:

- Tubing: polyvinyl chloride (PVC) DEHP-free or polyethylene (PE), Latex-free
- Luer-lock fittings: acrylonitrile-butadiene-styrene (ABS)
- Other materials used for protective caps, fittings, regulators, clamps, etc.: PP, PS,PE, SB, ASA

Infusion infuser for infusion of drugs, infusion solutions, parenteral nutrition and blood products.
Dedicated for use with B. Braun Space and SpacePlus positive displacement pumps. Composition:

Dual way perforator, (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling

Highly transparent drip chamber easily compressible in its lower part for liquid recall. Equipped at the base with a 15-mm particle retention filter

Air intake valve for pressure compensation during infusion from plastic bottle
rigid or glass. Equipped with antibacterial, hydrophobic filter and protected by "open-open" type cap

Undeformable pump segment with inner diameter 4.0 mm and outer diameter 6.0 mm

Infusion infuser for infusion of drugs, infusion solutions, parenteral nutrition and blood products.
Dedicated for use with B. Braun Space and SpacePlus positive displacement pumps. Composition:

Dual way perforator, (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling

Highly transparent drip chamber easily compressible in its lower part for liquid recall. Equipped at the base with a 15-mm particle retention filter

Air intake valve for pressure compensation during infusion from plastic bottle
rigid or glass. Equipped with antibacterial, hydrophobic filter and protected by "open-open" type cap

Undeformable pump segment with inner diameter 4.0 mm and outer diameter 6.0 mm

Infusion infuser for infusion of drugs, infusion solutions, parenteral nutrition and blood products.
Dedicated for use with B. Braun Space and SpacePlus positive displacement pumps. Composition:

Dual way perforator, (liquids and air) provided with air and liquid holes spaced to minimize air bubble calls in the liquid way. Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling

Highly transparent drip chamber easily compressible in its lower part for liquid recall. Equipped at the base with a 15-mm particle retention filter

Air intake valve for pressure compensation during infusion from plastic bottle
rigid or glass. Equipped with antibacterial, hydrophobic filter and protected by "open-open" type cap

Undeformable pump segment with inner diameter 4.0 mm and outer diameter 6.0 mm

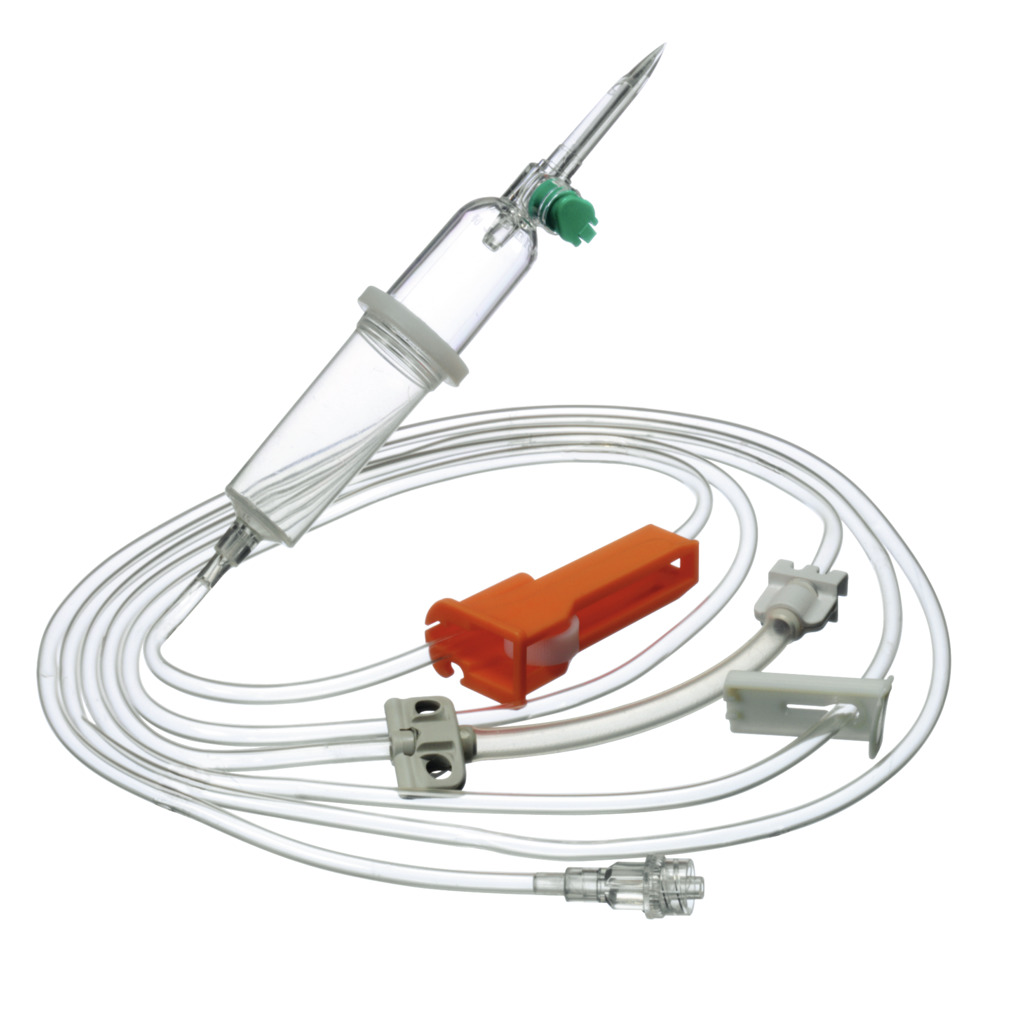

Infusion pump infuser B. Braun Infusomat Compact Plus for infusion of drugs, infusion solutions, chemotherapy and parenteral nutrition through appropriate infusion routes. Perforator
- Dual way, liquid and air
- Provided with air and liquid holes spaced to minimize air bubble recalls in the liquid pathway
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling
- Calibrated to achieve 20 drops of distilled water per milliliter

Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped at the base with AIR-STOP filter: a three-dimensional type filter that retains particulate matter (> 15 µm) and prevents air from passing into the tubing following emptying of the drip chamber

Tubing
(referring to Infusomat Standard set)
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 7 ml/m at 40°C and 2 bar
- Total length 240 cm, pump-patient section 150 cm
- High transparency

Precision Roller Clamp
- Ergonomic
- Equipped with non-slip resistant knurled wheel
- Equipped with hook for positioning the end of the outflow device during filling and stand-by period before connection to the patient
- Equipped with perforator port for safe disposal

Segment for Pump
- Segment that adheres to the peristalsis of the volumetric pump
- Inner diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High strength
- Indeformable

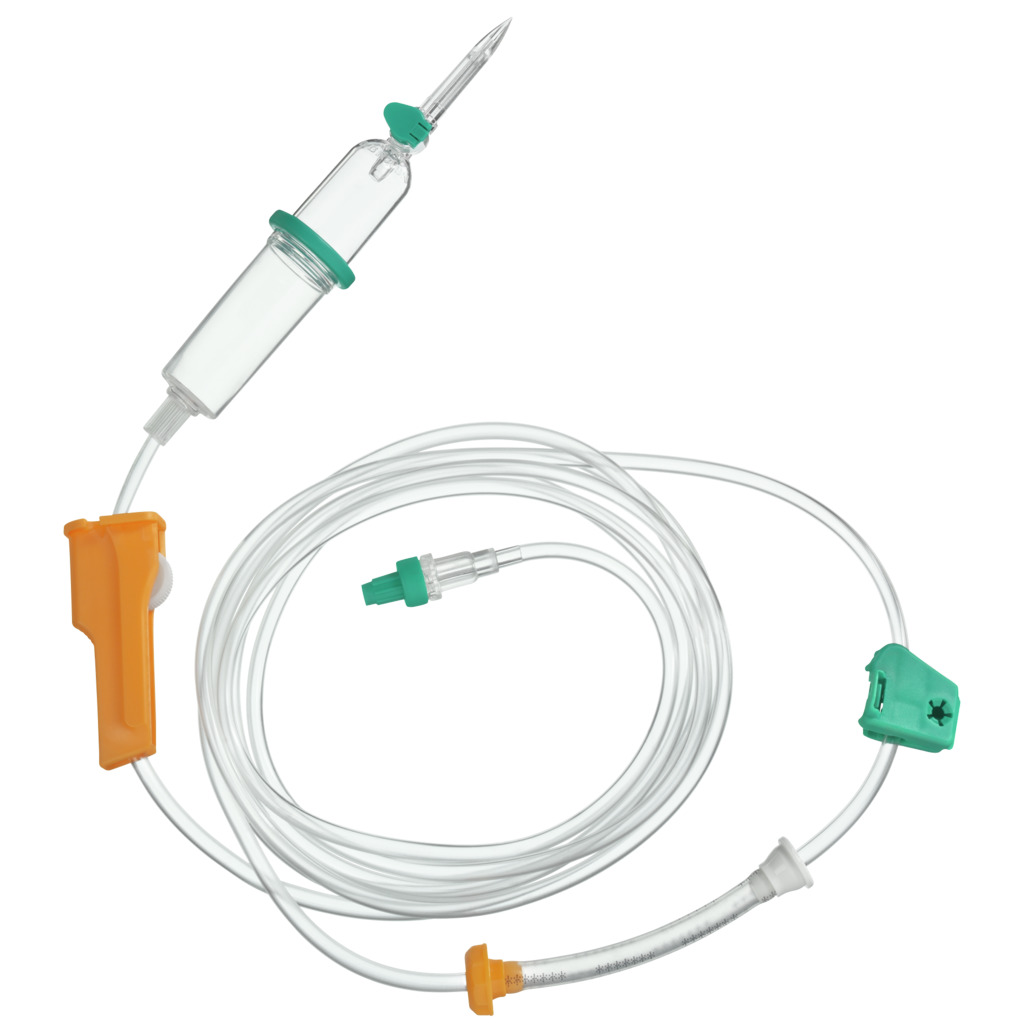

Infusion nozzle for pump B. Braun Infusomat Compact Plus for infusion of blood and blood products, with needle-free injection point Perforator
- Dual way, liquid and air
- Provided with air and liquid holes spaced to minimize air bubble recalls in the liquid pathway
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling
- Calibrated to achieve 20 drops of distilled water per milliliter

Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped at the base with AIR-STOP filter: a three-dimensional type filter that retains particulate matter (> 15 µm) and prevents air from passing into the tubing following emptying of the drip chamber

Tubing
(referring to Infusomat Standard set)
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 7 ml/m at 40°C and 2 bar
- Total length 240 cm, pump-patient section 150 cm
- High transparency

Precision Roller Clamp
- Ergonomic
- Equipped with non-slip resistant knurled wheel
- Equipped with hook for positioning the end of the outflow device during filling and stand-by period before connection to the patient
- Equipped with perforator port for safe disposal

Segment for Pump
- Segment that adheres to the peristalsis of the volumetric pump
- Inner diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High strength
- Indeformable

Infusion pump infuser B. Braun Infusomat Compact Plus for infusion of drugs, infusion solutions, chemotherapy drugs with injection point without use of needles Perforator
- Dual way, liquid and air
- Provided with air and liquid holes spaced to minimize air bubble recalls in the liquid pathway
- Free of asperities so as not to cause fragments to detach from the elastomeric membrane of bottles/bags/bottles during drilling
- Calibrated to achieve 20 drops of distilled water per milliliter

Drip chamber
- With high transparency
- Wide
- Easily compressible at its bottom for liquid recall
- Equipped at the base with AIR-STOP filter: a three-dimensional type filter that retains particulate matter (> 15 µm) and prevents air from passing into the tubing following emptying of the drip chamber

Tubing
(referring to Infusomat Standard set)
- Inner diameter: 3.0 mm
- Outer diameter: 4.1 mm
- Bolus volume: 7 ml/m at 40°C and 2 bar
- Total length 240 cm, pump-patient section 150 cm
- High transparency

Precision Roller Clamp
- Ergonomic
- Equipped with non-slip resistant knurled wheel
- Equipped with hook for positioning the end of the outflow device during filling and stand-by period before connection to the patient
- Equipped with perforator port for safe disposal

Segment for Pump
- Segment that adheres to the peristalsis of the volumetric pump
- Inner diameter: 4.0 mm
- Outer diameter: 6.0 mm
- High strength
- Indeformable

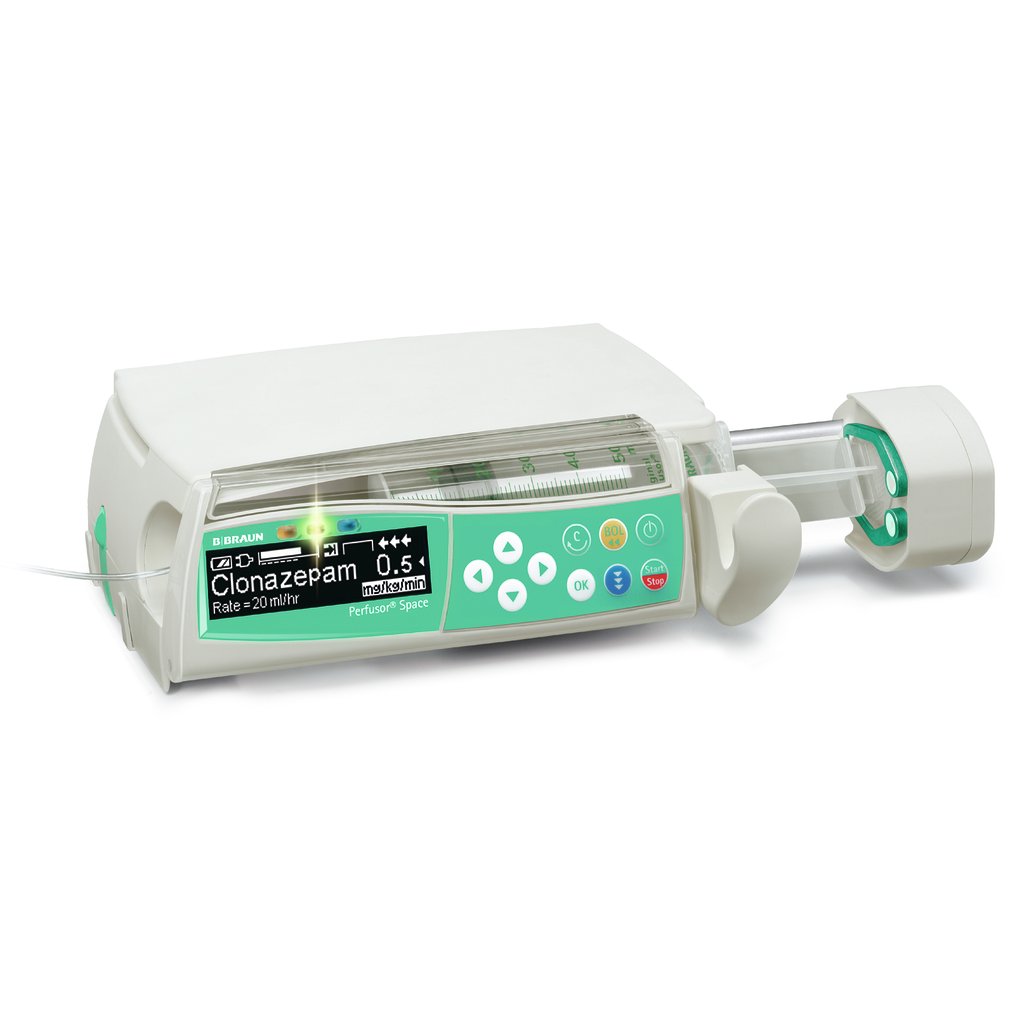

Transportable syringe infusion pump for administering small volumes of drugs, infusion and nutritional solutions. The Perfusor® Space pump meets all safety standards for electronic medical devices according to IEC/EN 60601-1 and IEC/EN 60601-2-24. It can be used individually or in combination with the B. Braun Space, made for housing the Space family of pumps in an infusion station that provides power and data transmission, if applicable, of infusion therapy information. Benefits

- Intuitive and standardized user interface for both B pumps. Braun Space
- Automatic calculation of infusion rate based on volume and duration
- Automatic calculation of infusion rate based on drug concentration and desired dosage
- Accumulator autonomy about 8 hours at the rate of 25 ml/h. Charging time about 6 hours
- Connection to computer via USB connection with B cable. Braun (8713230) and cable power supply

Drug Archive

- Up to 1,200 medications, including therapy data, can be stored in 30 categories
- Up to 50 units of care available and 15 patient profiles
- Specific infusion limits and standard infusion values can be described for each drug

Safety features

- Integrated free anti-flow blade, which automatically locks the plunger and prevents accidental boluses during syringe changes
- Automatic syringe attachment due to the automated push arm, which ensures excellent start-up and simplicity in syringe changing
- Automatic bolus reduction following an occlusion alarm
- Data lock (parameter lock and/or disposable devices) on 3 safety levels
- Can be used with 2.5ml to 50ml syringes of validated brands in datasheet or their compatibles

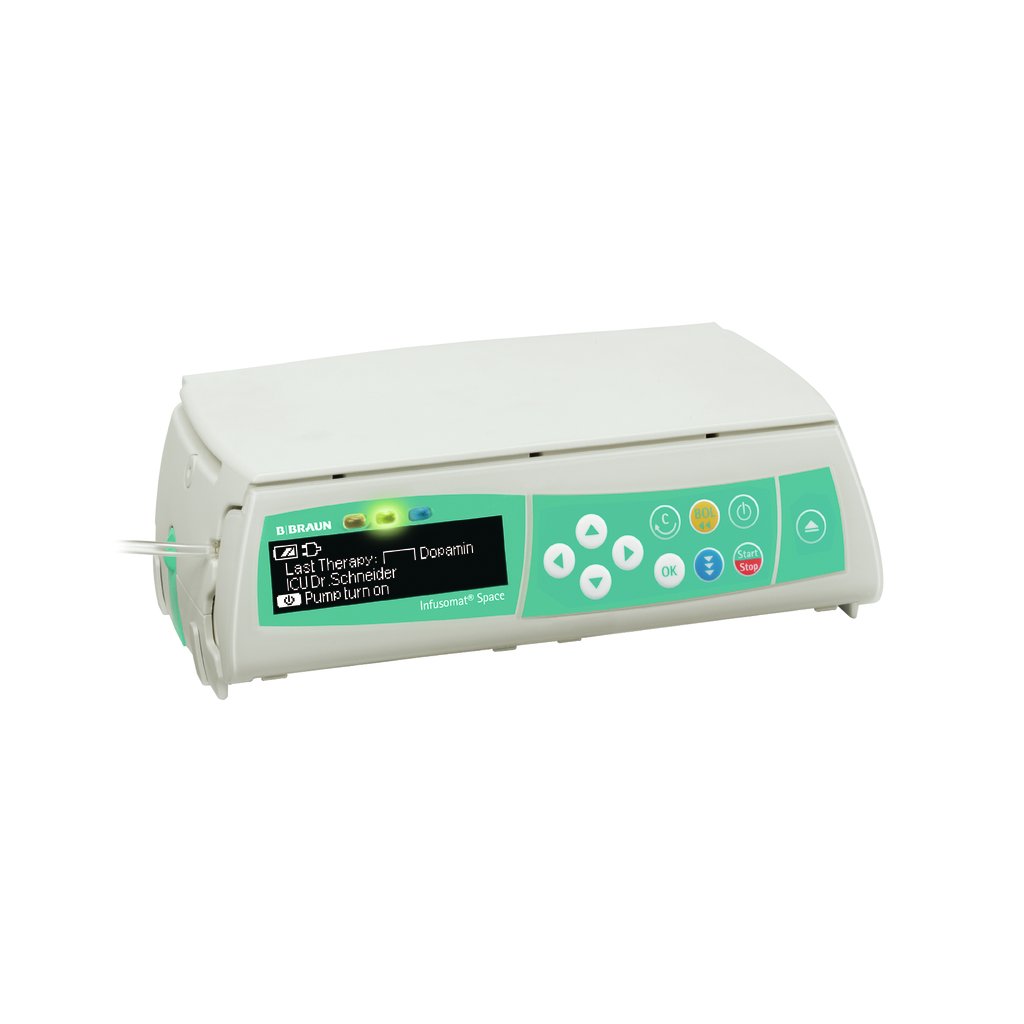

Transportable peristaltic infusion pump for administering small volumes of drugs, infusion and nutritional solutions. The Infusomat® Space pump meets all safety standards for electronic medical devices according to IEC/EN 60601-1 and IEC/EN 60601-2-24. It can be used individually or in combination with the B. Braun Space, made for housing the Space family of pumps in an infusion station that provides power and data transmission, if applicable, of infusion therapy information. Benefits

- Intuitive and standardized user interface for both B pumps. Braun Space
- Automatic calculation of infusion rate based on volume and duration
- Automatic calculation of infusion rate based on drug concentration and desired dosage
- Accumulator autonomy about 8 hours at the rate of 25 ml/h. Charging time about 6 hours
- Connection to computer via USB connection with B cable. Braun (8713230) and cable power supply

Drug Archive

- Up to 1,200 medications, including therapy data, can be stored in 30 categories
- Up to 50 units of care available and 15 patient profiles
- Specific infusion limits and standard infusion values can be described for each drug

Safety features

- Built-in safety device in the pump and infuser for maximum protection against free flow when opening the pump door, or when removing the infuser
- Automatic bolus reduction following occlusion alarm. Additional pressure sensor checks for upstream occlusions (e.g., closed roller clamp)
- Data lock (parameter lock and/or disposable devices) on 3 security levels
- LED alarm indicator with error messages on display

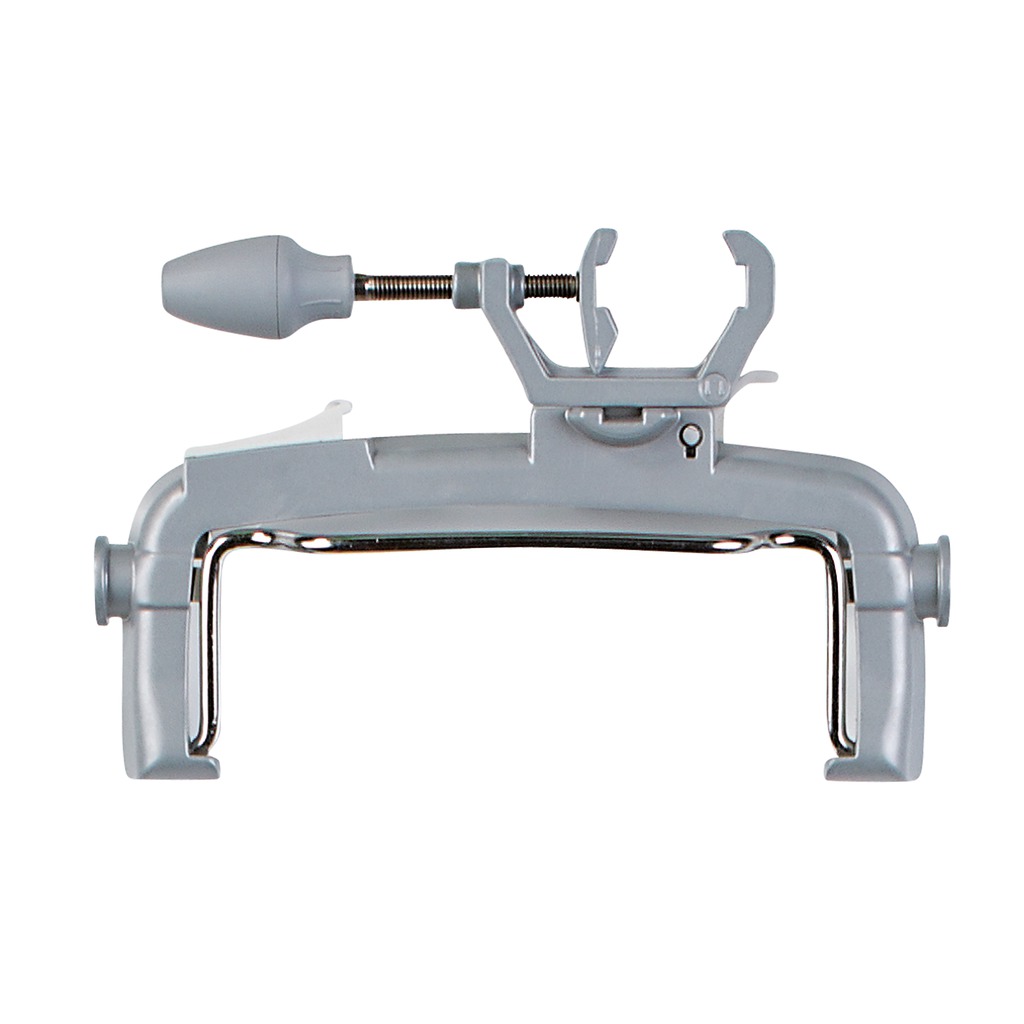

Handle for carrying and supporting single Infusomat®, Perfusor® Space pumps or up to three stacked and mutually attached.
Through the swivel attachment, it is easily adaptable to tubular supports between 16 and 40 mm in diameter, as well as horizontal bars in accordance with EN1789
