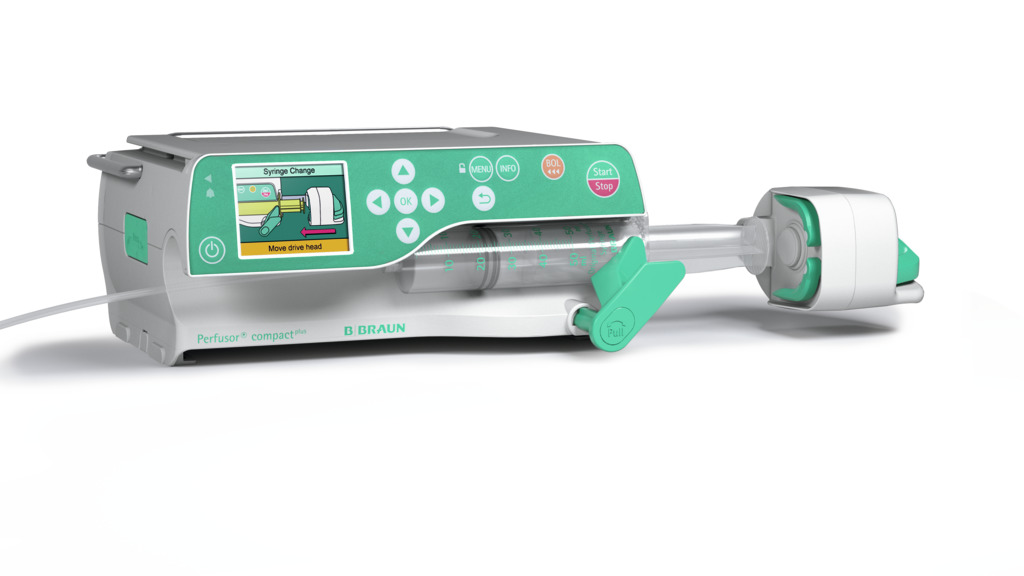

The Perfusor® compactplus infusion pump is a transportable infusion syringe pump for use in conjunction with approved syringes and accessories. The pump is intended for use in neonatal, pediatric and adult patients for continuous or intermittent administration of parenteral and enteral solutions through clinically appropriate access routes. These access routes include, but are not limited to, intravenous, intra-arterial, subcutaneous, epidural, and enteral routes. The system is used for the
administration of drugs intended for infusion therapy. This includes anesthetics, sedatives, analgesics, catecholamines, etc.; blood or blood components; solutions for parenteral or enteral nutrition; and lipids. A device that uses the piston section of a validated syringe, automatically identified by the syringe hook to correlate its controlled linear displacement with the rate of infusion.

The offered Perfusor Compact Plus pump works with validated syringes and extensions having universal attachments for connection to needles, cannulas or other injection devices of different sizes. Perfusor ® compactplus can be used only by health care personnel trained in its proper use, in the hospital, home, outpatient and on medical transport vehicles. The medical professional must decide on the possibilities of use in relation to the manufacturer's guaranteed properties and technical characteristics. Display
- Color backlit graphic display: 240 x 320 pixels at 262k colors
- Information display from high distance and up to 80° angle in each direction
- Guiding images
- Adjustable brightness. Night Mode available (manual or automatic adjustment from set time).

Range of Continuous Infusion Rate
- 0.01 - 999.9 ml/h (max variable speed depending on syringe size) in 0.01 ml/h increments
- Factory setting: 0.1 - 200 ml/h

Bolus Speed Range
- 1 - 1800 ml/h (max variable speed depending on syringe size)

Bolus Function 3 bolus delivery modes available:
- Manual Bolus: Activated by pressing the BOL button
- Bolus with Volume Preselection: 0.1 - 50 ml
- Bolus with Volume and Duration Preselection: 0.1 - 50 ml and 1 min - 24 h

Preselection Infusion Volume and Duration.
- 0.1 ml - 9999 ml in increments of 0.01 ml
- 00:01 - 99:00 h

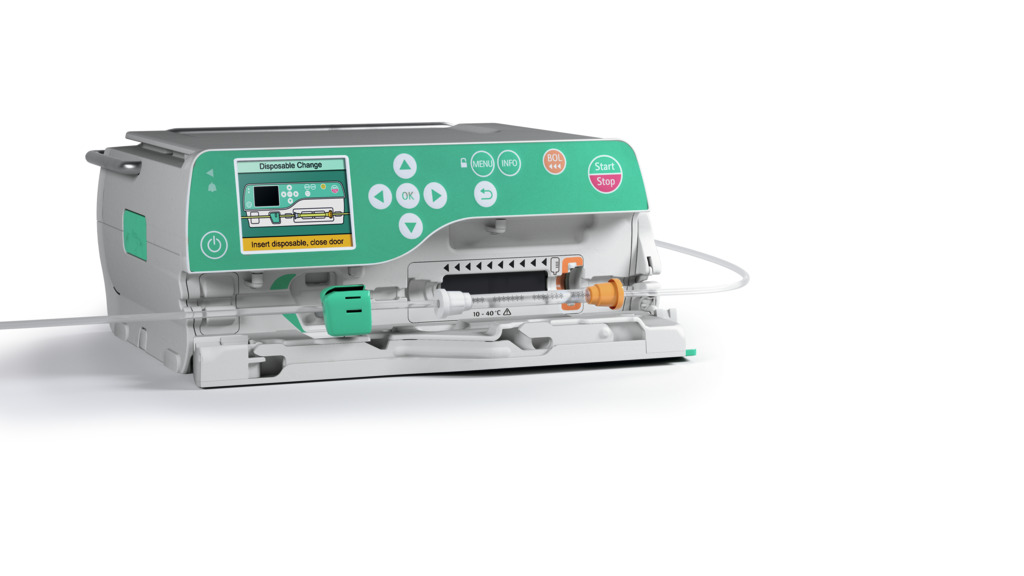

The Infusomat® compact plus infusion pump is a transportable peristaltic volumetric infusion pump for use with dedicated infusion lines and approved accessories. The pump is intended for use in neonatal, pediatric and adult patients for continuous or intermittent administration of parenteral and enteral solutions through clinically appropriate access routes. These access routes include, but are not limited to, intravenous, intra-arterial, subcutaneous, epidural, and enteral routes.
The system is used for the administration of drugs intended for infusion therapy. Included are anesthetics, sedatives, analgesics, catecholamines, etc.; blood or blood components; solutions for parenteral or enteral nutrition; and lipids. Depending on the infused drug specialty, the pump features a wide range of defluxers having universal attachment and harmonized to current regulations and standards.

Infusomat® compact plus may be used only by health care personnel trained in its proper use,in the hospital, home, outpatient and on medical transport vehicles. The medical specialist must decide on the possibilities of use in relation to the manufacturer's guaranteed properties and technical characteristics. Display
- Color backlit graphic display: 240 x 320 pixels at 262k colors
- Information display from high distance and up to 80° angle in each direction
- Guiding images
- Adjustable brightness. Night Mode available (manual or automatic adjustment from set time).

Range of Continuous Infusion Rate
- 0.1 ml/h - 1200 ml in 0.01 ml increments

Bolus Rate Range
- 1 ml/h - 1200 ml/h

3 bolus delivery modes available:
- Manual Bolus: Activated by pressing the BOL button
- Bolus with Volume Preselection: 0.1 - 99.99 ml
- Bolus with Volume and Duration Preselection: 0.1 - 99.99 ml and 1 min - 24 h

Preselection Infusion Volume and Duration
- 0.1 ml - 9999 ml in 0.01 ml increments
- 00:01 - 99:59 h

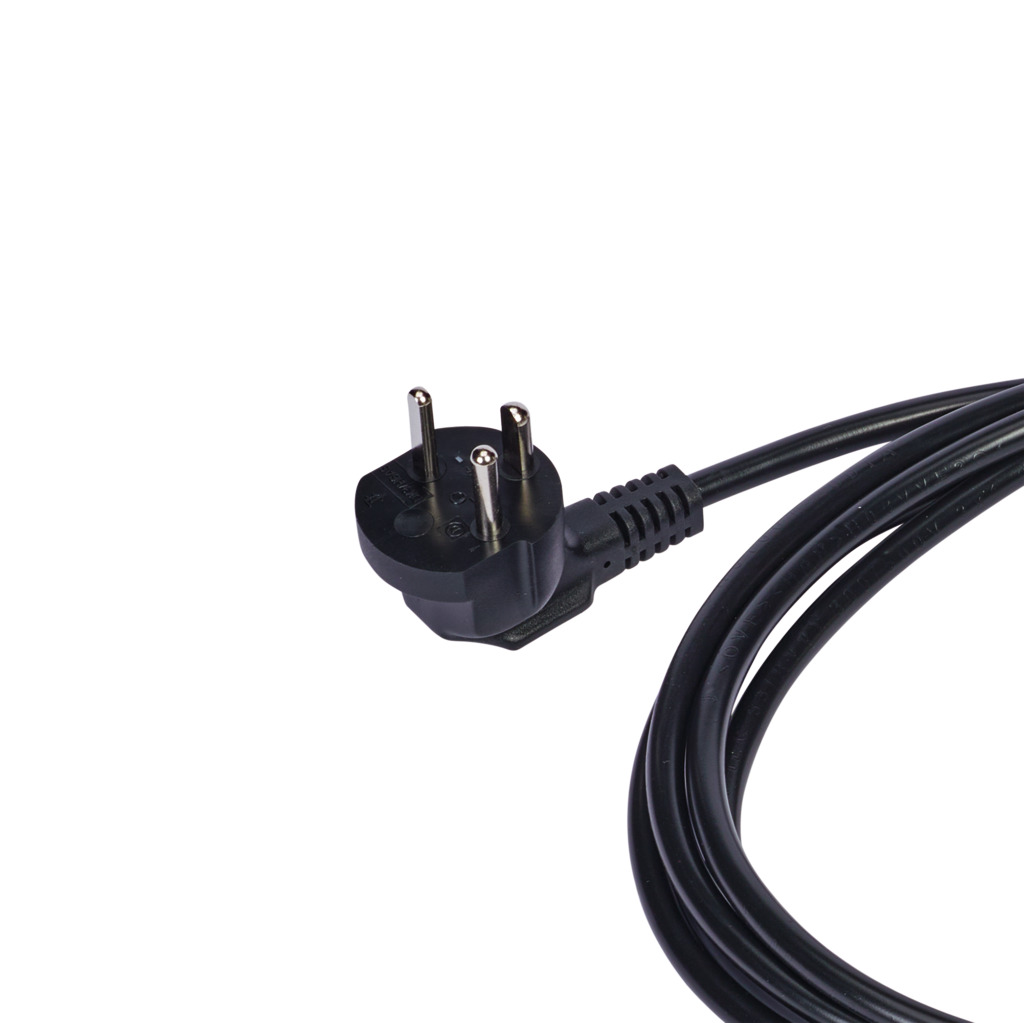

Power cable for pumps B. Braun SpacePlus

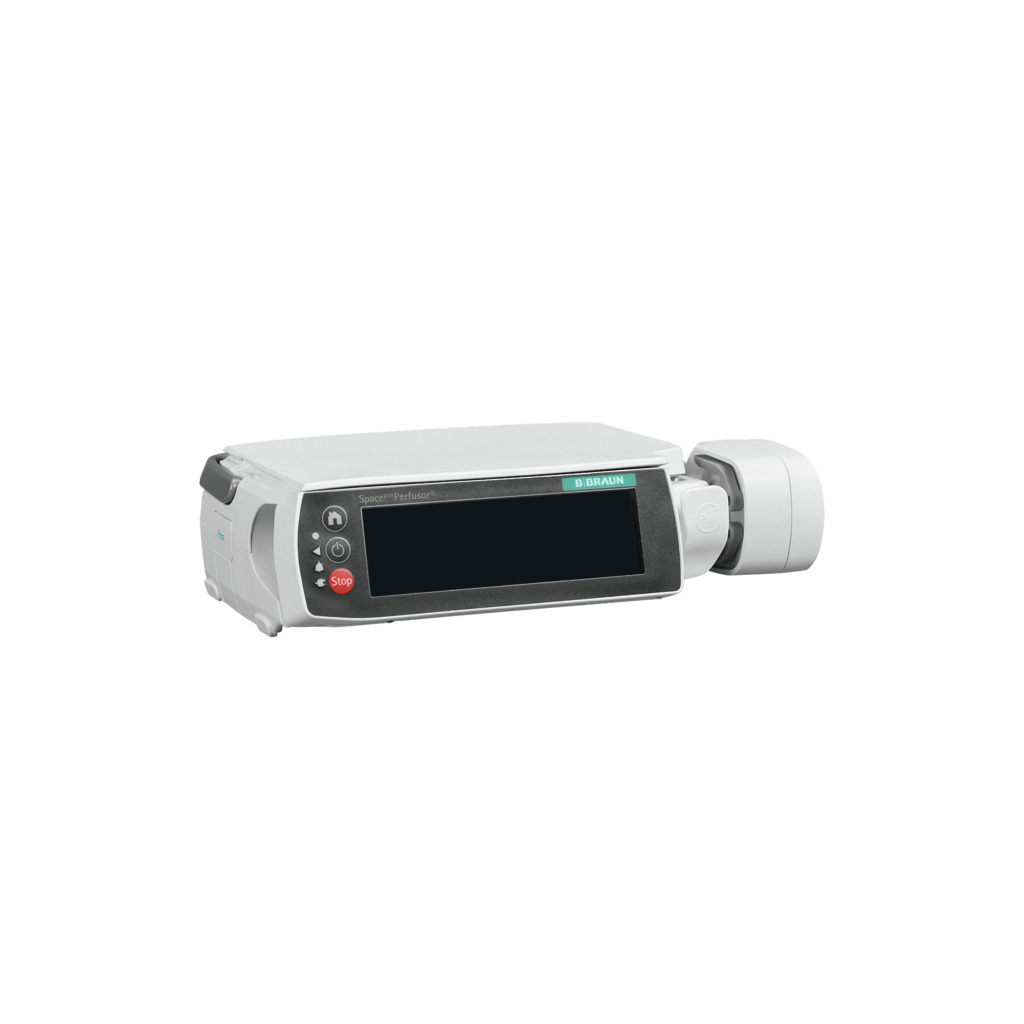

Transportable syringe infusion pump for administering small volumes of drugs, infusion and nutritional solutions. The Spaceplus Perfusor® pump meets all safety standards for electronic medical devices according to IEC/EN 60601-1 and IEC/EN 60601-2-24. It can be used individually or in combination with the B. Braun Space, made for housing the Space family of pumps in an infusion station that provides power and data transmission, if applicable, of infusion therapy information. Benefits

- Intuitive and standardized user interface for both B pumps. Braun Space
- Automatic calculation of infusion rate based on volume and duration
- Automatic calculation of infusion rate based on drug concentration and desired dosage
- Battery autonomy Approx. 11 h with WiFi on and0 13 h with WiFi off

Drug Archive

- Up to 10,000 drugs, including therapy data, can be stored in 30 categories
- Specific infusion limits and standard infusion values can be described for each drug

Safety features

- Built-in safety device in the pump and infuser for maximum protection against free flow when opening the pump door, or when removing the infuser
- Automatic bolus reduction following occlusion alarm. Additional pressure sensor checks for upstream occlusions (e.g., closed roller clamp)
- Data lock (parameter lock and/or disposable devices) on 3 levels of security
- Alarm with error messages on display

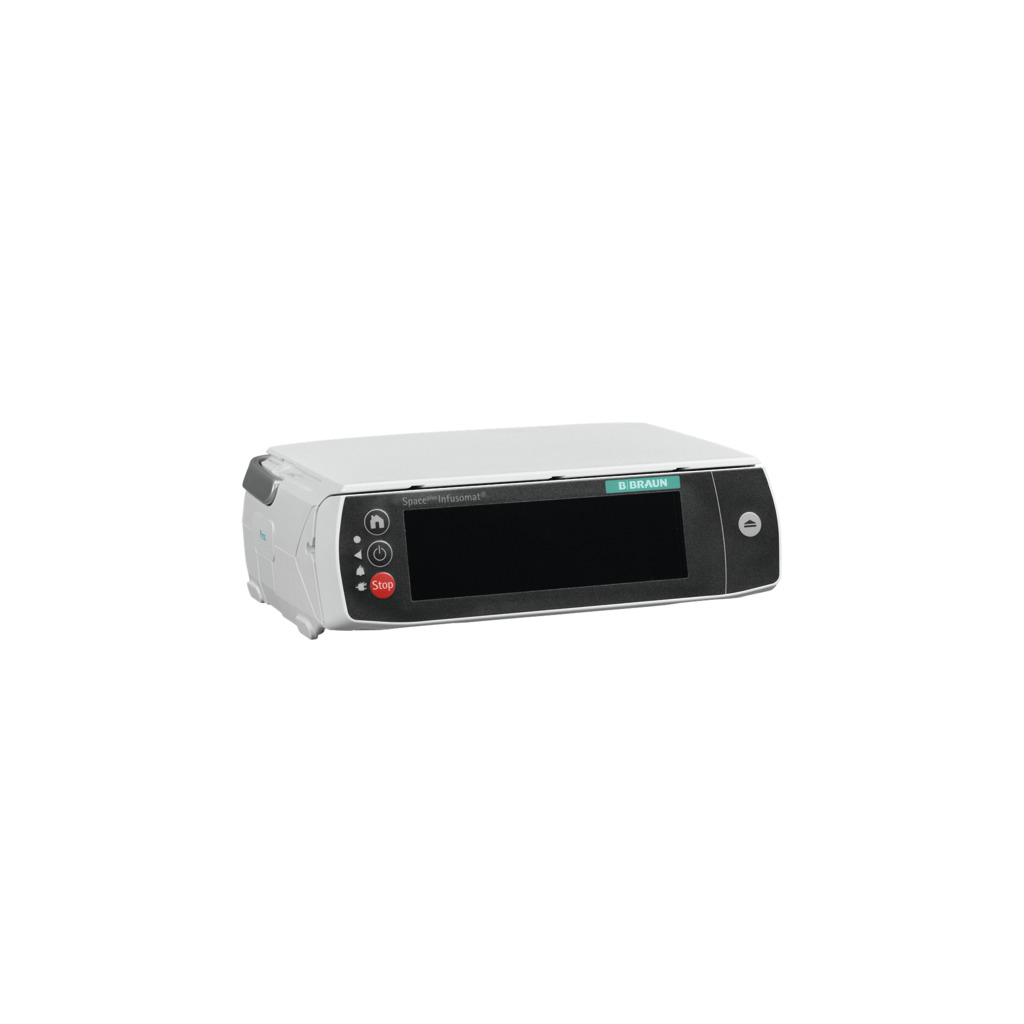

Transportable peristaltic infusion pump for administering small volumes of drugs, infusion and nutritional solutions. The Spaceplus Infusomat® pump meets all safety standards for electronic medical devices according to IEC/EN 60601-1 and IEC/EN 60601-2-24. It can be used individually or in combination with the B. Braun Space, made for housing the Space family of pumps in an infusion station that provides power and data transmission, if applicable, of infusion therapy information. Benefits

- Intuitive and standardized user interface for both B pumps. Braun Space
- Automatic calculation of infusion rate based on volume and duration
- Automatic calculation of infusion rate based on drug concentration and desired dosage
- Battery autonomy Approx. 11 h with WiFi on and0 13 h with WiFi off

Drug Archive

- Up to 10,000 drugs, including therapy data, can be stored in 30 categories
- Specific infusion limits and standard infusion values can be described for each drug

Safety features

- Built-in safety device in the pump and infuser for maximum protection against free flow when opening the pump door, or when removing the infuser
- Automatic bolus reduction following occlusion alarm. Additional pressure sensor checks for upstream occlusions (e.g., closed roller clamp)
- Data lock (parameter lock and/or disposable devices) on 3 levels of security
- Alarm with error messages on display

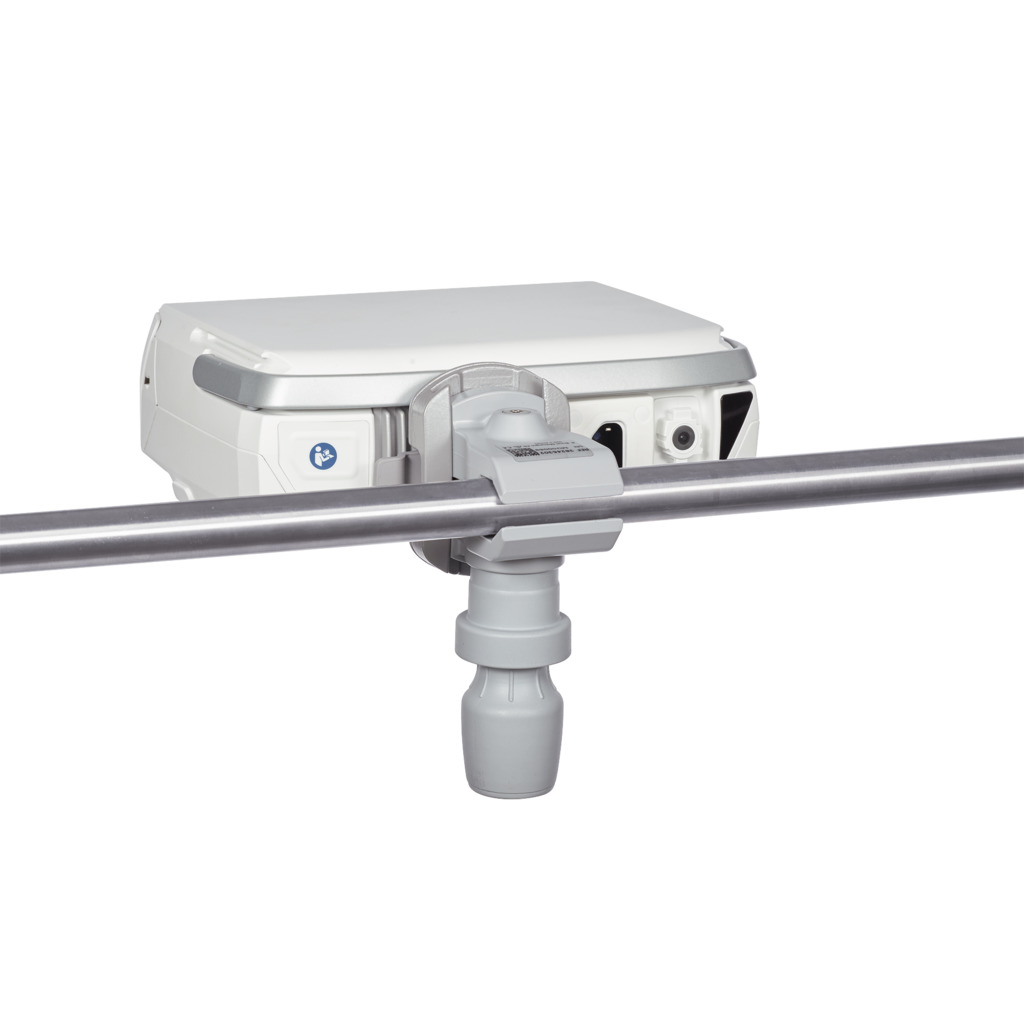

Handle for carrying and supporting SpacePlus Infusomat®, SpacePlus Perfusor® pumps single or up to three stacked and mutually attached.
Through the swivel coupling, it is easily adaptable to tubular supports between 16 and 40 mm in diameter, as well as horizontal bars in accordance with EN1789

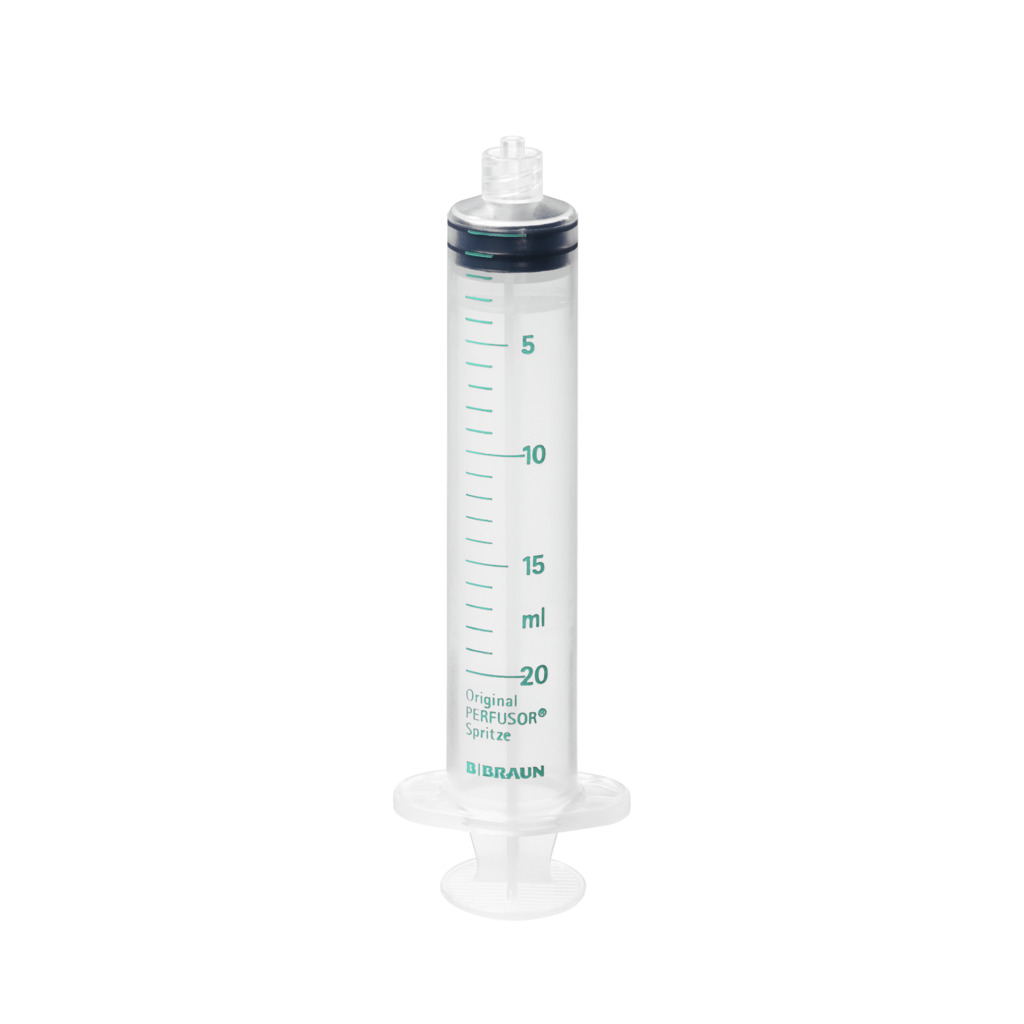

Infusion and irrigation syringes with Luer-Lock cone, three-piece, with and without needle, for administration through the use of electronic pump or in manual form of drugs, infusion solutions, nutritional solutions and contrast media.

- High transparency of the syringe body
- Permanent, high-contrast, double graduated scale in ml for excellent visibility when allocated inside the pump
- Central luer lock cone for connection to a needle or other medical device (outflow device)
- Oval syringe body base to optimize dexterity and prevent syringe rotation
- Safe plunger backstop to prevent unintended plunger removal from the syringe body
- Plunger equipped with double silicone ring for smooth aspiration and infusion of infusion solutions
- Minimal residual volume Constituent materials
- Cylinder: polypropylene (PP)
- Plunger: polyethylene (PE)
- Plunger of latex-free synthetic material
- Non-toxic opacifying pigment
- Lubricant: silicone oil for medical use. As per ISO 7886-1 paragraph 8 (1993) the lubricant content does not exceed 0.25 mg/cm 2 of the inner surface of the syringe barrel itself
-PVC-free, Latex-free, Apirogen-free
- Inks and materials used for printing labels or stamping on fittings, tubes, catheters, etc., are absolutely non-toxic.

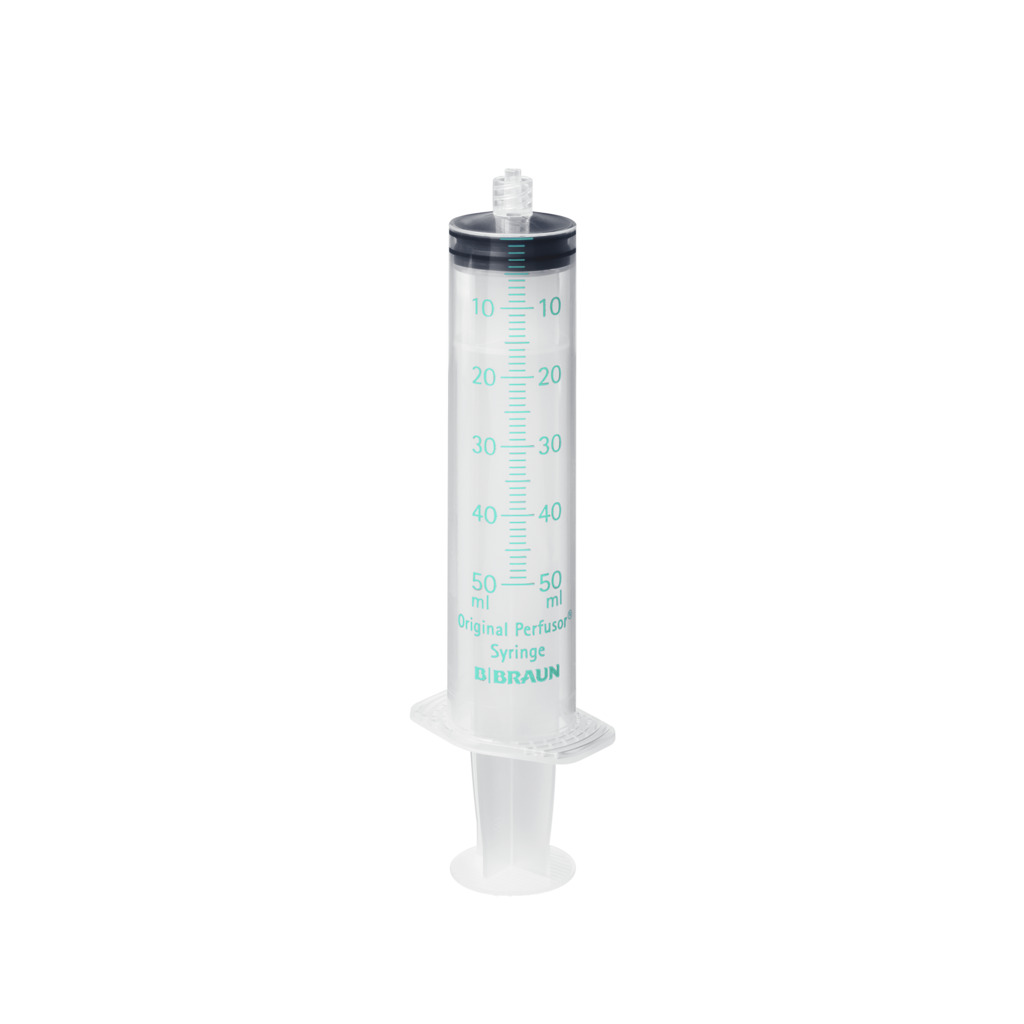

Infusion and irrigation syringes with Luer-Lock cone, three-piece, with and without needle, for administration through the use of electronic pump or in manual form of drugs, infusion solutions, nutritional solutions and contrast media.

- High transparency of the syringe body
- Permanent, high-contrast, double graduated scale in ml for excellent visibility when allocated inside the pump
- Central luer lock cone for connection to a needle or other medical device (outflow device)
- Oval syringe body base to optimize dexterity and prevent syringe rotation
- Safe plunger backstop to prevent unintended plunger removal from the syringe body
- Plunger equipped with double silicone ring for smooth aspiration and infusion of infusion solutions
- Minimal residual volume Constituent materials
- Cylinder: polypropylene (PP)
- Plunger: polyethylene (PE)
- Plunger of latex-free synthetic material
- Non-toxic opacifying pigment
- Lubricant: silicone oil for medical use. As per ISO 7886-1 paragraph 8 (1993) the lubricant content does not exceed 0.25 mg/cm 2 of the inner surface of the syringe barrel itself
-PVC-free, Latex-free, Apirogen-free
- Inks and materials used for printing labels or stamping on fittings, tubes, catheters, etc., are absolutely non-toxic.

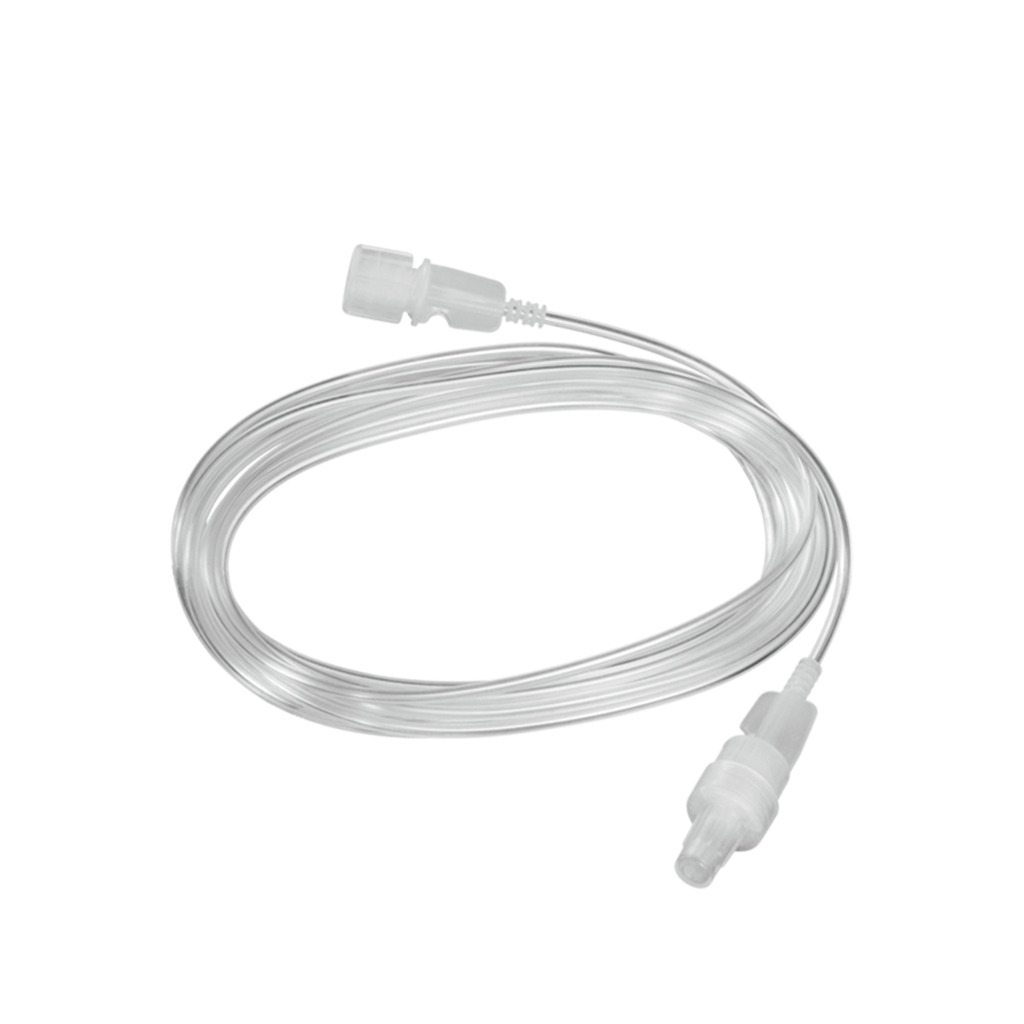

Perfusor® sets are low residual/fill volume extension tubing specifically intended for use with all syringe infusion pumps, for infusion of drugs, infusion solutions, nutritional solutions and contrast media. Luer-Lock Connections Composition:

- Tubing: polyvinyl chloride (PVC) DEHP-free or polyethylene (PE), Latex-free
- Luer-lock fittings: acrylonitrile-butadiene-styrene (ABS)
- Other materials used for protective caps, fittings, regulators, clamps, etc.: PP, PS,PE, SB, ASA

Perfusor® sets are low residual/fill volume extension tubing specifically intended for use with all syringe infusion pumps, for infusion of drugs, infusion solutions, nutritional solutions and contrast media. Luer-Lock Connections Composition:

- Tubing: polyvinyl chloride (PVC) DEHP-free or polyethylene (PE), Latex-free
- Luer-lock fittings: acrylonitrile-butadiene-styrene (ABS)
- Other materials used for protective caps, fittings, regulators, clamps, etc.: PP, PS,PE, SB, ASA
